Tietzsch MultiSafe DSP 3 Bedienungsanleitung Seite 12

2

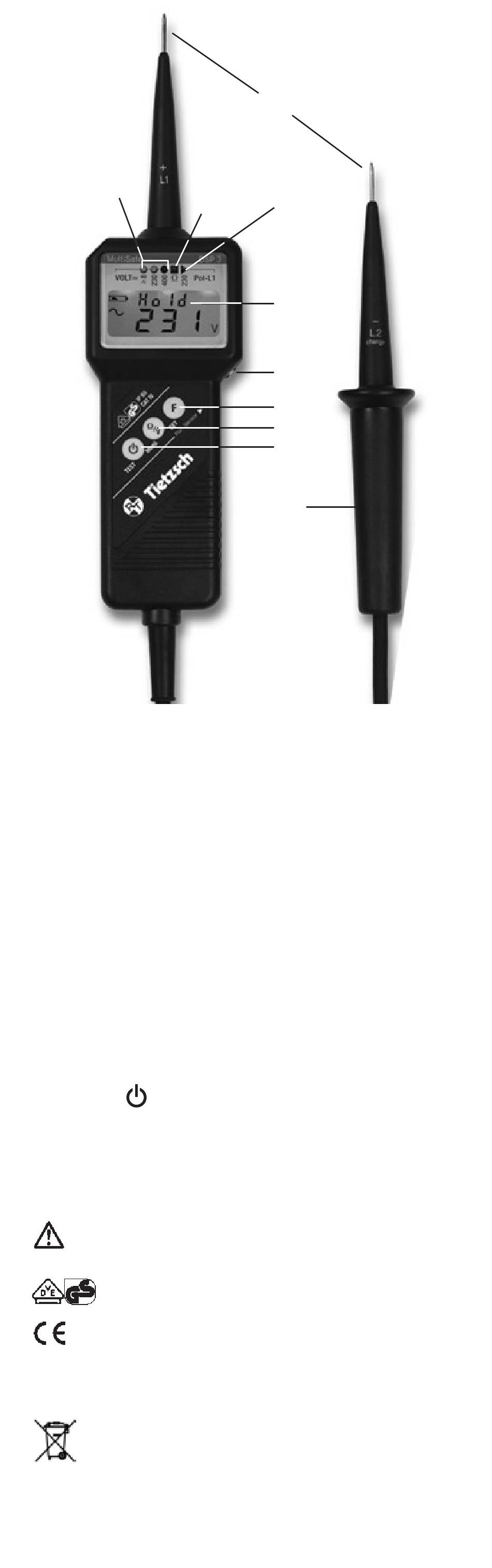

1 Test electrodes
2 LEDs „VOLT" (red): for voltage tests
≥ 8 V, 230 V, 400 V
3 LED „Ω" (green): lights up during resistance
measurements between 0 ... 5999 kΩ
(acoustic signal signalizes continuity)
4 LED „Pol-L1" : for phase + rotating field
5 Display (LCD)
6 Accessible electrode „Pol-L1-Sensor"
7 Button F: function HOLD, rotating field without
accessible electrode or frequency measurement
8 Button Ω/V: change-over switch for
resistance and voltage measurements and
menu
9 Button
functions test
10 Handgear L2
Symbols on the instrument
Attention! Observe user instructions!
Mark of approval from VDE test authority
Indicates EC conformity
ED
Duration time for voltage testing
WEEE 2002/96 EG:
This devices may not be disposed with the
domestic waste.
Please contact service@tietzsch.de regards the
return of old devices.
12
3
: switch on/off (manual) and
1
4
5
6
7
8
9
10
