Montageanleitung
Mounting instructions
Instructions de montage
Инструкция по монтажу
11
10
6
230V
10
230V
25
8
t 40°C
1
13
Avoid any feed pipe connection! If absolutely necessary, protect the feed line with a heating cable.
Observe DIN 1988 / DIN EN 1717 and local norms.
Delivery scope
pos. 1
Heating unit
pos. 2
Circulation pump 230 V
pos. 3
Non-return valve for water connection
pos. 4
Adjustable thermostat
pos. 5
Non-return flap
pos. 6
Pressure relief valve 6 bar
pos. 7
Automatic vent valve
pos. 8
Security thermostat (fixed adjustment)
pos. 9
Controller
pos. 23
Heating element
pos. 25
Water level indicator
1. Main switch in 0 = OFF position (pos. 9)
2. Fill the container (pos. 1) with clean water. For this purpose unscrew (only at the hexagon steel plate) the heating element (pos. 23)
and fill the water into the free opening until you notice the level on the water level indicator (pos. 25). Then screw back the heating
element (tighten it by hand).
3. Fill water circuit with water
4. Bleed the pump (pos. 2) and the water circuit over the shut-off valve for manual ventilation (pos. 12). Check that by-pass line is
closed and that water circuit runs through the heating unit!
5. Remaining air bubbles will automatically escape through the automatic vent valve (pos. 7)
6. Main switch in 1 = ON position (pos. 9)
7. Circulation pump is switched on. Heating element is ready to work.
8. Repeat point 4. Attention: when bleeding, hot water can escape!
9. Adjust the necessary return flow temperature at thermostat pos. (4). Control-light at the heating element illuminates only if the
heating element is heating. Factory adjustment +10°C.
30.10.2017 · Technische Änderungen vorbehalten · Technical data can be changed without prior notice · Des changements techniques reservés · Мы оставляем за собой право на технические изменения и
дополнения, а также возможные опечатки. · 104.8116

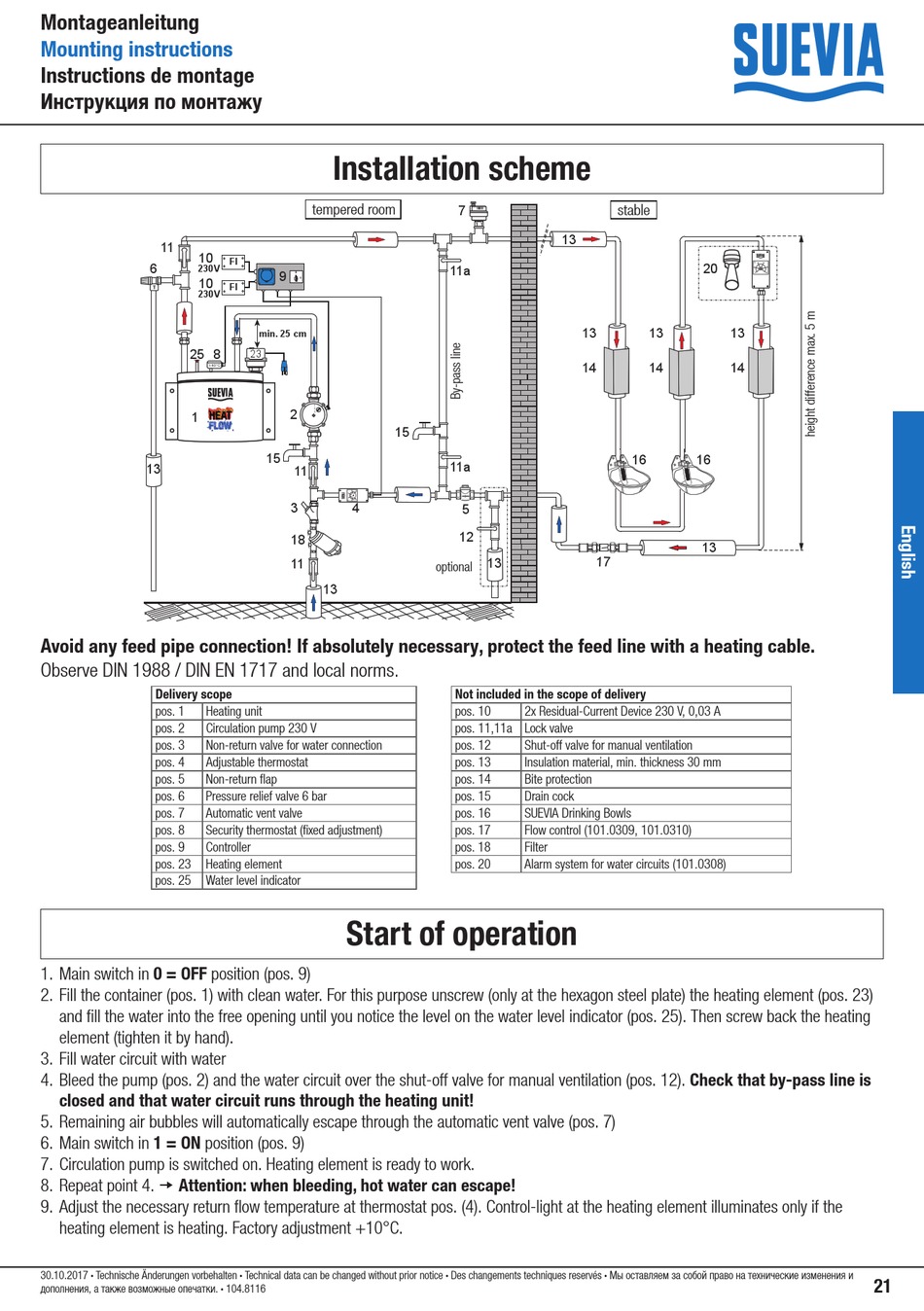

Installation scheme
tempered room
FI
9
FI
min. 25 cm
23
1
2
2
3
15
15
11
3
4
18
11
13
Start of operation
7
13
11a
13
14
11a
5
12
13
optional
Not included in the scope of delivery
pos. 10
2x Residual-Current Device 230 V, 0,03 A
pos. 11,11a Lock valve
pos. 12
Shut-off valve for manual ventilation
pos. 13
Insulation material, min. thickness 30 mm
pos. 14
Bite protection
pos. 15
Drain cock
pos. 16
SUEVIA Drinking Bowls
pos. 17
Flow control (101.0309, 101.0310)
pos. 18
Filter
pos. 20
Alarm system for water circuits (101.0308)
stable
20
13
13
14
14
16
16
13
21
