Spare Parts; Mounting Instructions - SUEVIA HEATFLOW MINI Montageanleitung

0
0
1
1
102.1586
102.0877
102.0876
102.1381
30.10.2017 · Technische Änderungen vorbehalten · Technical data can be changed without prior notice · Des changements techniques reservés · Мы оставляем за собой право на технические изменения и
16
дополнения, а также возможные опечатки. · 104.8116

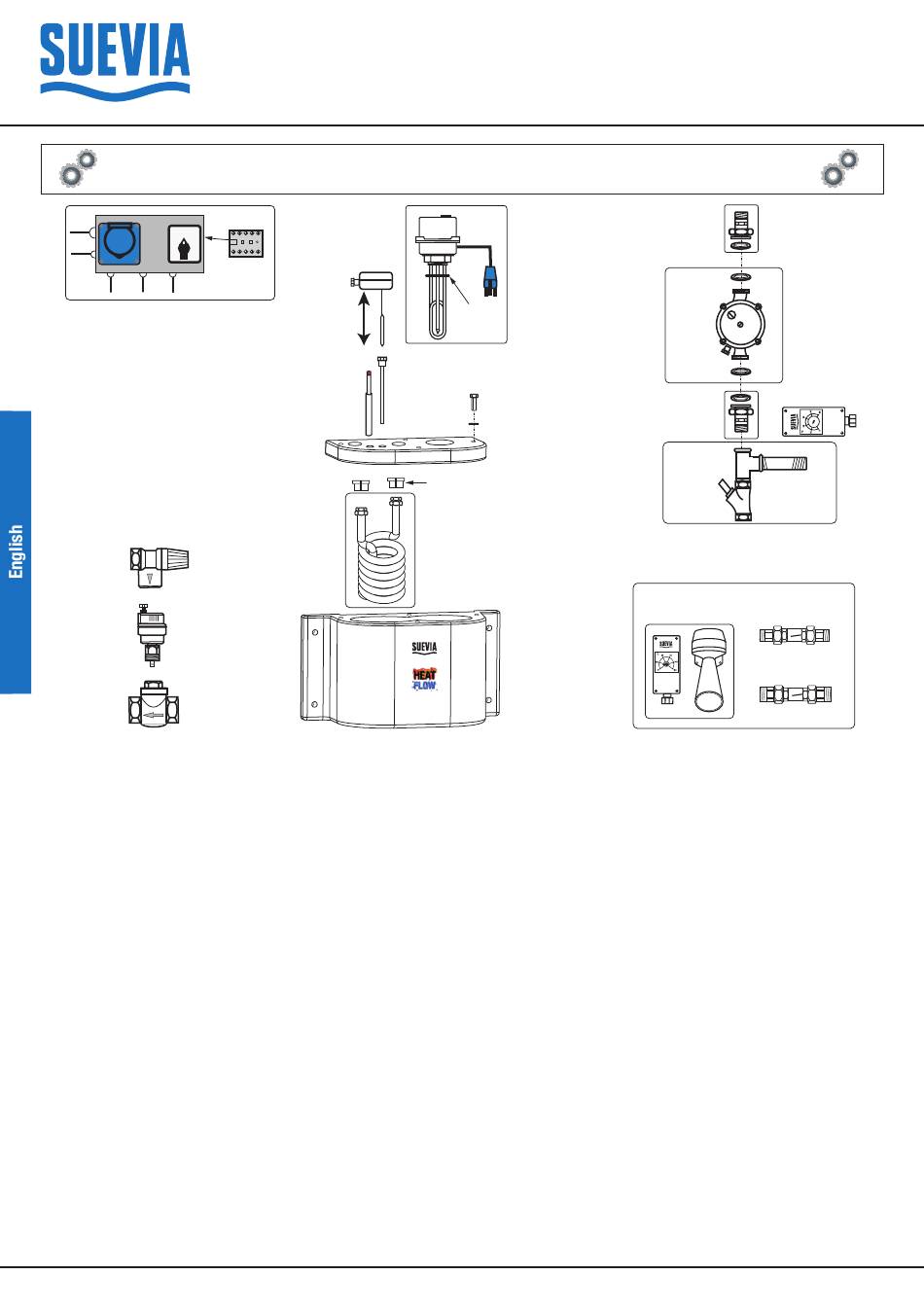

Spare Parts

102.1393
102.1293
102.1231
20 cm
102.1272
102.1286
102.0775
102.1471
102.1472
102.1588
102.1585
102.1587
102.1589
Ref. Description
101.0308 Alarm system for water circuits
101.0309 Flow control ¾"
101.0309 Flow control 1"
102.0775 Sealing
102.0780 Non-return valve ¾" brass with bevel seat
102.0784 Brass T-piece ¾" f/f/m
102.0846 Brass Union 1¼" x ¾" with sealing
102.0876 Brass vent valve (automatic)
102.0877 Brass pressure relief valve (automatic)
102.1127 Stainless steel barrel nipplel ¾"
102.1166 Flat seal for brass coupling
102.1230 Thermostat sensor adjustable, with fixing clip
102.1231 Security thermostat +40°C fixed adjustment, with clip
102.1272 Security cap 200 mm for thermostat
102.1286 Water level indicator
102.1293 Heating element 230 V with O-ring 1020775
102.1374 Circulation pump 230 V, 93 W, with 2 sealings
102.1381 Non-return flap ¾" brass
102.1393 Relay for controller
102.1427 Connection set line in
102.1471 Hexagon screw M8x60 stainless steel
102.1472 Washer A8,4 (M8) A2 stainless steel
102.1585 Plug
102.1586 Controller for HEATFLOW MINI, cpl. with electric cable
102.1587 Corrugated pipe in stainless steel
102.1588 Cover for HEATFLOW MINI
102.1589 Lower part HEATFLOW MINI with inlay nuts
Montageanleitung

Mounting instructions

Instructions de montage
Инструкция по монтажу
102.0846
102.1166
1¼"
1
102.1374
2
3
1¼"
102.1166
102.0846
102.0784
102.1427
102.1127
102.0780
Zubehör • Accessories • Accessoires
101.0308 101.0309
¾"
°C
20 30
40
10
0 50
101.0310
1"
102.1230
¾"
1"
