Stromversorgung 3 842 559 - Bosch Rexroth ActiveMover Montageanleitung

Linearantriebssystem
Inhaltsverzeichnis

Werbung

A:
Gehäuse
B:
Steckverbinder
(230 V AC)
C:
Alternativer
Steckverbinder
(230 V AC)
D:
Ausgang Anschluss
SPS Überwachung
(24 V DC)
E:
Filter
F:
Befestigungsplatte
G:
Befestigungswinkel
H:
Anschlusskabel (0 V,
28 V DC)
5.2.11

Stromversorgung 3 842 559 435

C
D
G
F
H

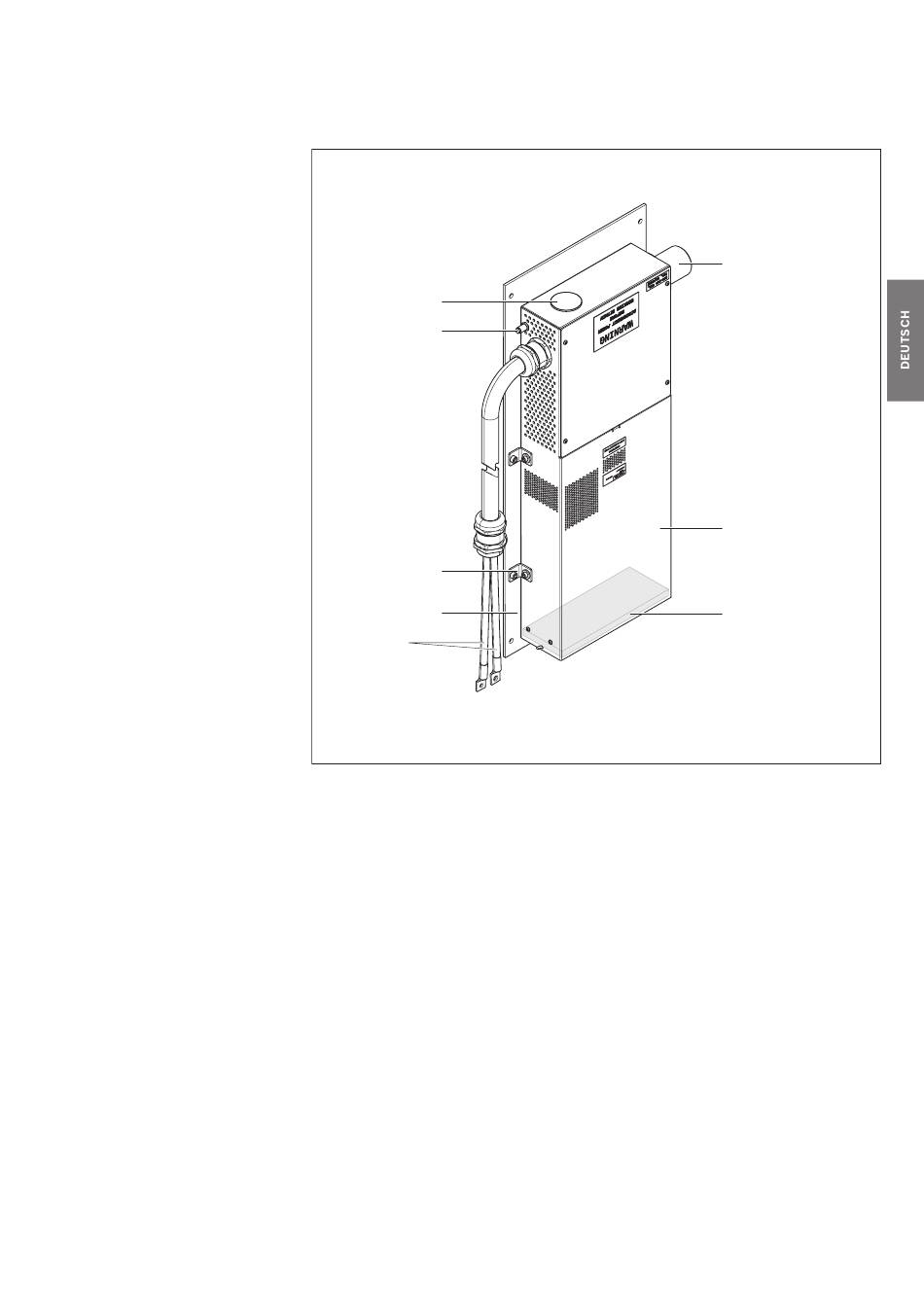

Abb. 20:
Stromversorgung
Zu diesem Produkt
3 842 557 186/2018-07, MIT: ActiveMover, Bosch Rexroth AG
41/172
B
A
E
557 186-20
