Modulhalter 3 842 559 429 - Bosch Rexroth ActiveMover Montageanleitung

Linearantriebssystem
Inhaltsverzeichnis

Werbung

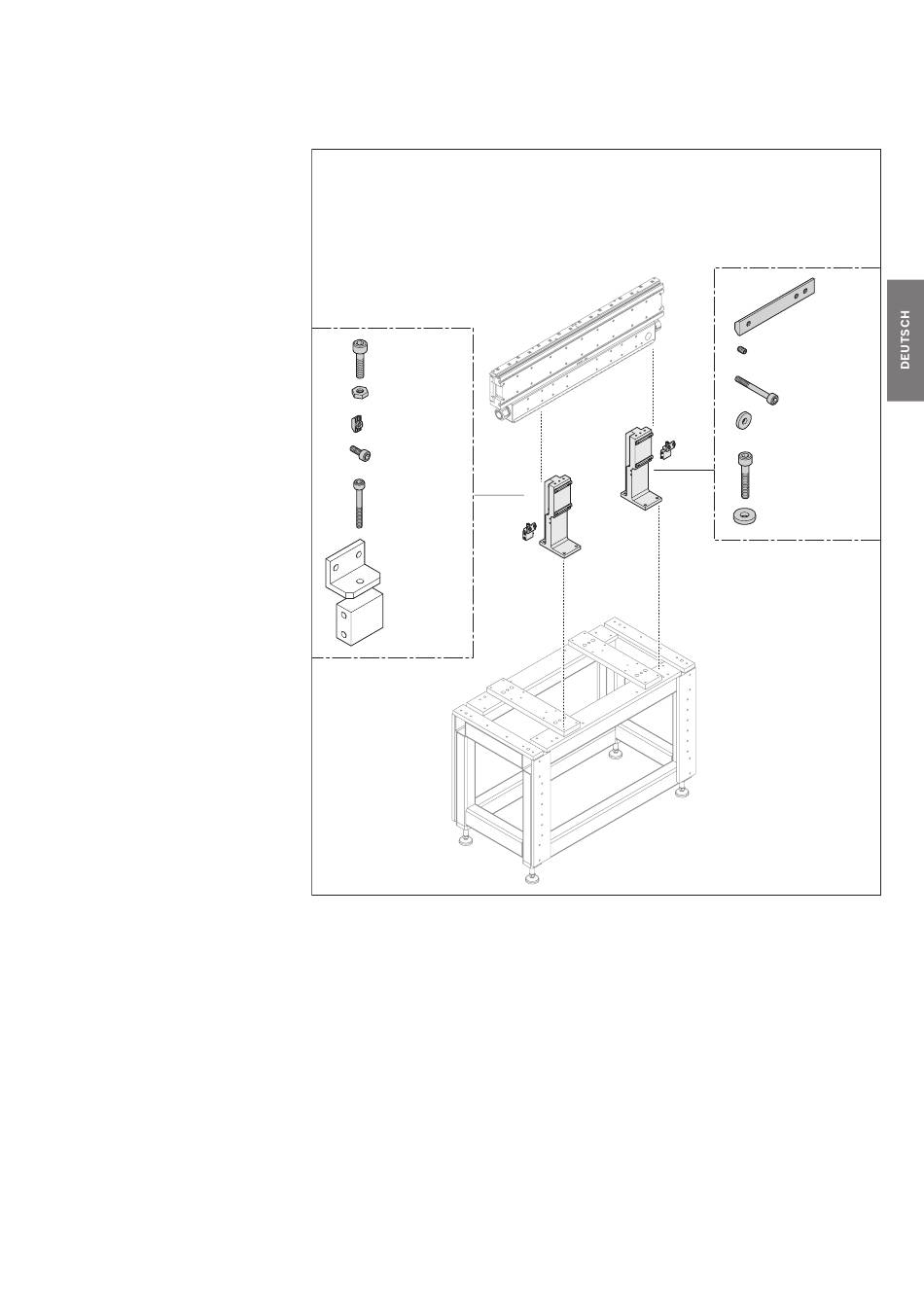

Modulhalter zur Montage
eines Streckenmoduls
3 842 559 426 auf
einem Verbindungssatz
3 842 559 454.
Modulhalter (2x)
A:
B:
Höhenverstellung (2x)
Halter (2x)
C:
Befestigungswinkel
D:
(2x)
Einstellschraube (2x)
E:
Nutensteine (4x)
F:
G:
Gewindestifte (4x)
5.2.6

Modulhalter 3 842 559 429

E
2 x
M8 x 30
2 x
M8
4 x
8 mm
4 x
M6 x 16
4 x
M6 x 45
D
2 x
2 x
C
Modulhalter 3 842 559 429
Abb. 7:
Zu diesem Produkt
A
B
3 842 557 186/2018-07, MIT: ActiveMover, Bosch Rexroth AG
23/172
F
4 x
4 x
G
M6 x 8
8 x
M6 x 45
8 x
M6
8 x
M8 x 40
8 x
M8
557 186-07
