6.6 labeling of the tube valve body
(Vp)
Material
1.4435
316L(VP)
Pressure stage
PN16 / CWP150
XXXXXXXXXX
Production number
order number / Serial
number
XXXXXXXX / XXX
XXXX / XXXXXX

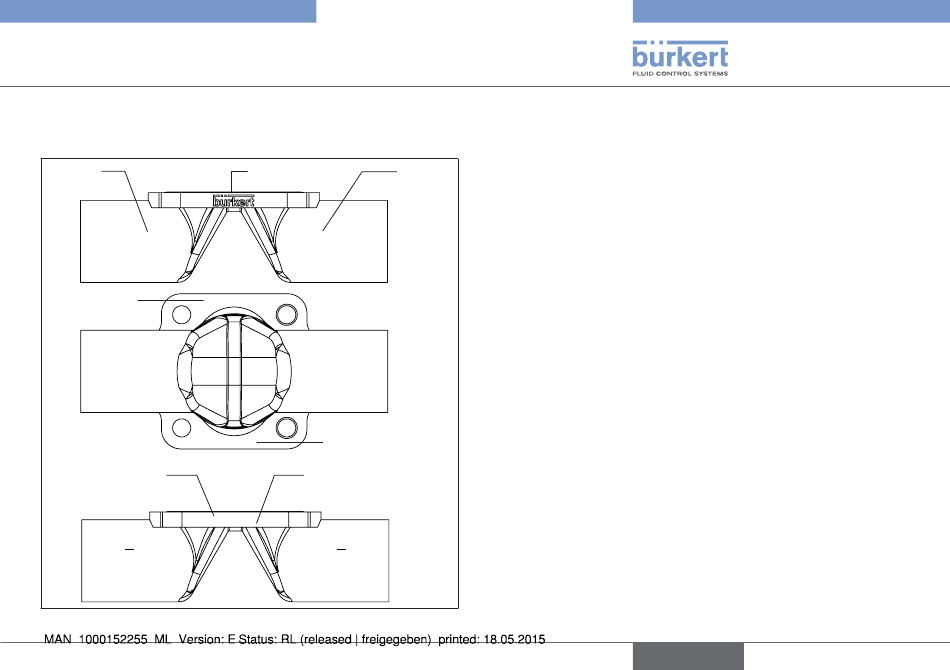

Fig. 4:

Labeling of the tube valve body (VP)

Company logo Heat
XXXXXXXX
Connection orifice
and pipe dimensions
Surface quality code /
Customer-specific text
(optional)
6.7 general technical data
materials
Body Tube valve body (VA, VP),
Precision casting (VG), Forged steel (VS), PP,
PVC, PVDF
Actuator Handwheel and attachment PPS
Handwheel PPS and attachment stainless
steel
Handwheel and attachment stainless steel
DN65 to DN100
Diaphragm EPDM, PTFE, FKM
connections
Medium connection Welded connection according to DIN EN
1127 (ISO 4200), DIN 11850 series 2,
DIN 11866 (ASME-BPE 2005)
other connections on request
media
Flow media Type 3232; contaminated, aggressive,
ultrapure, sterile media and media with higher
viscosity
installation position
In any position, floor drain valve type 3235;
actuator face down
