Type 3232, 3233, 3233 K, 3234,
3235, 3239

Spare parts, Accessories

10.2.1 Tightening torques for diaphragms
Orifice
diaphragm
(diaphragm size)
epdm / fKm
dn [mm]
8
15
20
25
32
40
50
Tab. 11: Tightening torques for diaphragms, actuator PPS or
stainless steel
Orifice
diaphragm
(diaphragm size)
epdm / fKm
dn [mm]
65
80
100
Tab. 12: Tightening torques for diaphragms, actuator stainless steel
actuator pps or stainless steel
diaphragm
ptfe/advanced
ptfe/laminated
advanced ptfe
2 2,5
3,5 4
4 4,5
5 6
6 8
8 10
12 15
actuator stainless steel
diaphragm
ptfe/advanced
ptfe/laminated
advanced ptfe
20 30
30 40
40 50
11 spare parTs, accessOries
Caution!
risk of injury and/or damage by the use of incorrect parts.
Incorrect accessories and unsuitable spare parts may cause injuries
and damage the device and the surrounding area.
▶ Use only original accessories and original spare parts from
Bürkert.
The following spare parts are available for the manually actuated
diaphragm valves type 3232, 3233, 3233 K, 3234, 3235 and 3239:
• Manual actuator complete,
• Diaphragm.

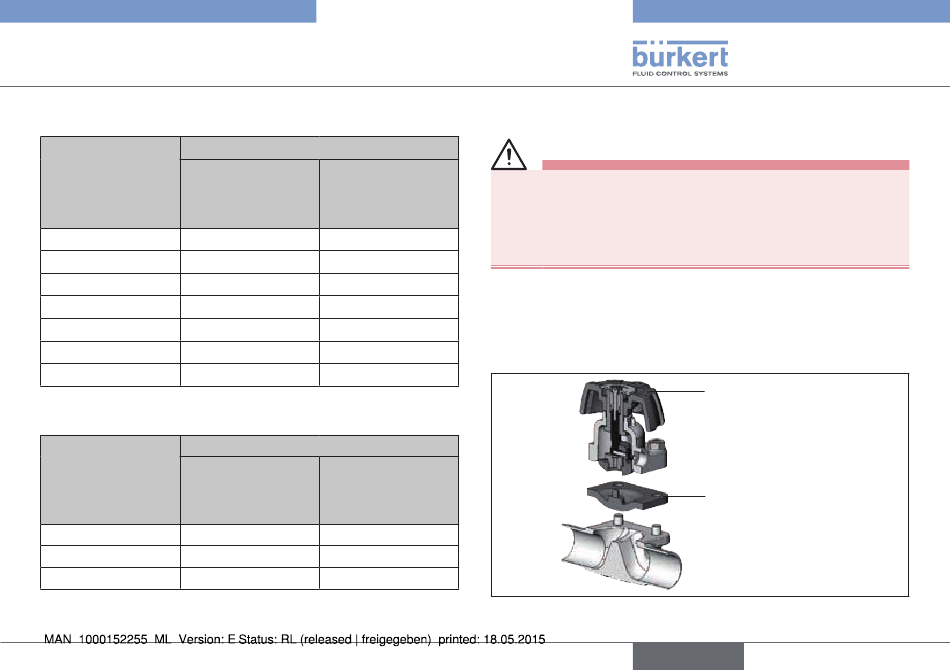

Fig. 12: Spare parts
english
Manual actuator
Diaphragm
