Installation Instructions:

Step 1:

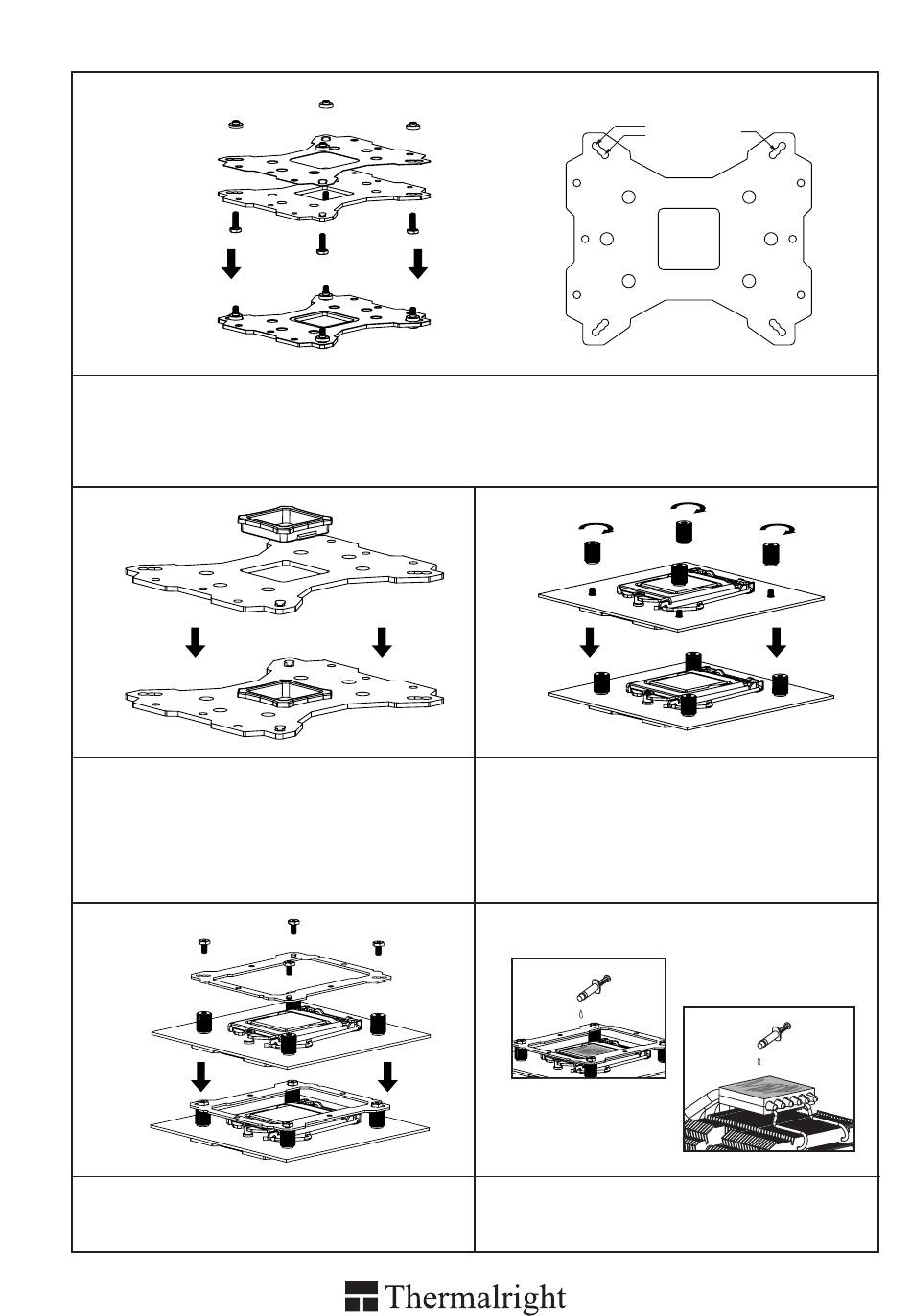

Step 1 : Backplate Installation
Choose the platform (775/1150/1151/1155/1156/1366) you are in use. Make four M3L10 Screw
Pillars go through the Metal Back Plate and the Mylar f lm from bottom towards top.And then place the
Metal Back Plate on the table. Put the four Washers (for Intel) around the Screw Pillars.
Step 2:
Step 2 : Back Plate Cap
Note: When installing on a 775 platform, please
first insert the Back Plate Cap into the opening
on the Back Plate. Make sure you have the Cap
facing downwards. (Only for 775).
Step 4:
Step 4 : Place the Anchoring Mount on the
Screw Nuts. Use the four M3L6 Screws to fix
the Anchoring Mount on to the Screw Pillars.
3
1366
775
Step 3:
Step 3 : Place the motherboard on top of the Back
Plate. See the four Screw Pillars go through the
four holes around the processor socket.Cap the
four Screw Pillars with the four Screw Nuts.Make
sure the side with a washer is facing the Back
Plate.
Step 5:
Step 5 : Applying Thermal Paste
Apply the Chill Factor III to the base of the
Heatsink and the surface of the CPU evenly.
115x
