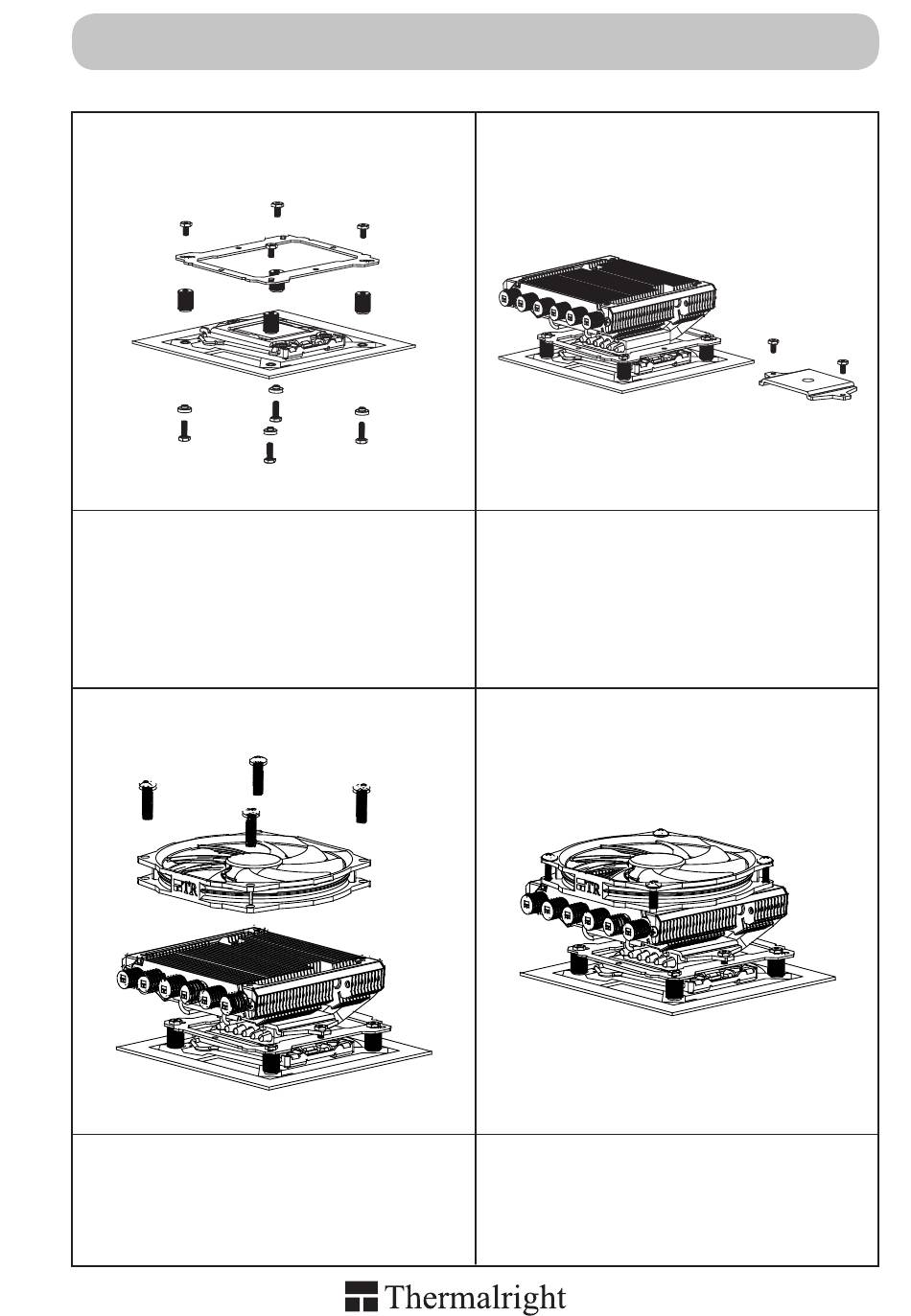

Installing Your AXP-100R Without a Back Plate
Step1:
Step 1: Pass the M3L10 Screws through the
Small Intel Washers then place through your
motherboard. Screw the Screw Nuts onto the
M3L10 Screws. Place the Anchoring Mount on
the Screw Nuts, then use the four M3L6 Srews to
fix the Anchoring Mount on to the Screw Nuts.
Step 3:
Step 3: Place the TY-100R Fan onto the Heatsink
Body. And then secure it by screwing on
the four M3L17 Screws through the fan's
mounting hole.
53
Step 2:
Step 2: Apply Thermal Paste to your cooler and
the CPU. Pass the Mounting Plate through the
cooler and screw on the two M3L6 Screw.
Step 4:
Step 4: Plug in the fan connector to the
CPU PWM Fan socket on the motherboard.
Installation Complete.
