Installation Instructions:
Step 1:

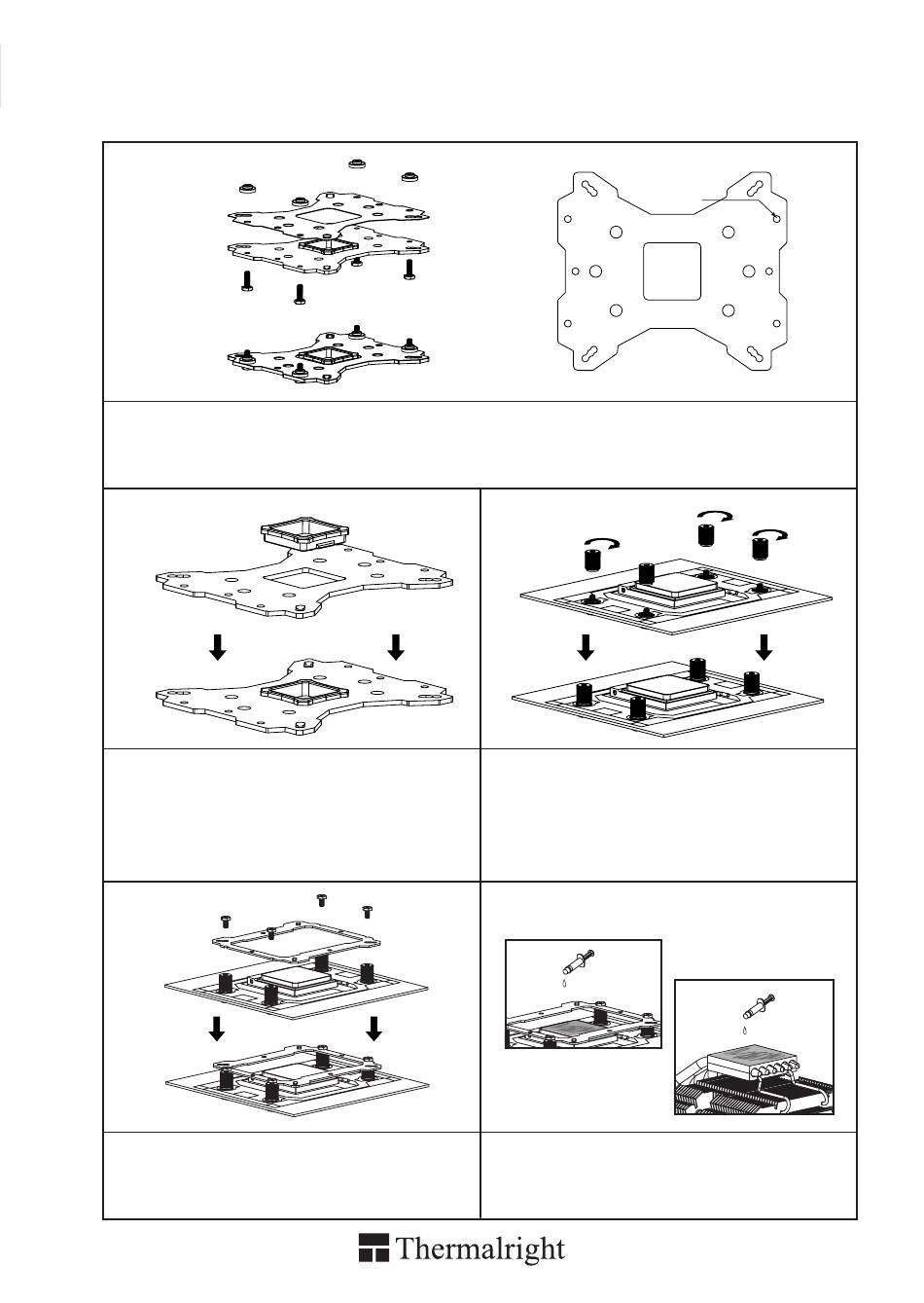

Step 1 : Backplate Installation
Choose the platform (AMD) you are in use. Make four M3L10 Screw Pillars go through the Metal Back
Plate and the Mylar film from bottom towards top. And then place the Metal Back Plate on the table. Put
the four Washers (for AMD) around the Screw Pillars.
Step 2:
Step 2 : Back Plate Cap
Note: When installing on a 939 platform, please
first insert the Back Plate Cap into the opening on
the Back plate. Make sure you have the Cap
facing downwards. (Only for 939).
Step 4:
Step 4 : Anchoring Mount Installation
Place the Anchoring Mount on the Screw Nuts.
Use the four M3L6 Screws to fix the Anchoring
Mount on to the Screw Pillars.
11
Step 3:
Step3 : Place the motherboard on top of the Back
Plate. See the four Screw Pillars go through the
four holes around the processor socket.Cap the
four Screw Pillars with the four Screw Nuts.Make
sure the side with a washer is facing the Back
Plate.
Step 5:
Step 5 : Applying Thermal Paste
Apply the Chill Factor III to the base of the
Heatsink and the surface of the CPU evenly.
AMD
