Installation Instructions:

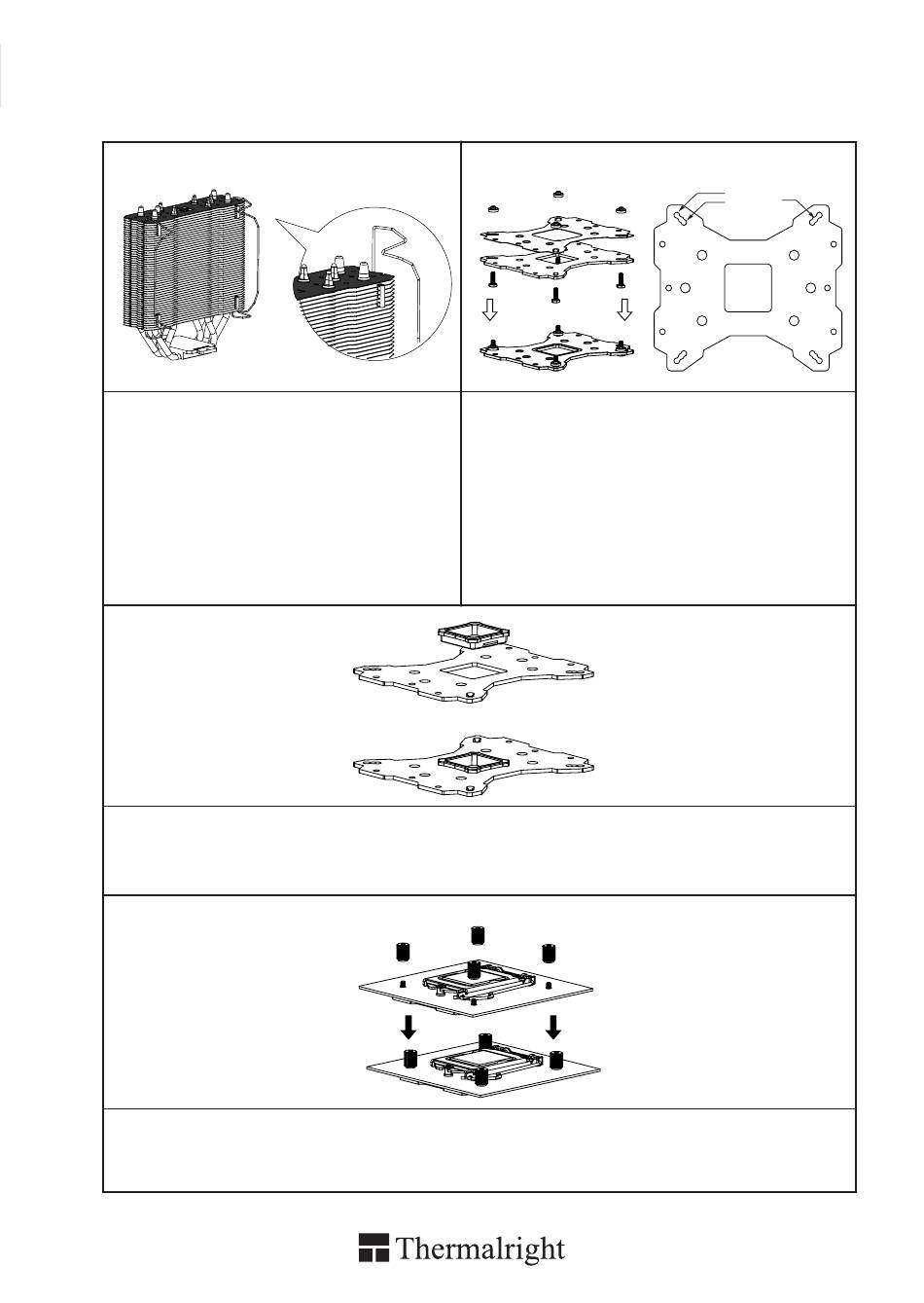

Step 1:
Step1 : Part Installation
Take out TS-140 Direct heat-sink from the
color box . Pull both ends of the Fan clip and
make them go through holes on the corners
of the heat-sink. (As shown in the picture.)
Repeat for the other fan clip. Leave both fan
clips on the heat-sink body for fan installation
later on . Insert the four black Rubber Tubes
(Noise damping use) into the four indents on
the front of the heat-sink body. Do not remove
them.
Step 3:
Step 3 : 775 Back Plate Cap
Note: When installing on a 775 platform, please first insert the Back Plate Cap into the opening on
the Back plate, make sure you have the Cap facing downwards. (Only for LGA775 platform, all other
platforms go directly to Step 4.).
Step 4:
Step 4 : Screw Cylinder Installation
Place the motherboard on top of the Back Plate. See the four Screw Pillars go through the four holes
around the processor socket.Cap the four Screw Pillars with the four Screw Nuts.Make sure the side
with a washer is facing the Back Plate.
3
Step 2:
Step 2 : Backplate Installation
Choose the platform (775/1150/1151/1155/1156/1366)
you are in use. Make four M3L10 Screw Pillars go
through the Metal Back Plate and the Mylar film from
bottom towards top.And then place the Metal Back
Plate on the table. Put the four Washers (for Intel)
around the Screw Pillars.
4
1
2
3
1150
1366
1151
775
1155
1156
