Step 6:

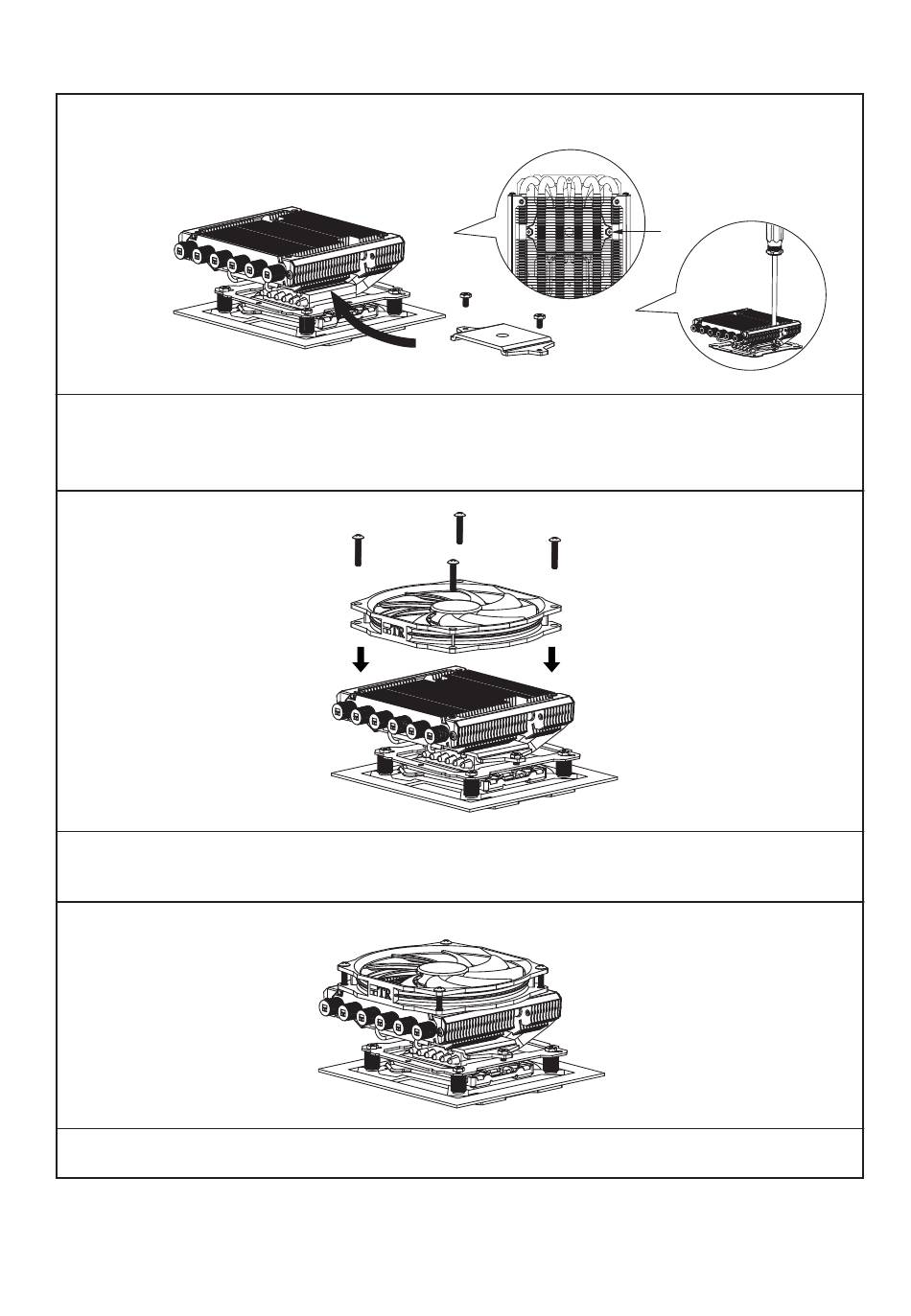

Step 6 : Mounting Plate Installation.
Place the Heatsink Body on top of the CPU. Make the Mounting Plate go through the Heatsink Body.
Then use the two M3L6 screws to secure the Mounting Plate.
(Screwdriver goes through holes on fins)
Step 7:
Step 7 : Fan Installation
Place the included TY-100R Fan onto the Heatsink Body. And then secure it by scewing on the four
M3L17 Screws, though the fan's mounting hole.
Step 8:
Step 8 : Installation Completed
Plug in the fan connector to the CPU PWM Fan socket on the motherboard. Installation complete.
