Installation Instructions:

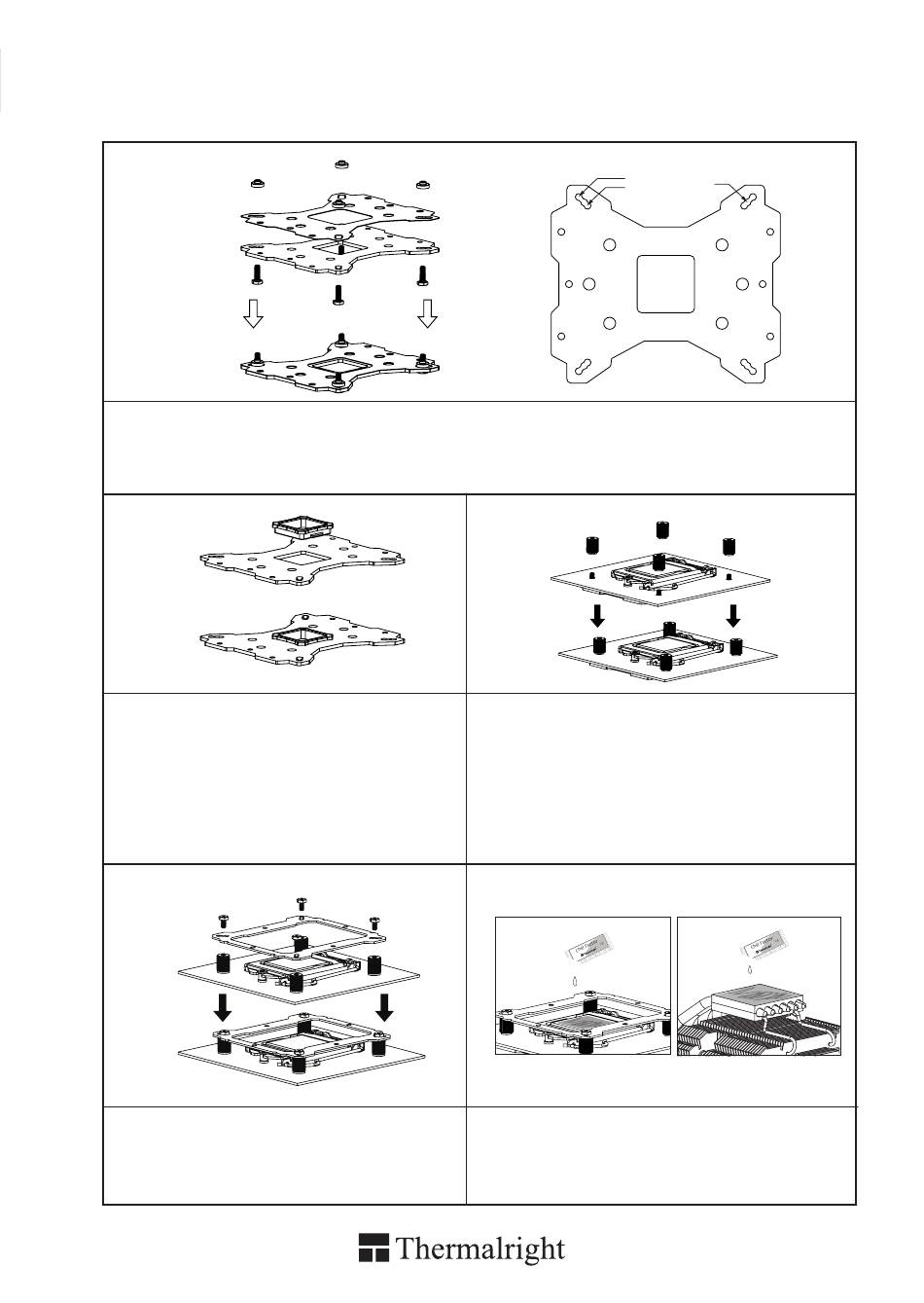

Step 1:
Step 1 : Backplate Installation
Choose the platform (775/1150/1151/1155/1156/1366) you are in use. Make four M3L10 Screw Pillars
go through the Metal Back Plate and the Mylar film from bottom towards top. And then place the Metal
Back Plate on the table. Put the four Washers (for Intel) around the Screw Pillars.
Step 2:
Step 2 : 775 Back Plate Cap
Note: When installing on a 775 platform, please
first insert the Back Plate Cap into the opening
on the Back plate, make sure you have the Cap
facing downwards. (Only for LGA775 platform,
all other platforms go directly to Step 3.).
Step 4:
1
Step 4 : Place the Anchoring Mount on the
Screw Nuts. Use the four M3L6 screws to fix
the Anchoring Mount on to the Screw Nuts.
3
4
2
3
1366
775
Step 3:
1
Step 3 : Install the four screw pillars.
Take one M3L10 screw and put one washer for
Intel around the screw pillar. Snap it through
one of holes around CPU socket from bottom
towards top. Cap the screw pillar with the screw
nut included and then tighten up. Now repeat
this installation for the other three screw pillars
in a criss-cross pattern.
Step 5:
Step 5 : Applying Thermal Paste
Apply the Chill Factor to the base of the Heatsink
and the surface of the CPU evenly.
1150
1151
1155
1156
4
2
3
