e) Connection of the Speakers and the Power Supply
Vehicles equipped with an ISO plug can be connected directly to the ISO connection terminal if the plug assignment
is the same (please check beforehand!). If the plug assignment differs, use a vehicle-specific adapter from a vendor
for connection.

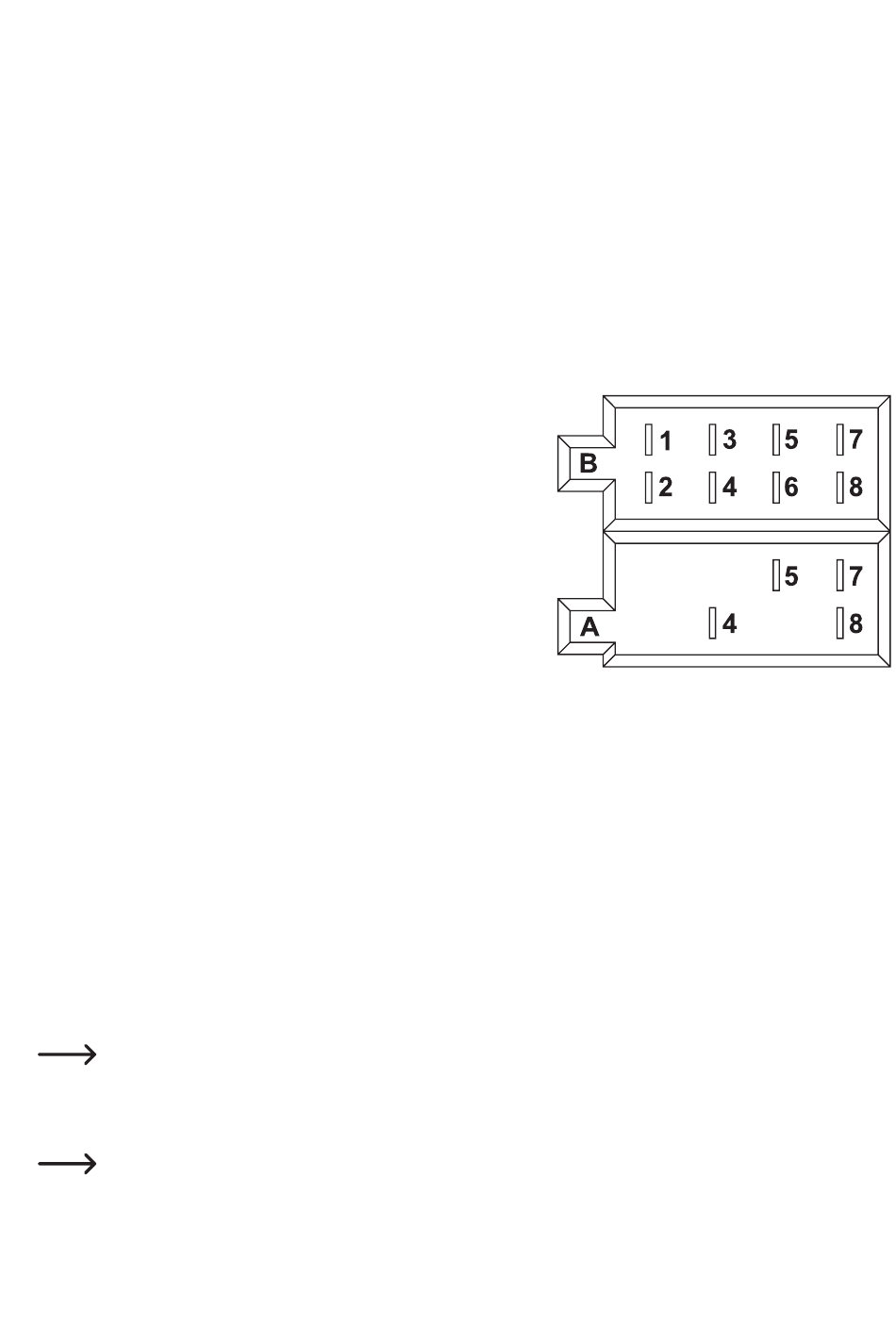

Please refer to the following figures for the contact assignment of the ISO connection socket of the car radio. Please
ask your car dealer for the respective assignment of your vehicle system plug.
System connector B (speaker connection)
1 Speaker rear right (+)
2 Speaker rear right (-)
3 Speaker front right (+)
4 Speaker front right (-)
5 Speaker front left (+)
6 Speaker front left (-)
7 Speaker rear left (+)
8 Speaker rear left (-)
System plug A (power supply)
1 Not assigned
2 Not assigned
3 Not assigned
4 Continuous current +12 V
5 Aerial control output
6 Not assigned
7 Ignition +12 V
8 Ground
• The constant current terminal +12 V (4) must be connected to a cable that also supplies +12 V permanently when
the ignition is off (terminal 30 of the on-board network). This terminal serves to save the user settings, time, etc.
• The aerial control output (5) supplies a voltage of +12 V with the device on. This cable can be used for the power
supply of an electrical aerial as well as for the voltage for switching on a car amplifier.
• The ignition terminal +12 V (7) must be connected to a cable that is only live with +12 V when the ignition is on
(terminal 15 of the on-board networks).
Do not connect this terminal to continuous current; otherwise the on-board battery could be discharged
when the vehicle is parked for a longer period of time.
• Connect the ground connection (8) with the vehicle body.
Adhesive techniques which become ever more common and painted metal parts impair the electric
conductivity. Therefore, not every metal part is a suitable earthing point.
