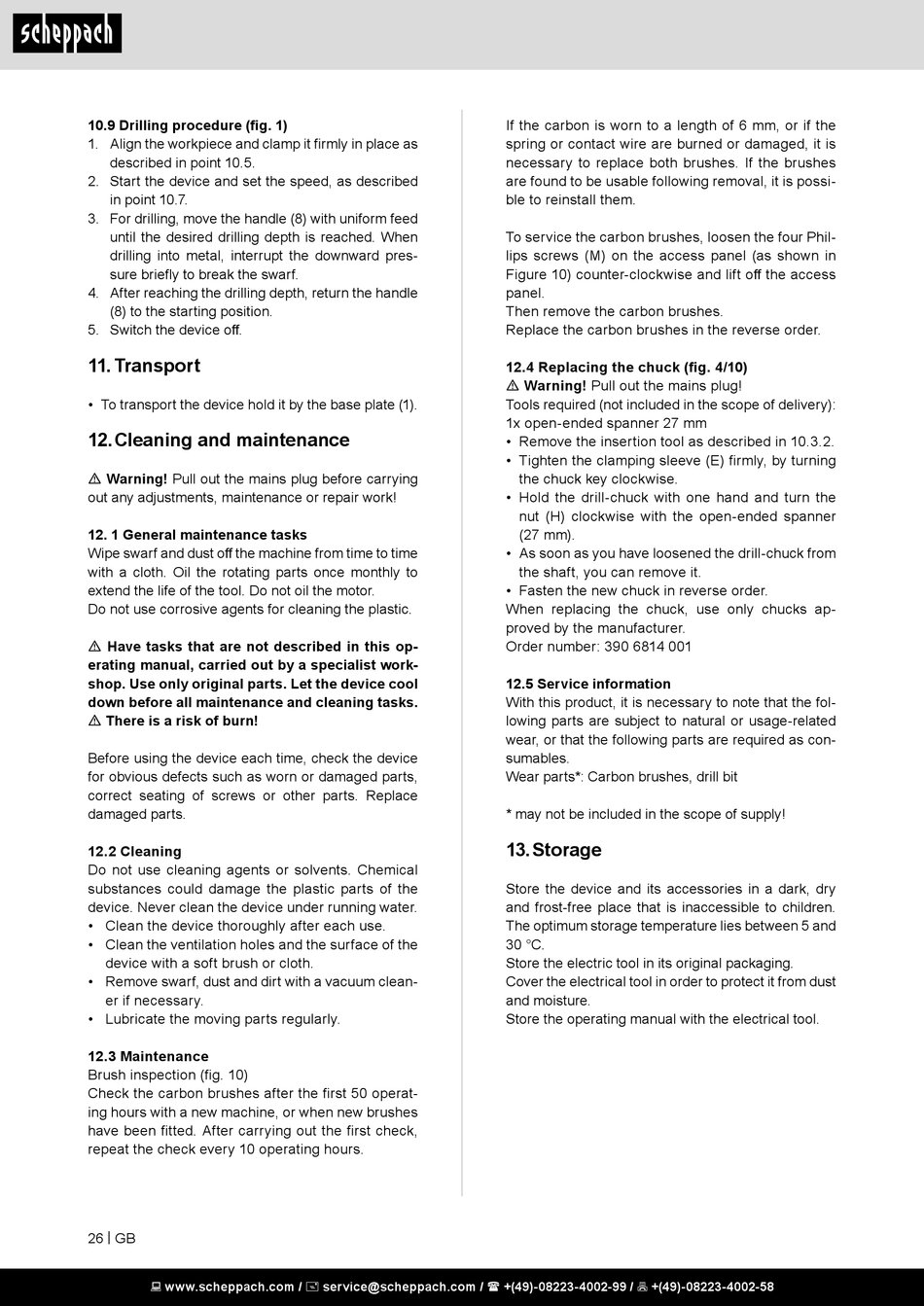

10.9 Drilling procedure (fig. 1)
1. Align the workpiece and clamp it firmly in place as
described in point 10.5.
2. Start the device and set the speed, as described
in point 10.7.
3. For drilling, move the handle (8) with uniform feed
until the desired drilling depth is reached. When
drilling into metal, interrupt the downward pres-
sure briefly to break the swarf.
4. After reaching the drilling depth, return the handle
(8) to the starting position.
5. Switch the device off.

11. Transport

• To transport the device hold it by the base plate (1).

12. Cleaning and maintenance

m Warning! Pull out the mains plug before carrying
out any adjustments, maintenance or repair work!
12. 1 General maintenance tasks
Wipe swarf and dust off the machine from time to time
with a cloth. Oil the rotating parts once monthly to
extend the life of the tool. Do not oil the motor.
Do not use corrosive agents for cleaning the plastic.
m Have tasks that are not described in this op-
erating manual, carried out by a specialist work-
shop. Use only original parts. Let the device cool
down before all maintenance and cleaning tasks.
m There is a risk of burn!
Before using the device each time, check the device
for obvious defects such as worn or damaged parts,
correct seating of screws or other parts. Replace
damaged parts.
12.2 Cleaning
Do not use cleaning agents or solvents. Chemical
substances could damage the plastic parts of the
device. Never clean the device under running water.
• Clean the device thoroughly after each use.
• Clean the ventilation holes and the surface of the
device with a soft brush or cloth.
• Remove swarf, dust and dirt with a vacuum clean-
er if necessary.
• Lubricate the moving parts regularly.
12.3 Maintenance
Brush inspection (fig. 10)
Check the carbon brushes after the first 50 operat-
ing hours with a new machine, or when new brushes
have been fitted. After carrying out the first check,
repeat the check every 10 operating hours.
26 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
If the carbon is worn to a length of 6 mm, or if the
spring or contact wire are burned or damaged, it is
necessary to replace both brushes. If the brushes
are found to be usable following removal, it is possi-
ble to reinstall them.
To service the carbon brushes, loosen the four Phil-
lips screws (M) on the access panel (as shown in
Figure 10) counter-clockwise and lift off the access
panel.
Then remove the carbon brushes.
Replace the carbon brushes in the reverse order.
12.4 Replacing the chuck (fig. 4/10)
m Warning! Pull out the mains plug!
Tools required (not included in the scope of delivery):
1x open-ended spanner 27 mm
• Remove the insertion tool as described in 10.3.2.
• Tighten the clamping sleeve (E) firmly, by turning
the chuck key clockwise.
• Hold the drill-chuck with one hand and turn the
nut (H) clockwise with the open-ended spanner
(27 mm).
• As soon as you have loosened the drill-chuck from
the shaft, you can remove it.
• Fasten the new chuck in reverse order.
When replacing the chuck, use only chucks ap-
proved by the manufacturer.
Order number: 390 6814 001

12.5 Service information

With this product, it is necessary to note that the fol-
lowing parts are subject to natural or usage-related
wear, or that the following parts are required as con-
sumables.
Wear parts*: Carbon brushes, drill bit
* may not be included in the scope of supply!

13. Storage

Store the device and its accessories in a dark, dry
and frost-free place that is inaccessible to children.
The optimum storage temperature lies between 5 and
30 °C.
Store the electric tool in its original packaging.
Cover the electrical tool in order to protect it from dust
and moisture.
Store the operating manual with the electrical tool.
