Motor (type)-specific settings pistol handpiece GD684
The following settings are available for the pistol handpiece:
• Slow-down and speed-up ramps
• Oscillating or tapping mode "Yes/No"
• Rotation angle in Oscillating or tapping mode
Press control key "Motor" (motor type GD684) in menu "Information/
Setting".

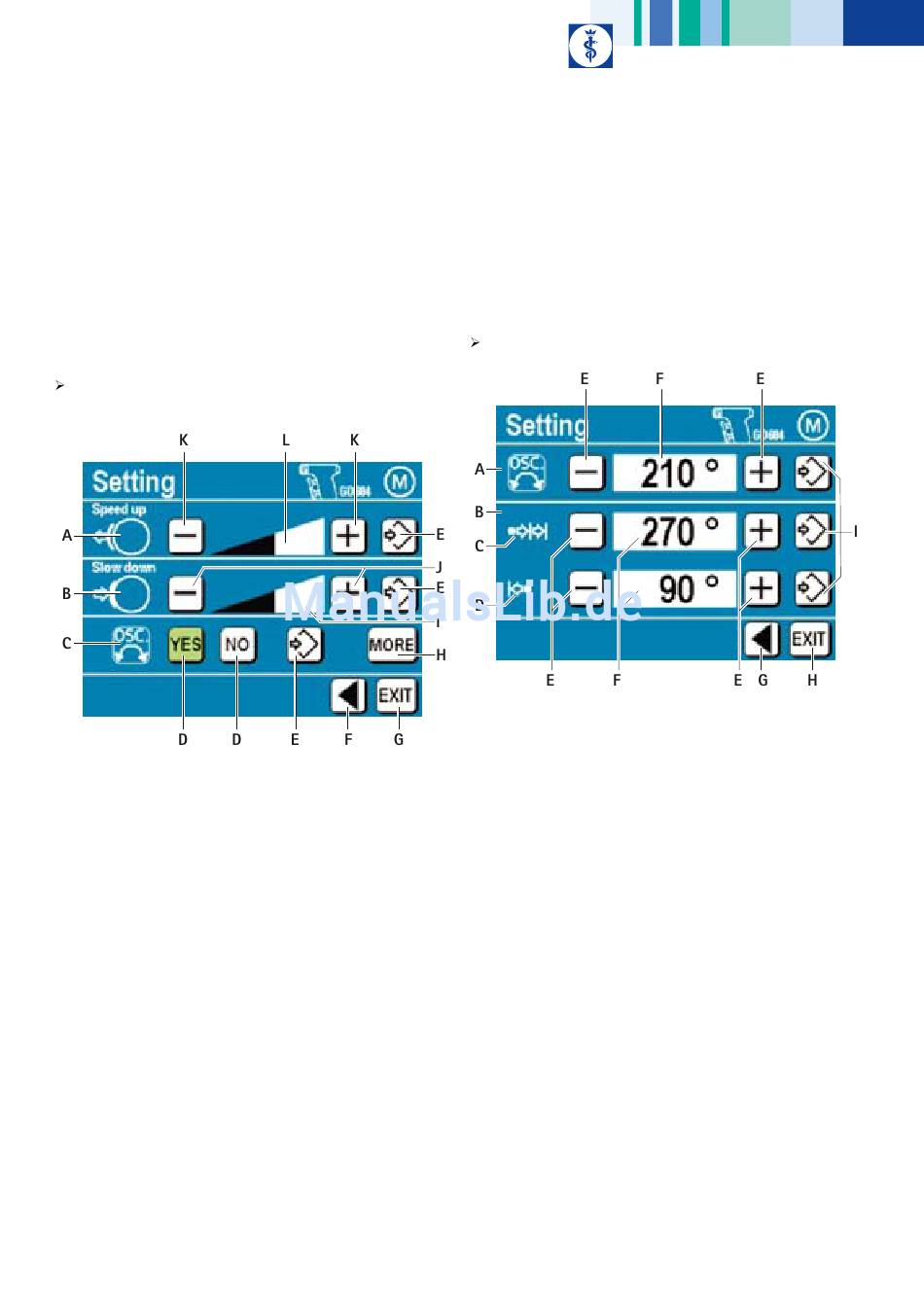

Fig. 42
Legend
A Symbol for "Speed up" ramp
B Symbol for "Slow down" ramp
C Symbol for Oscillating or tapping mode
D Control keys for oscillating mode, "Yes" and "No"
On activation of "Yes" the control key "MORE" will be displayed.
If "Yes" is selected and saved via control key E, the symbol "Oscillating
or tapping mode" will be displayed in the motor control field after
exiting the Instruction menu, if a pistol handpiece is connected.
E Control key "Save setting":
The control key "Save setting" will be highlighted by a green
background whenever a setting was changed. Pressing this key will
cause the change to be saved. Once the change has been saved, the
control key will be displayed on a white background.
F Control key "Change to higher menu level":
(to submenu Motor (type)-specific settings)
G Control key "EXIT":
To exit from the Instruction menu
H Control key "MORE":
Call-up of submenu "Set rotation angle in oscillating or tapping
mode"
I Qualitative bar display of the slow-down ramp to be set
J Control keys for changing the slow-down ramp
K Control keys for changing the speed-up ramp
L Qualitative bar display of the speed-up ramp to be set
To set the rotation angle for Oscillating or tapping mode:
Press control key "MORE".
Fig. 43
Legend
A Symbol for settings for oscillating operation:
Changing the angle of rotation for oscillating operation.
B Field for settings for tapping operation
In this field the tool rotation angle for tapping can be changed. Angle
adjustment for right rotation (forward) and angle adjustment for left
rotation (backward).
C Symbol for right rotation
D Symbol for left rotation
E Control keys for changing the angle of rotation
F Display of the angle of rotation to be set
G Control key "Change to higher menu level":
(to submenu Motor(type)-specific settings/Motor GD684/Set slow-
down and speed-up ramps, Oscillating or tapping mode Yes/No)
H Control key "EXIT":
To exit from the Instruction menu
I Control key "Save setting":
The control key "Save setting" will be highlighted by a green
background whenever a setting was changed. Pressing this key will
cause the change to be saved. Once the change has been saved, the
control key will be displayed on a white background.
