Aesculap Power Systems
microspeed® uni motor system

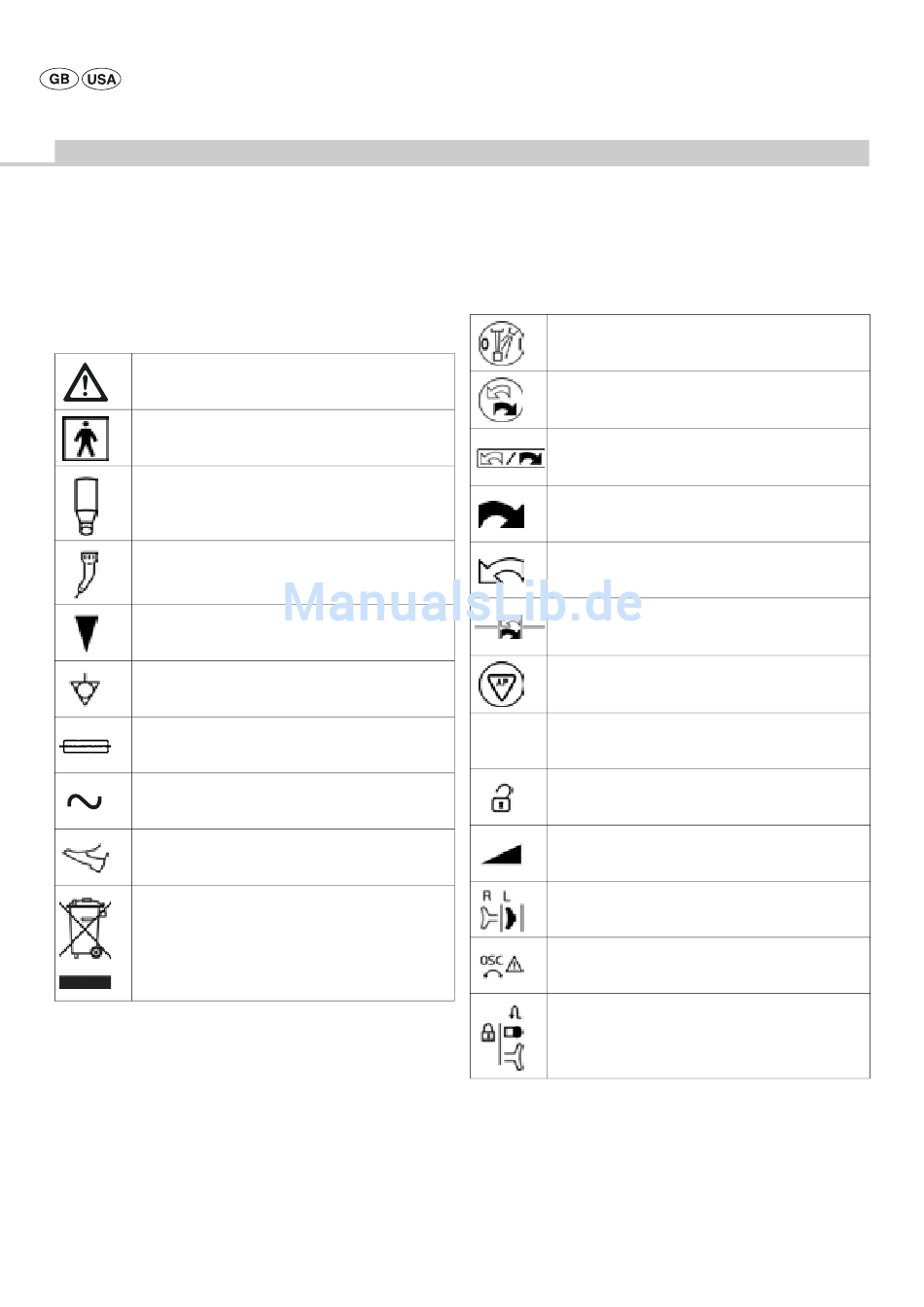

2.5 Symbols

2.5.1 Symbols on the control unit

Adhere to instructions for use
Type BF application component
Input from irrigation bottle (coolant pump)
Outlet to handpiece (coolant pump)
Pumping direction (coolant pump)
Equipotentialization connector
Fuse
Alternating current
Foot control
Marking of electric and electronic devices according to
directive 2002/96/EC (WEEE), see chapter Disposal.
12

2.5.2 Symbols on foot control, motor cable and motor

Foot control function button
(Foot control GD668, GD671, motor cable GD673)
Motor direction switch
Selection of left or right rotation
(Foot control GD668)
Pedal for left/right rotation
(according to the motor direction set through the motor
direction switch, foot control GD668)
Pedal for right rotation
(Foot control GD671)
Pedal for left rotation
(Foot control GD671)
Oscillating operation when both pedals are pressed
(only allowed in "Shaving" mode in conjunction with
shaver handpiece GD682 , foot control GD671)
Class AP anesthetic test
(EN 60601-1)
(Foot controls GD668 and GD671)
Enclosure protection type to DIN EN 60529
IPX8
(Foot controls GD668 and GD671)
Release
(Motors GD674, GD682 and GD684)
Motor speed control
(Motor GD684)
Right/left rotation switch
(Motor GD684)
Oscillating or tapping mode:
(Motor GD684)
Protection against inadvertent activation
(Motor GD684)
