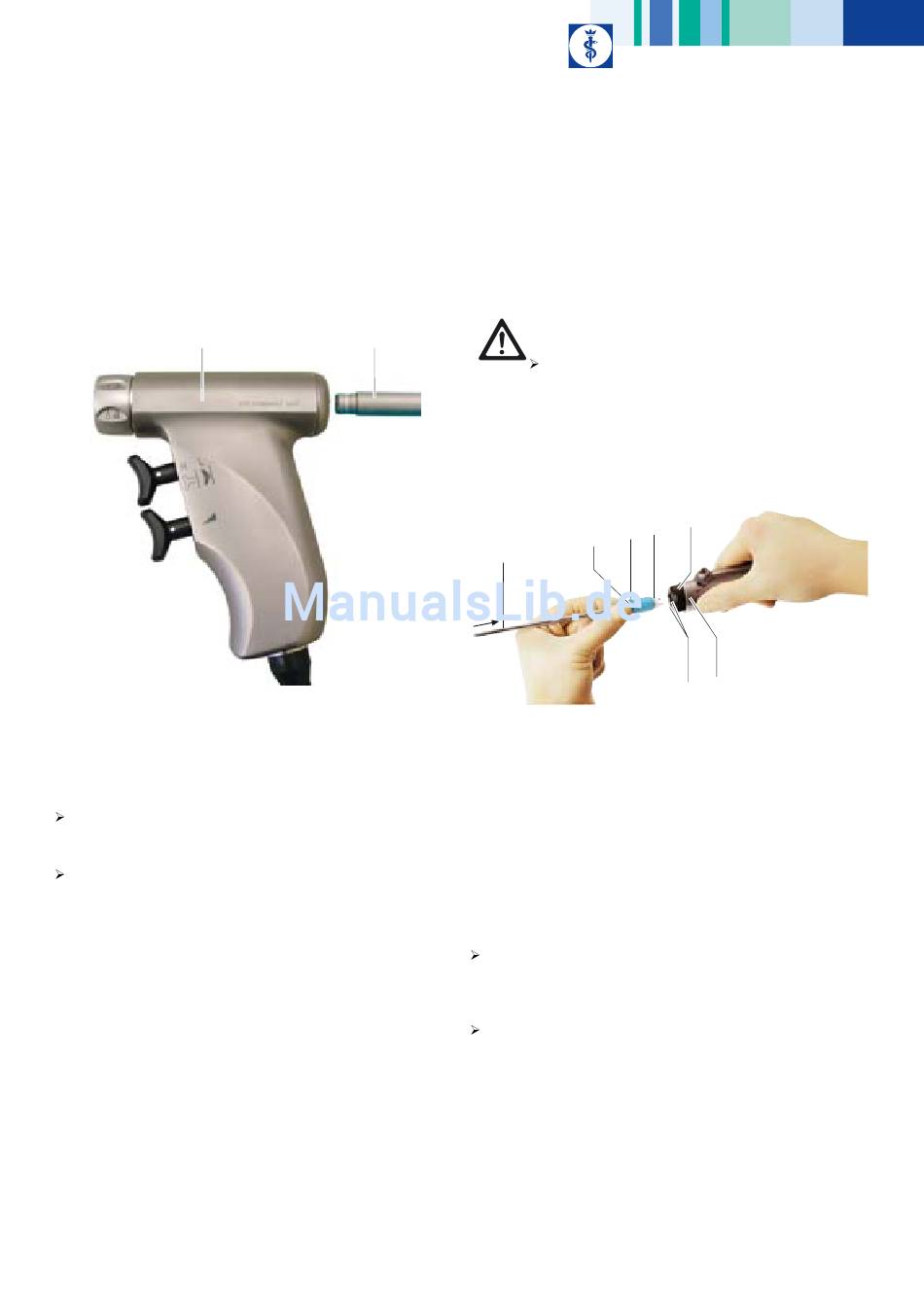

Connecting protective sleeve GD684225 to microspeed® uni mini
pistol handpiece GD684
33
Fig. 19
Legend
A Protective sleeve GD684225
33 Pistol handpiece
Coupling:
Slide protective sleeve A onto pistol handpiece 33 so that it clicks into
position.
Uncoupling:
Retract protective sleeve A from pistol handpiece 33.
Coupling the blades to shaver handpiece GD682
Risk of injury and material damage due to inappropriate use
A
of the blades!
WARNING
Note
Only use Aesculap blades.
Coupling a blade to the shaver handpiece
A
Fig. 20
Legend
A Blade
B Cap
C Fixation nose
D Coupling
E Unlocking sleeve
F Groove
37 Shaver handpiece
Blade A can be mounted on shaver handpiece 37 in four different
positions.
Hold blade A at cap B and push it into the blade adapter of the
handpiece as far as it will go, making certain that fixation nose C sits
in groove F of the motor.
The blade window is aligned with fixation nose C.
Check the firm seating of blade A by pulling blade A.
Always follow the safety advice and information given in
the respective instructions for use.
E
D
C
B
F 37
