4.1.3 Connecting the tubing set

Note
The tubing set is sterile! Sterile separation is carried out at the tubing.
3
A
3

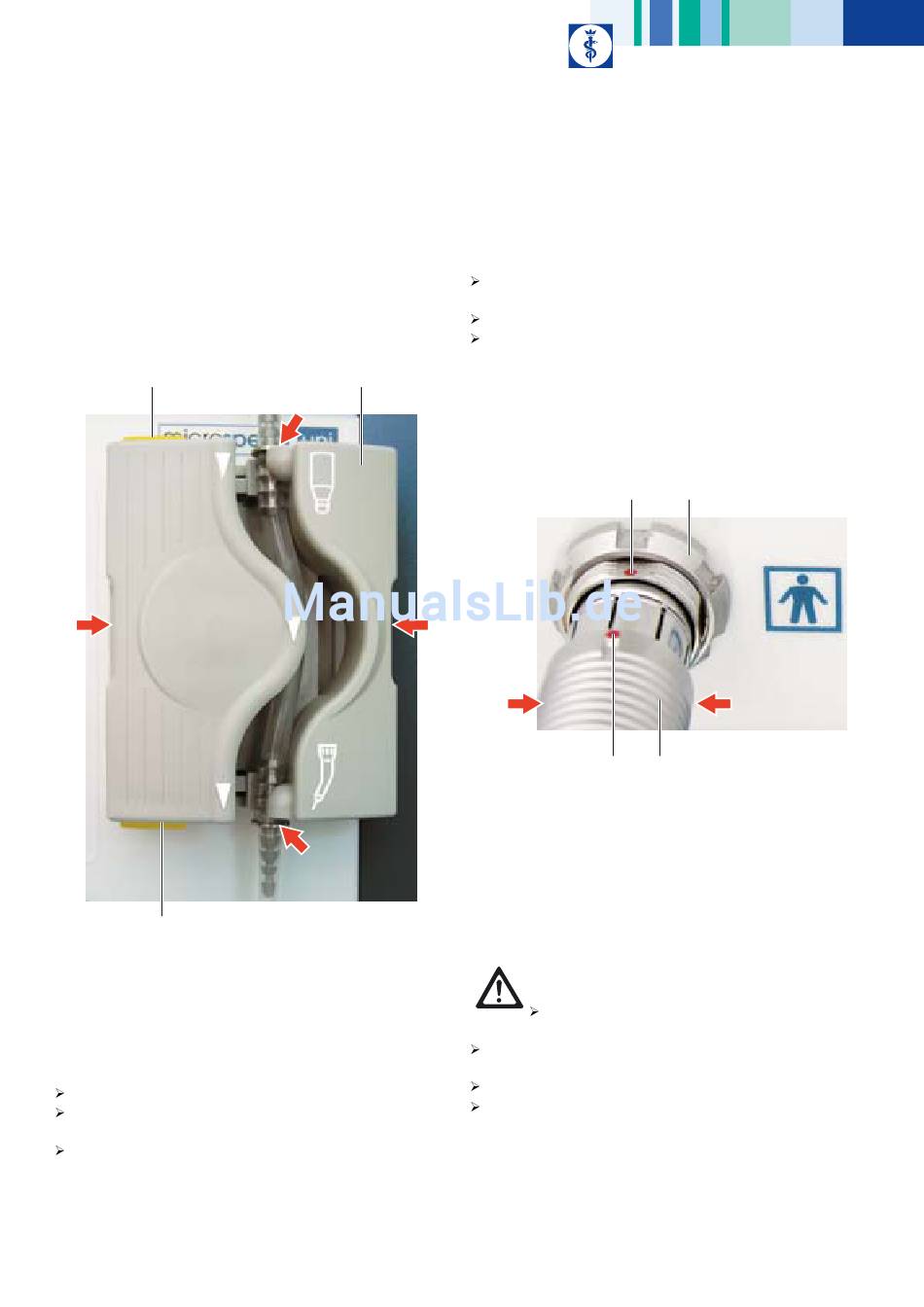

Fig. 12
Legend
A Arrows
B Arrows
3 Release buttons
4 Coolant pump
To open coolant pump 4: Simultaneously press release buttons 3.
Insert tubing: Insert the pump tube with the tube nipple into the recess
(arrows B).
Close coolant pump 4: Push together the pump housing until it clicks
into position (arrows A). When doing this, ensure that the pump
enclosure is completely closed, both at the inlet (from the irrigation
bottle) and at he outlet (to the handpiece).
4

4.1.4 Connecting the motor cable to the control unit

B
Note
The motor cable and the motor are sterile! Sterile separation is carried out
at the motor cable.
A
Fig. 13
Legend
A Mark (motor connection socket)
B
B Plug
C Mark (plug)
D Arrows
5 Motor connection socket
Insert bottle holder 9 for the sterile fluid bottle into bottle holder
mount 10.
Insert the spike into the sterile fluid bottle.
Mount the sterile fluid bottle at bottle holder 9.
A
D
C
Damage to, or destruction of, the motor cable caused by
pulling the cable!
Always pull at the plug, never at the cable.
CAUTION
To connect plug B: Align plug B in such a way that mark C on the plug
is aligned with mark A on motor connection socket 5.
Fully insert plug B in the motor connection socket.
To disconnect plug B: Hold plug B in the marked places (arrows D) and
unplug it from motor connection socket 5.
5
D
B
