Motor (type)-specific settings shaver handpiece GD682
The following settings are available for the shaver handpiece:
• Slow-down and speed-up ramps
• Oscillation frequency (= duration of left-right rotation, in seconds) and
speed-up ramp in oscillating operation (for Shaving mode)
Press control key for motor type GD 682.
Adjust slow-down and speed-up ramps:

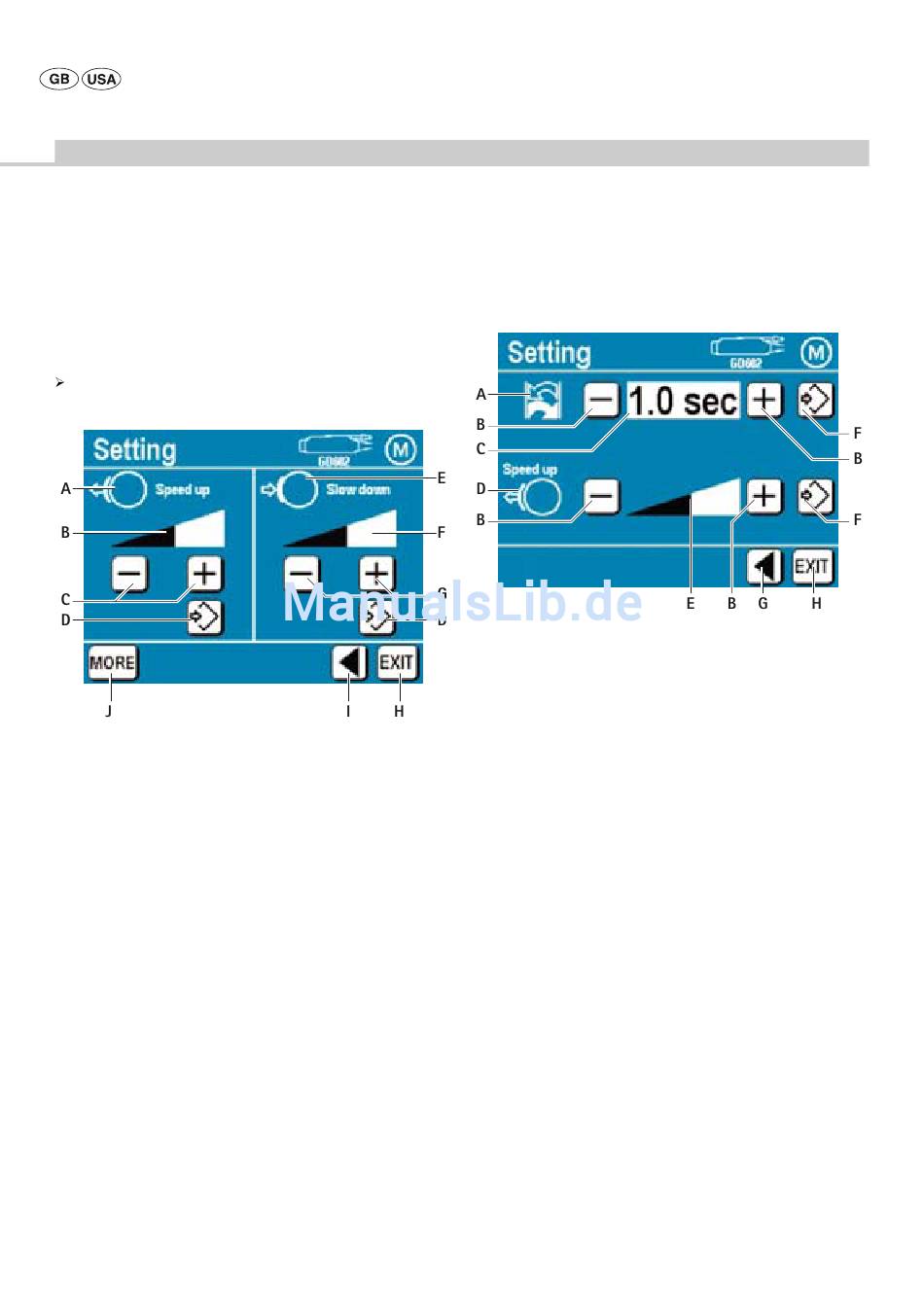

Fig. 40
Legend
A Symbol for "Speed up" ramp
B Qualitative bar display of the speed-up ramp to be set
C Control keys for changing the speed-up ramp
D Control key "Save setting":
The control key "Save setting" will be highlighted by a green
background whenever a setting was changed. Pressing this key will
cause the change to be saved. Once the change has been saved, the
control key will be displayed on a white background.
E Symbol for "Slow down" ramp
F Qualitative bar display of the slow-down ramp to be set
G Control keys for changing the slow-down ramp
H Control key "EXIT":
To exit from the Instruction menu
I Control key "Change to higher menu level":
(to submenu Motor (type)-specific settings)
J Control key "MORE":
Call up of submenu "Set oscillation frequency and speed-up ramp in
oscillating operation" (for Shaving mode of operation)
36
Setting the oscillation frequency and speed-up ramp for oscillating
operation in the "Shaving" mode:
Fig. 41
Legend
A Symbol for oscillating operation
B Control keys for changing the oscillation frequency/speed-up ramp
C Oscillation frequency display
D Symbol for "Speed up" ramp
E Qualitative bar display of the speed-up ramp to be set
F Control key "Save setting":
The control key "Save setting" will be highlighted by a green
background whenever a setting was changed. Press this key to save
the changed setting. Once the change has been saved, the control key
will be displayed on a white background.
G Control key "Change to higher menu level":
(to submenu Motor(type)-specific settings/Motor GD682/Set the
slow-down and speed-up ramps)
H Control key "EXIT":
To exit from the Instruction menu
