2.4.12 Motors

Motors with motor-side plug connection
Note
A motor cable GD672 or GD673 is required for connecting motors with
motor-side plug connection to the control unit!
Depending on the field of application, there are five different motor types
available, with the three Aesculap standard coupling systems Hi-Line,
micro-Line (Intra coupling system to DIN 13940/ISO 3964) and mini-Line.
Each motor can be operated in right or left (clockwise or
counterclockwise) rotation mode. When a motor is running in left-
rotation mode, control unit 1 issues an acoustic signal.
For the performance data and parameters to be set for the individual
motor types, see chapter Technical specifications.
Motor types GD678 and GD679 offer the option to select a saw program.
In this program the maximum motor speed is limited to 16,000 1/min.
Motors with fixed motor cable GD682 and GD684
Note
The motors are directly connected to the control unit. An additional motor
cable is not required!
For the performance data and parameters to be set for the individual motor
types, see chapter Technical specifications.

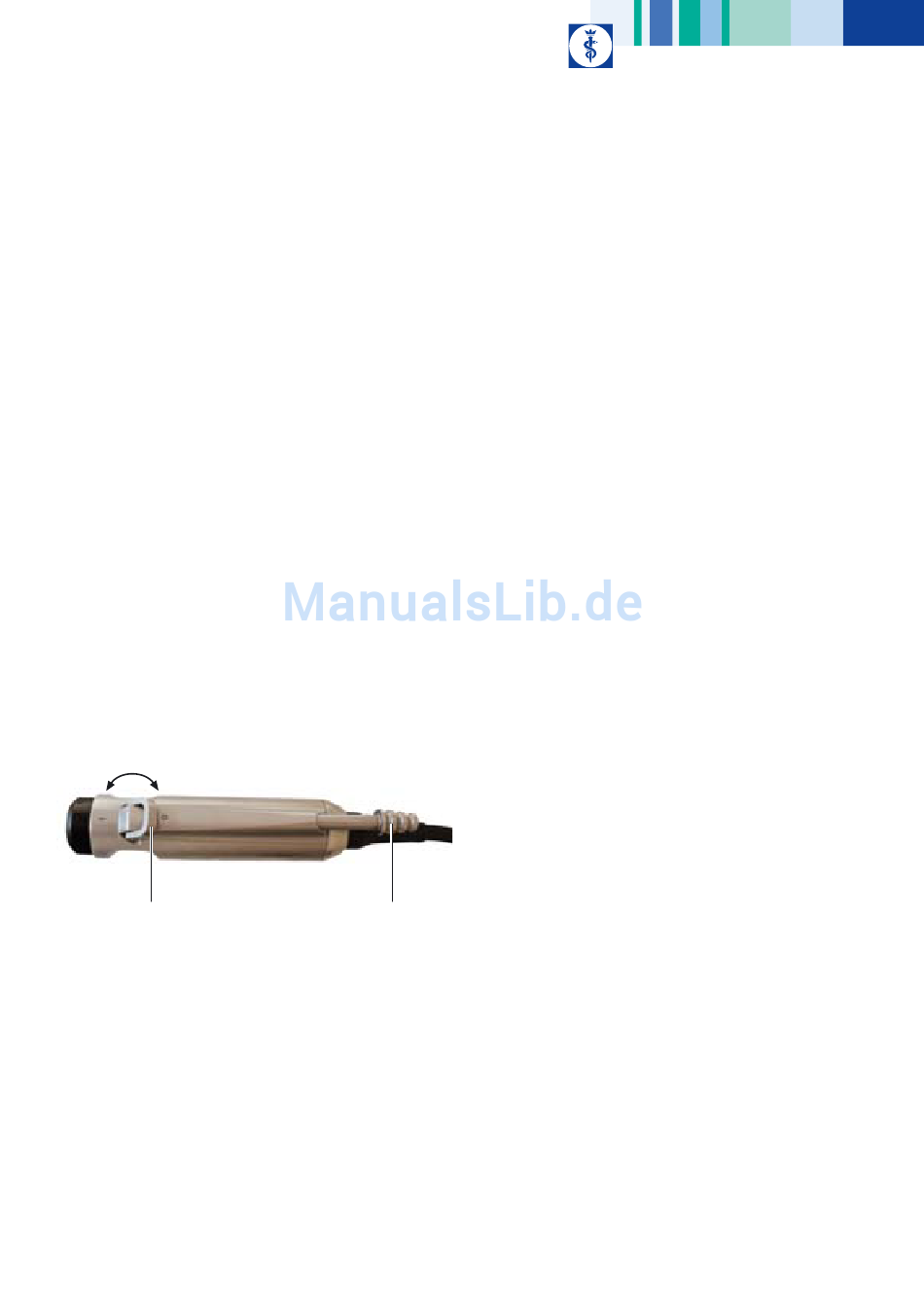

microspeed® uni shaver handpiece GD682
36
Fig. 6
Legend
36 Suction control lever:
Lever for continuous regulation of the suction power
38 Tube olive:
Connection to the surgical suction device via a suction tube
Notes
Always observe the instructions for use of blades TA011579.
Only use Aesculap blades.
Shaver handpiece GD682 can only be used with foot control GD671 and a
surgical suction device (e.g. GF200 or GF210).
Shaver handpiece GD682 can be used if:
• a motor with motor cable GD673 is connected at the second motor
connection socket, or
• a pistol handpiece GD684 is connected at the second motor connection
socket, or
• a motor with motor cable GD672 is connected at the second motor
connection socket and the motor release switch of that cable is in its
"OFF" position, or
• only one shaver handpiece GD682 is connected to control unit 1.
There are two types of blades available for shaver handpiece GD682:
reamer and shaver blades.
Control unit 1 recognizes whether the coupled blade is a reamer or a
shaver blade. The respective mode of operation (reaming or shaving) is
indicated on the display.
An acoustic signal is issued whenever a blade of a different type is
inserted. At the same time the respective symbol is displayed in the
appropriate control field.
With a reamer blade inserted, left-rotation and right-rotation modes are
avilable, but not the oscillating mode. The maximum speed is limited to
8,000 1/min. The symbol for the "Reaming" operating mode is displayed in
the control field.
With a shaver blade inserted, right-rotation and left-rotation operating
modes are available. The maximum speed is limited to 5,000 1/min. The
symbol for the "Shaving" operating mode is displayed in the control field.
