3. Preparation and setup

Non-compliance with these rules will result in complete exclusion of any
responsibility and liability on the part of Aesculap.
Observe the following regulations when setting up and operating the
product:
– the national regulations for installation and operation
– national regulations on fire and explosion protection.
– operating advisories acc. to IEC-/VDE regulations.
The following advice is given on the basis of the presently applicable
IEC-/VDE regulations:
Fire and explosion hazard!
Do not use the control unit and motors in explosion
hazard areas.
WARNING
The foot control circuit is ignition-safe and approved for operation in
medical environments acc. to IEC 601/VDE 0750.

3.1 Preparation

Note
The control unit can be mounted on an Aesculap mobile stand for
microspeed® uni (adjustable height) GA411 or on an Aesculap mobile stand
for surgical devices GD416M.
Other Aesculap devices must not be stacked on top of the control unit.

3.1.1 Mounting the control unit on the mobile stand

Note
Follow the instructions for use of the mobile stand.
16 15

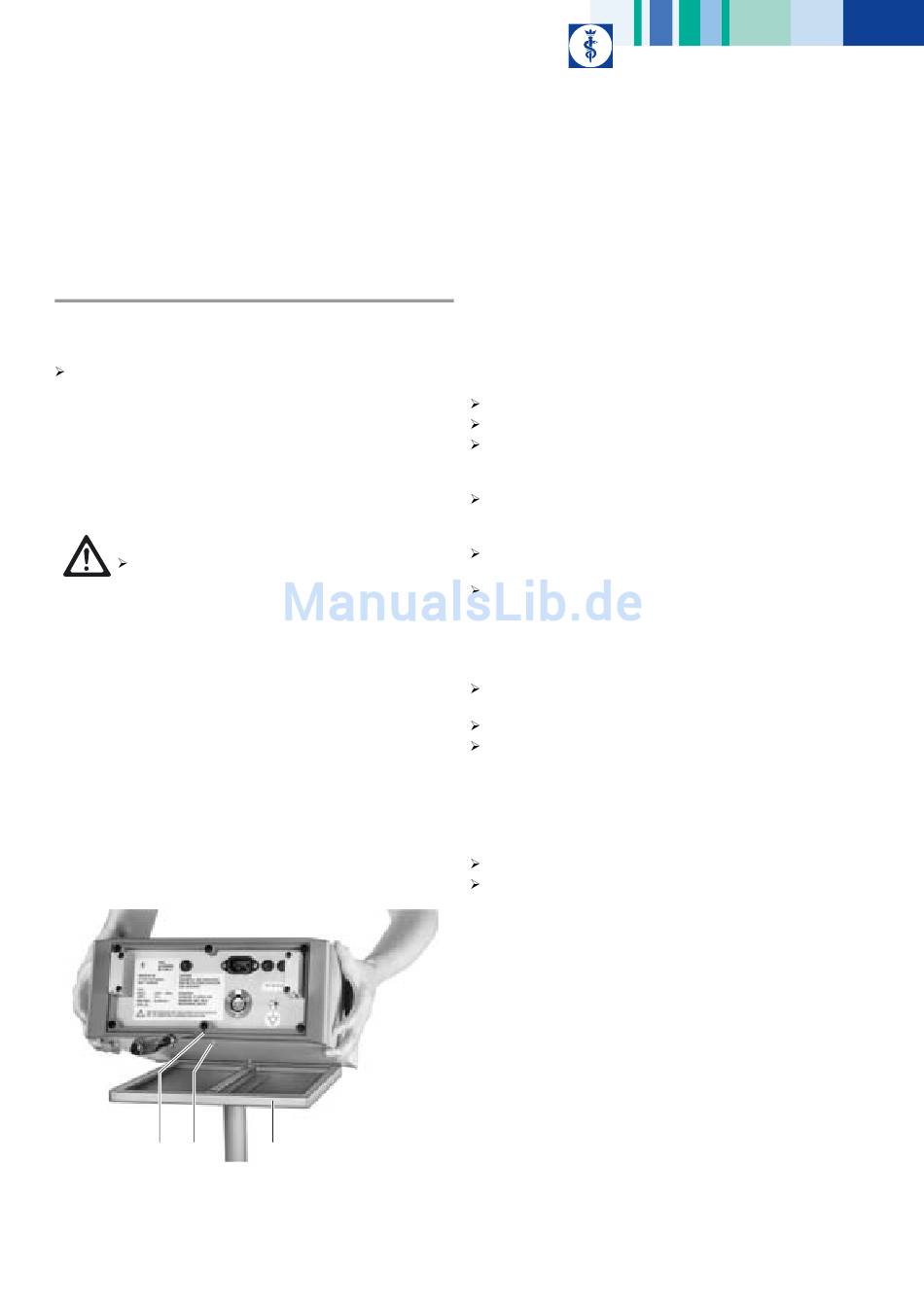

Fig. 10
A
Legend
A
Device support
15 Stacking cones
16 Locking screw
Only one device may be mounted on the mobile stand at any time, always
taking into consideration the stability of the mobile stand.
Remove the caps from stacking cones 15.
Remove the device feet, using a screwdriver.
Move stacking cones 15 to the correct mounting positions by turning
locking screw 16 counterclockwise as far as it will go, using a
screwdriver.
Position the device on the mobile stand in such a way that front edge
sits flush with device support A and stacking cones 15 sit in the
corresponding holes in device support A.
Secure the device by turning locking screw 16 clockwise as far as it
will go.
Gently lift the device to check if it is securely attached to device
support A.
The device is now mounted on the mobile stand.

3.1.2 Dismounting the control unit from the mobile stand

Use a screwdriver to turn locking screw 16 counterclockwise as far as
it will go.
Lift off the device.
Reattach the device feet either by hand or with a screwdriver.
The device is now dismounted from the mobile stand.

3.1.3 Mains power connection

The voltage of the mains power must correspond to the voltage indicated
on the type plate of the device.
Plug in the power cord at power cord socket 12.
Plug in the mains plug at the building mains power socket.
15
