Aesculap Power Systems
microspeed® uni motor system
4. Working with the microspeed® uni
motor system
Risk of infection and contamination!
Prior to first operation, carry out sterile processing of
the motors, motor cable, tubing, handpiece and tools.
WARNING
Make certain that the packaging of sterile products is
undamaged.
Risk of injury caused by inadvertent activation of the
motor!
Secure motors that are not actively operated against
WARNING
inadvertent activation through foot or hand control.

4.1 System set-up

4.1.1 Connecting the accessories

Note
Follow the instructions for use of individual accessories!
Note
micro-Line drill pistol (GB200) and arthroscopy handpiece (GB801) must
not be used with this product.
Combinations of accessories that are not mentioned in the present
instructions for use may only be employed if they are specifically designed
for the intended application and do not compromise the performance and
safety characteristics of the products.
Depending on the motor type, all handpieces and tools of this range can
be coupled through the three Aesculap standard coupling systems Hi-Line
(or Hi-Line XS), micro-Line (handpieces for drilling, reaming, sawing and
shaping, with Intra coupling system acc. to DIN 13940/ISO 3964) and
mini-Line.
For other accessories, see chapter Accessories/Spare parts and brochure
no. O22711, Aesculap Power Systems.
16

4.1.2 Connecting the foot control to the control unit

Note
Only necessary when using motor cable for foot control GD672 or shaver
handpiece GD682.
The foot control can not be used in combination with motor cable with
hand control GD673 and/or pistol handpiece GD684.
A C 14
C

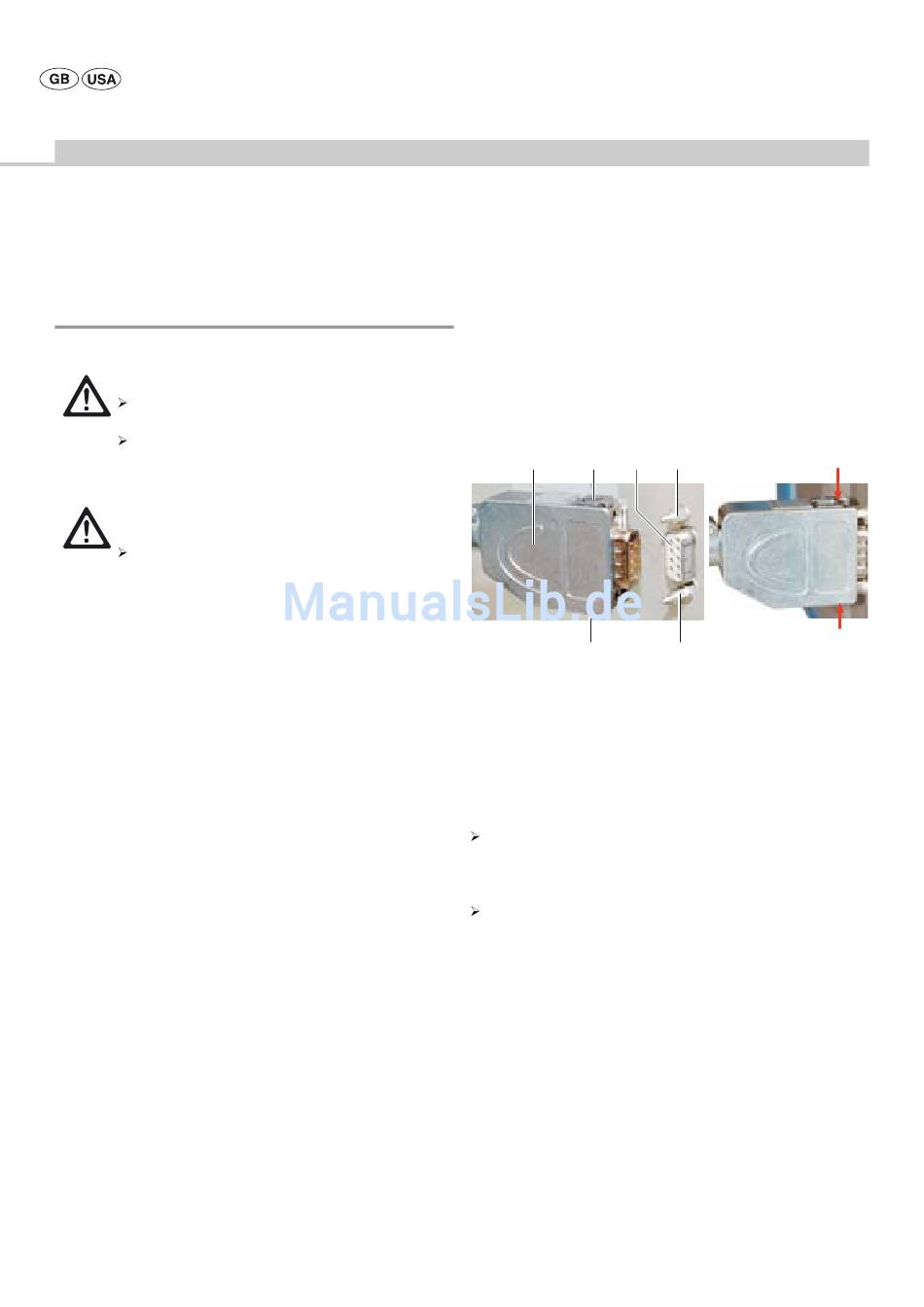

Fig. 11
Legend
A Foot control connector
B Locking pins
C Locking clips
D Arrows
14 Connection socket for foot control
To connect the foot control connector A to control unit 1:
Fully plug in the foot control connector A at the connection socket for
foot control 14 (in rear panel of the unit).
Locking clips C audibly engage in locking pins B, see Fig. 11.
To disconnect the foot control device from control unit 1:
Simultaneously compress locking clips C (see arrows D) and unplug
connector A.
B
D
D
B
