Activating the pistol handpiece

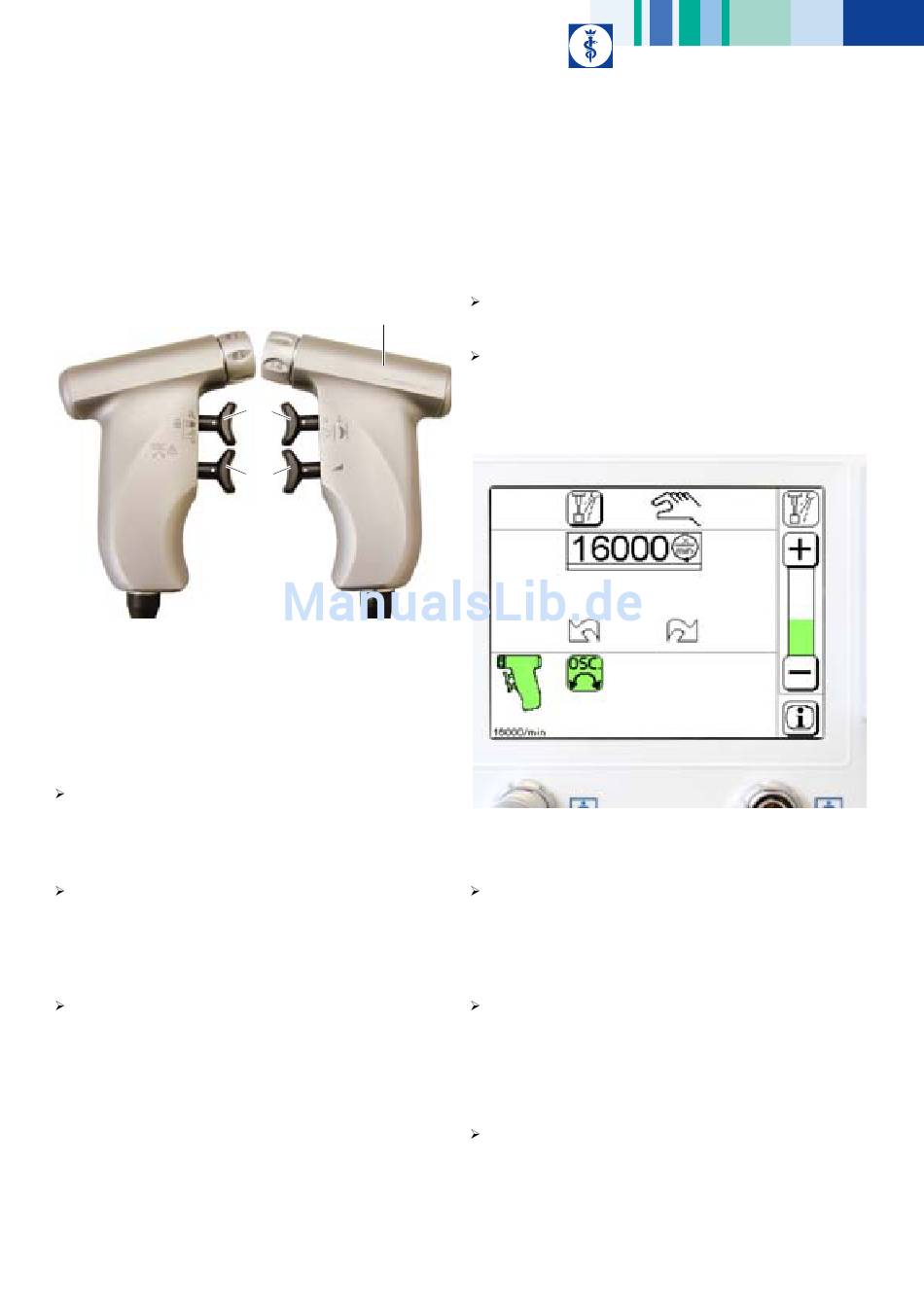

Fig. 30
Legend
33 Pistol handpiece
34 Upper trigger
35 Lower trigger
Standard operating mode
To activate right rotation: press lower trigger 35.
The motor speed is proportional to the actual trigger travel.
The motor direction indicator for right rotation is illuminated in the
motor control field.
Pistol handpiece 33 runs clockwise.
To activate left rotation: First pull upper trigger 34, then lower
trigger 35.
The motor direction indicator for left rotation is illuminated in the
motor control field.
Pistol handpiece 33 runs counterclockwise.
Control unit 1 issues an acoustic signal.
To reverse the motor direction: press upper trigger 34 with lower
trigger 34 already pressed.
The motor direction indicator for right rotation is illuminated in the
motor control field.
Pistol handpiece 33 runs clockwise.
The direction indicator for left rotation is illuminated and pistol
handpiece 33 reverses its direction of rotation.
Control unit 1 issues an acoustic signal.
33
34
35
Oscillating or tapping mode
For selecting the Oscillating or tapping mode in the Instruction menu,
see chapter Selecting Oscillating or tapping mode in the Instruction
menu.
To activate the Oscillating or tapping mode:
press and hold down upper trigger 34 for three seconds.
Control unit 1 issues an acoustic signal.
The symbol "Display for oscillating or tapping mode active" is
illuminated in the motor control field.
Fig. 31
The keys for increasing or reducing the speed range upper limit are
faded out as, in this operating mode, the speed range upper limit
cannot be changed via the touch control field on control unit 1.
To activate left rotation:
press upper trigger 34 with lower trigger 35 already pressed.
The motor direction indicator for left rotation is illuminated in the
motor control field.
Pistol handpiece 33 runs counterclockwise.
Control unit 1 issues an acoustic signal.
To activate tapping:
press lower trigger 35 within the first half of its total travel range.
The motor direction indicators for left and right rotation in the motor
control field light up alternately.
Pistol handpiece 33 alternately runs counterclockwise and clockwise,
with the clockwise angle of rotation always larger than the
counterclockwise angle of rotation.
To activate oscillating operation:
press lower trigger 35 within the second half of its total travel range.
The motor direction indicators for left and right rotation in the motor
control field light up alternately.
Pistol handpiece 33 runs counterclockwise and clockwise alternately.
