INFORMATION FOR THE INSTALLER

4 INSTALLATION

The board is supplied already connected in the panel and programmed; if it is necessary to alter the
settings, see the Settings chapter. For the connections, refer to the diagram of the electric panel.
CAUTION

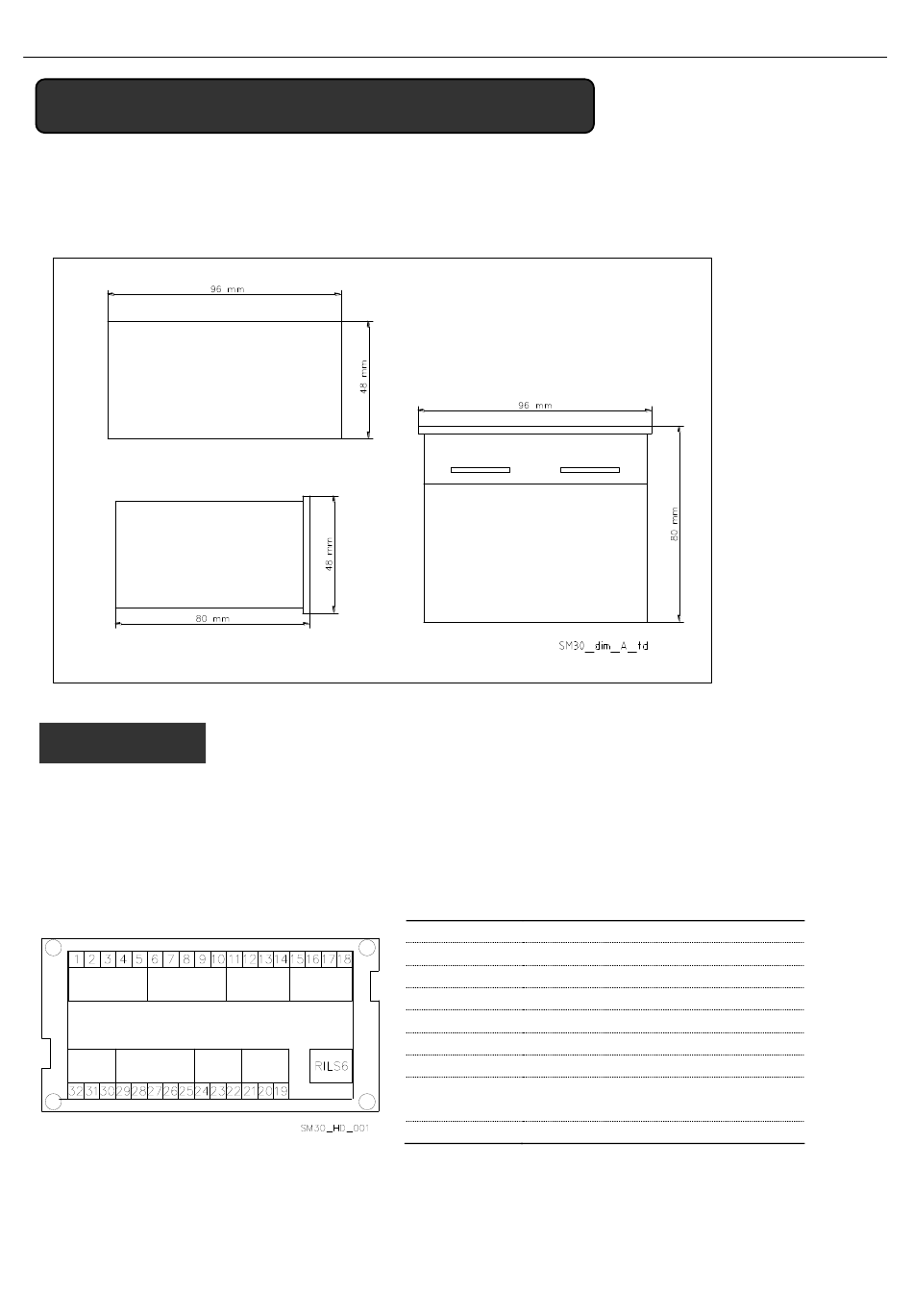

4.1 View of terminals
A B
H
G
Do not start the pumps until they have been filled with liquid. See the pump
instructions manual.
For connection details, see diagram of electric panel.
C D
F E
Group A Optoinsulated digital inputs
Group B Optoinsulated digital inputs
Group C Alarm relay
Group D Pump relay control
Group E Bus RS485 communication
Group F Level control
Group G Analog inputs/outputs
Group H Power supply +24 Vac/dc +/-
15%
RILS6 RILS 6 board connection
