General Information; Product Description; Operation - Xylem Lowara SM30 Control Card Programmierhandbuch

1 GENERAL INFORMATION

GSD and GSY booster sets are designed to transfer and increase the pressure of clean water in
plumbing systems in homes, offices, communities and industry.
This manual describes the programming of the electronic control board, referred to below as SM30
BSETF3. For the instructions for use and maintenance of the booster set, see the respective manual.
Characteristics and Limits of use
Rated using voltage of the SM30 BSETF3
board:
Absorption:
Using and storage environment temperature:
Relative humidity:
Environment:
IP protection rating of front panel:
Dusty environments with the presence of sand, or damp environments such as at the seaside, may
cause premature deterioration, compromising regular operation.
CHECKING THE MATERIAL
On delivery of the booster set, check that the material received corresponds to what is indicated on
the transport documents that accompany it.
KEEP ALL THE DOCUMENTATION SUPPLIED WITH CARE.
CAUTION
PAPER DOCUMENTATION MUST NOT BE KEPT IN A DAMP PLACE!

2 PRODUCT DESCRIPTION

Electronic control board with LCD display, warning light and control buttons, fitted in the booster set
electric panel.

3 OPERATION

1
2
3
4
24 Vac/Vdc +/- 15%
4 VA max (approx. 0.5 VA in stand-by)
-10 °C + 65 °C
30% at 90 °C MAX, without condensation
Internal
IP65
The stored programme (Software) operates the
pumps by means of the electric panel according to the
system demand.

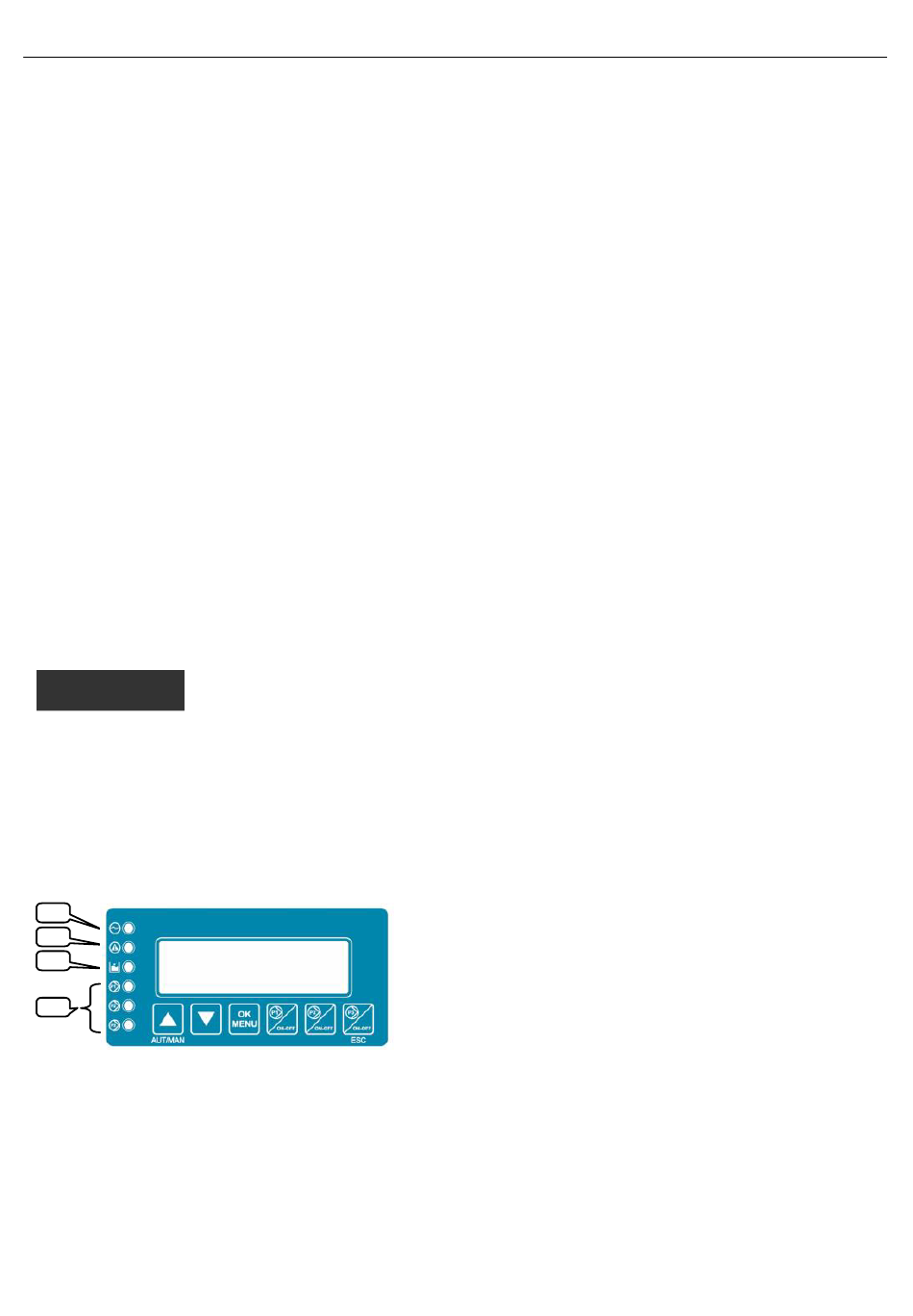

The LCD display gives indications on the system
operating status, along with the warning leds:
1) LINE: Green led, supply voltage present;
2) FAULT: Red led, indicating a fault;
3) LOW LEVEL:
pressure/level alarm on intake;
4) P : Green led; pump operating;
1
....
P operating.
3
The number of pumps depends on those present in
the set.
Red led, presence
