Position No. Description
0.01 Shears
0.02 Intermediate gear spindle
1.01 Locking handle
1.03 Clamping nut
1.05 Spindle
1.06 Spindle bearing
1.07 Handwheel for support
1.08 Cover plate
1.09 Spindle nut
1.10 Tail stock
1.11 Pinole MT-2
1.12 Baseplate / bedplate
1.13 Locking bolt
2.02 Press handle
2.03 Holder complete
2.04 Axle pin tool holder
2.05 Tool support (top)
2.06 Sunk key
2.09 Spindle
2.14 Handle
2.16 Nut (tool slide)
2.17 Tool slide (under)
2.18 Locking bolt
2.20 Turning pin
2.21 Key cross slide
3.01 Handle
3.04 Spindle
3.05 Spindle nut
3.10 Baseplate cross slide
3.11 Hollow key
3.13 Longidutinal direction spindle
3.15 Hand wheel
3.17 Half nut lever
3.18 Half nut mechanism
3.21 Longiditunal direction spindle (internal)
3.22 Bearing
4.03 Motor
4.04 Motor pulley
4.07 Headstock with cover
4.08 Main spindle
4.10 Main spindle pulley
4.11 Intermediate pulley
4.12 Tension roller
4.16 Switch
4.17 Bearing (lead screw)
4.23 Thrust bearing
4.24 Rack FMD-500N
4.24 Rack FMD-500N
4.24 Rack
5.01 Gear 51
5.02 Gear 68
5.03 Gear 25
5.04 Gear 75
5.05 Gear 76
5.06 Gear 24
5.07 Gear 24
5.08 Gear 76
5.09 Gear 56
5.10 Gear 56
5.11 Change wheel 30
102
Spare part list
No.
400311
400312
400300
400301
400302
400303
400304
400305
400306
400307
400308
400309
400310
400313
400314
400315
400316
400317
400318
400319
400320
400321
400322
400323
400324
400325
400326
400327
400328
400329
400330
400331
400332
400333
400334
400335
400336
400337
400338
400339
400340
400341
400342
400343
400344
400345
400346
400367
400366
400347
400348
400349
400350
400351
400352
400353
400354
400355
400356
400357

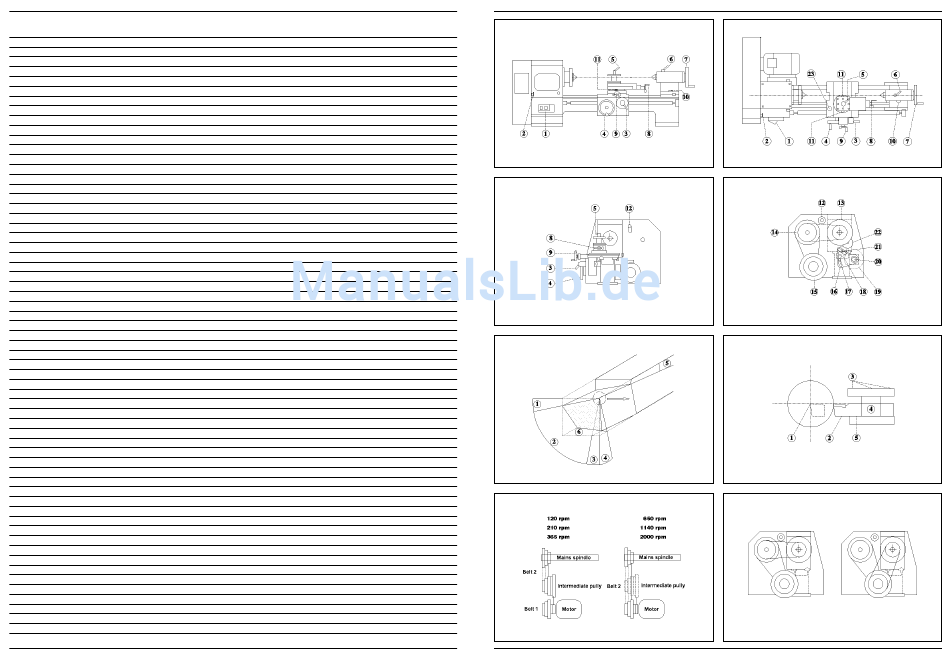

Fig.9
Fig.11
Fig.13
Fig.15
Ferm Ferm
Fig.10
Fig.12
Fig.14
Fig.16
03
