Dismantle the supplementary ring for extension (applies not to Ecotop)

If your kiln is equipped with a supplementary ring, you must remove it for transportation. Check the tensioning belts
of the stainless steel kiln casing beforehand and tighten them slightly if necessary. Disconnect the electric
connection from the switch cabinet and proceed as described in section 7.1.2. Place the main and supplementary
rings on a smooth and even surface otherwise the fire bricks might be damaged! Do not place it vertically on its
side!
7.3.3.

Assembly note on main/supplementary ring (applies not to Ecotop)

7.4.

Swivel the kiln stand

7.4.1.

Dismantle the kiln stand

All models except Ecotop

Step Action required
If necessary, you can seperate the kiln stand from the
1
floor.
Check the tensioning belts of the stainless steel kiln
2
casing beforehand and tighten them slightly if necessary.
3 To do this, loosen the supporting screw on the front.

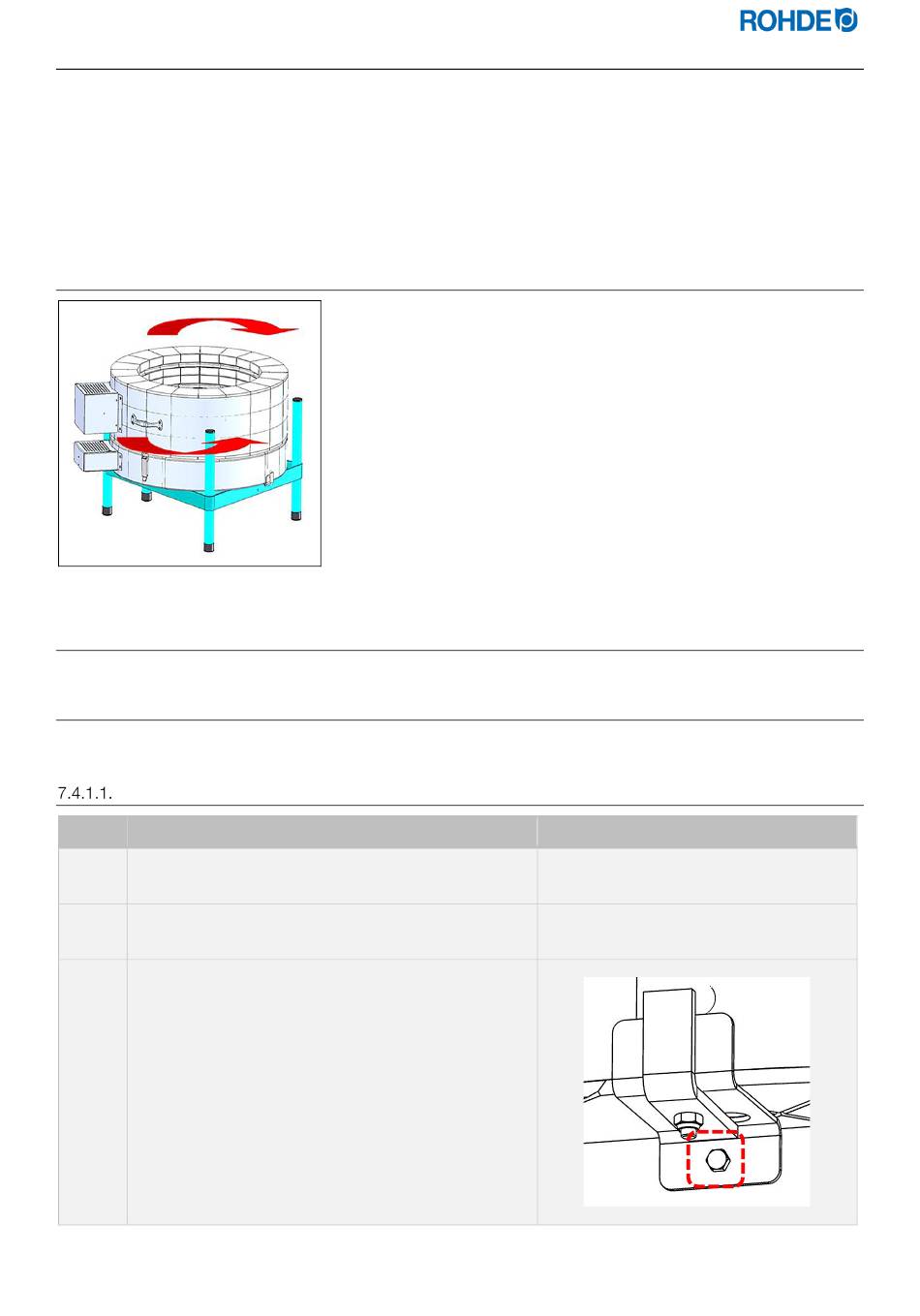

The following must be observed if the main or supplementary ring has been
dismantled, in order to restore the tightness of the rings:
⇒ Grasp the intermediate ring by the handles and turn the
supplementary ring 2-3 times by 5-8 cm in each direction.
⇒ This ensures that the insulating blocks of the floor and the
supplementary grind in and seal each other.
40 / 161 - EN -
Illustration
