Do not place any objects on the oven lid, as this will damage the structure of the stone and the insulating
stones will tear off and break out. The manufacturer assumes no liability or guarantee for this!
• Never open the kiln during operation or before it has cooled down completely. High temperatures are
released and might cause physical injury and material damage. The manufacturer of the kiln does not
assume any liability in such cases!
• When firing materials which release hazardous gases and fumes, an exhaust air system must be installed
that directs these into the open air.
• Never use your kiln for firing inflammable materials or food.
6.3.

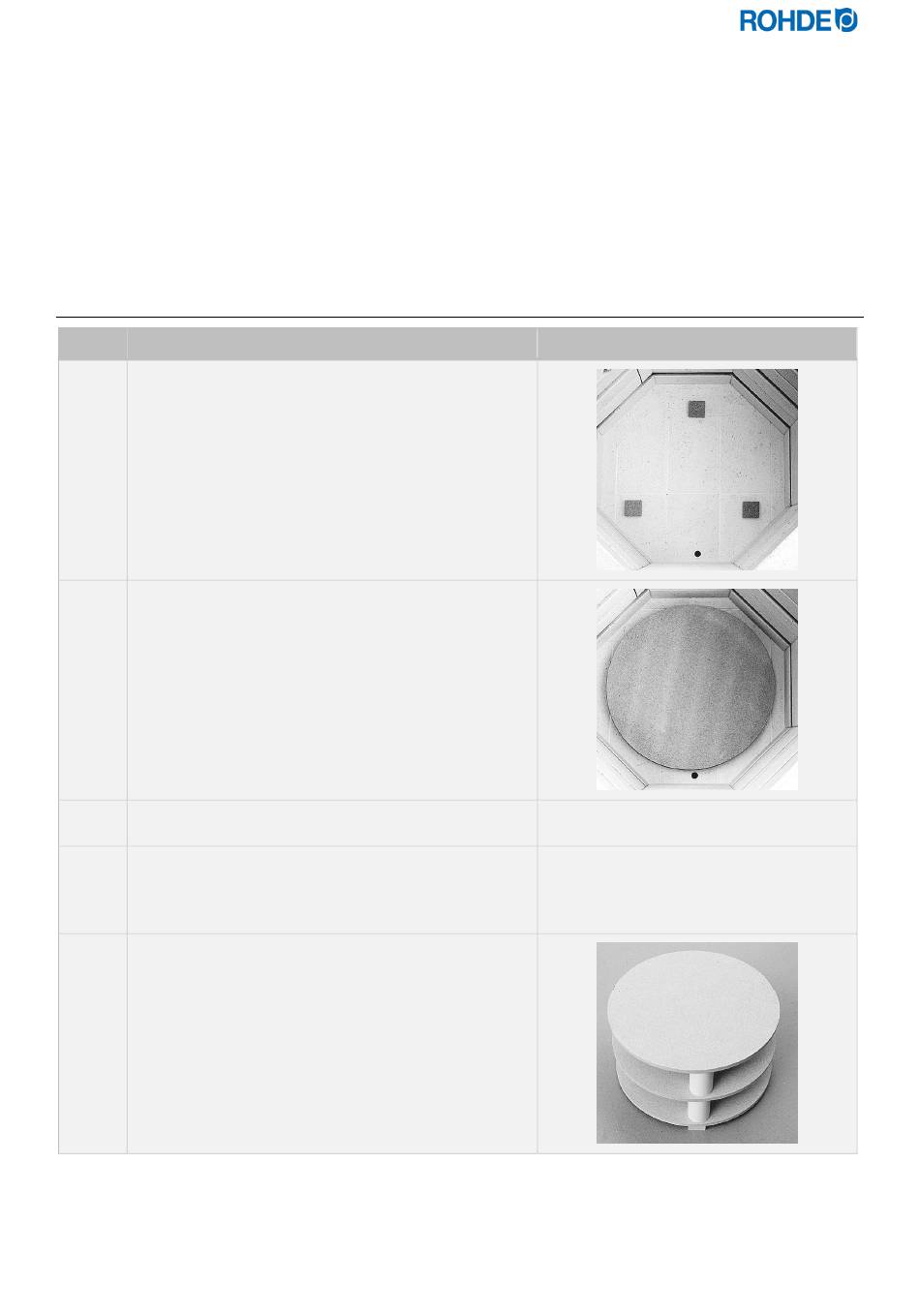

Example for positioning furniture plates

Step Action required
Place the enclosed 3 small cordierite blocks on the floor
1
of the kiln.
Then place one of the furniture plates (optional
2
equipment/accessory) on top.
Please note that all plates and stilts must be burnt-in
3
(see section 5.8)!
Do not place the plates too close to the heating
elements as this might cause the plates to crack. The
4
distance to the heating element should be at least
20 mm.
We suggest that the furniture plates are supported in
3 points. For 2-piece furniture plates 3 stilts per plate are
required. The stilts must be positioned one on top of the
5
other for each layer. Otherwise the plates might be
exposed to stress from bending and suffer from
deformation or cracking.
37 / 161 - EN -
