5.6.2.

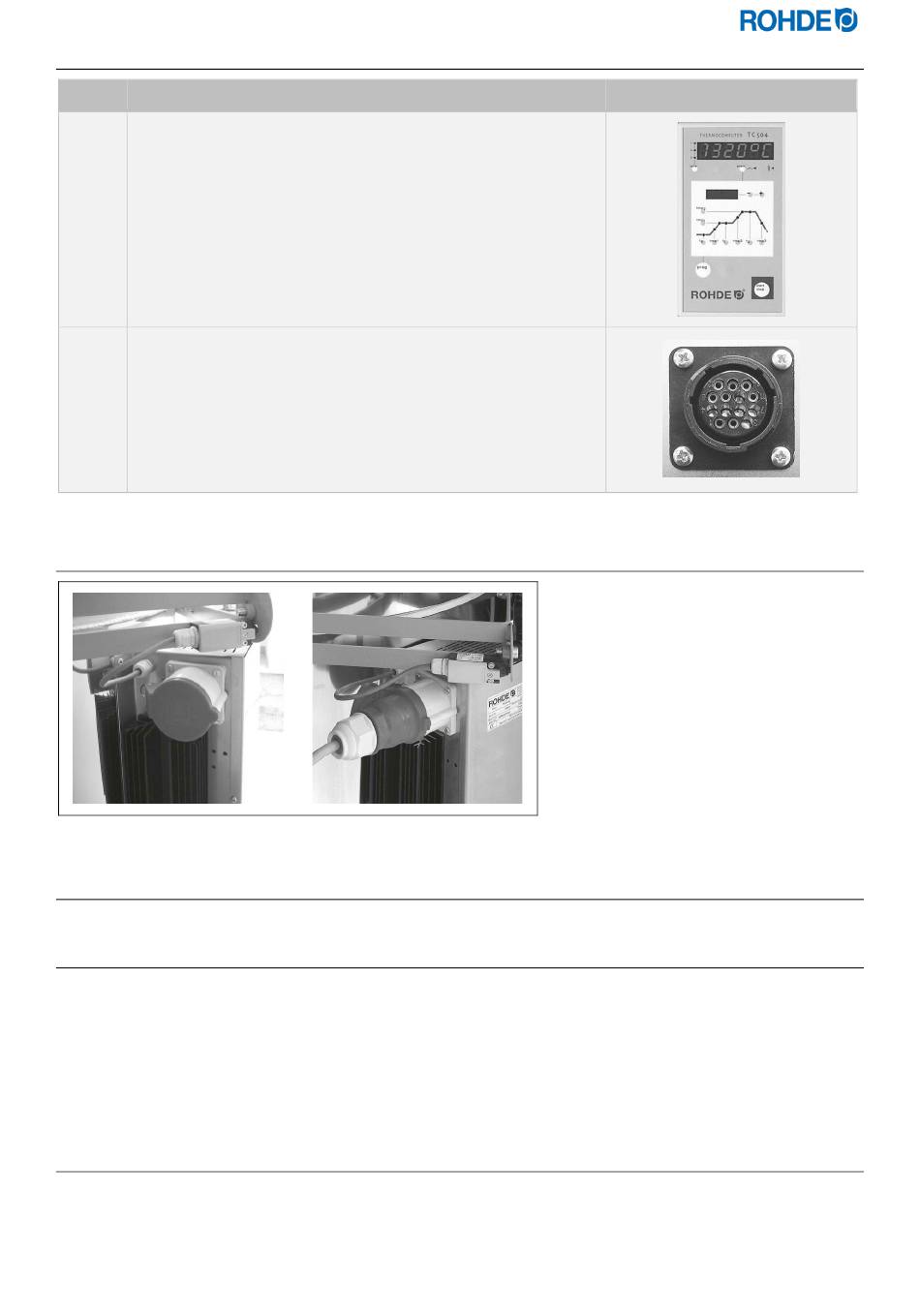

Connection of the controller

Step Action required
The controller is connected to the kiln with a 14-pin plug-and-
1
screw connection.
⇒ You will find the black socket next to the electric connection
on the side of the switch cabinet.
⇒ First plug in the black plug of the controller.
2
⇒ You might need to turn it a little until it locks into position.
Then turn the screw connection ring, in order to protect the
connection.
5.6.3.

Connection of the supplementary ring for extension

5.7.

Mounting the controller on the wall

5.7.1.

Mounting the controller TC 304

Choose a safe and easily accessible place on a wall next to the kiln. First screw the two knurled screws into the
holes indicated on the back of the control unit. They will be used later to fasten the controller in the fixing device.
Mount the holding bar of the control unit TC 304 using the 3 dowels and 3 screws, so that one fixing hole points
upwards and the other two point downwards. Make sure that the transparent protective foil is correctly aligned!
Now the control unit can be plugged into the fixing device from above. You might have to loosen the knurled screws
on the controller.
5.7.2.

Mounting other controllers

Choose a safe and easily accessible place on a wall next to the kiln. Detach the wall fixing device from the controller.
Mount the fixing device on to the wall using 2 and 2 screws. Now the control unit can be plugged into the fixing
device from above.
All connections required for extension of
extendable Toploader kilns are already
installed.
34 / 161 - EN -
Illustration
