Installation of the exhaust air

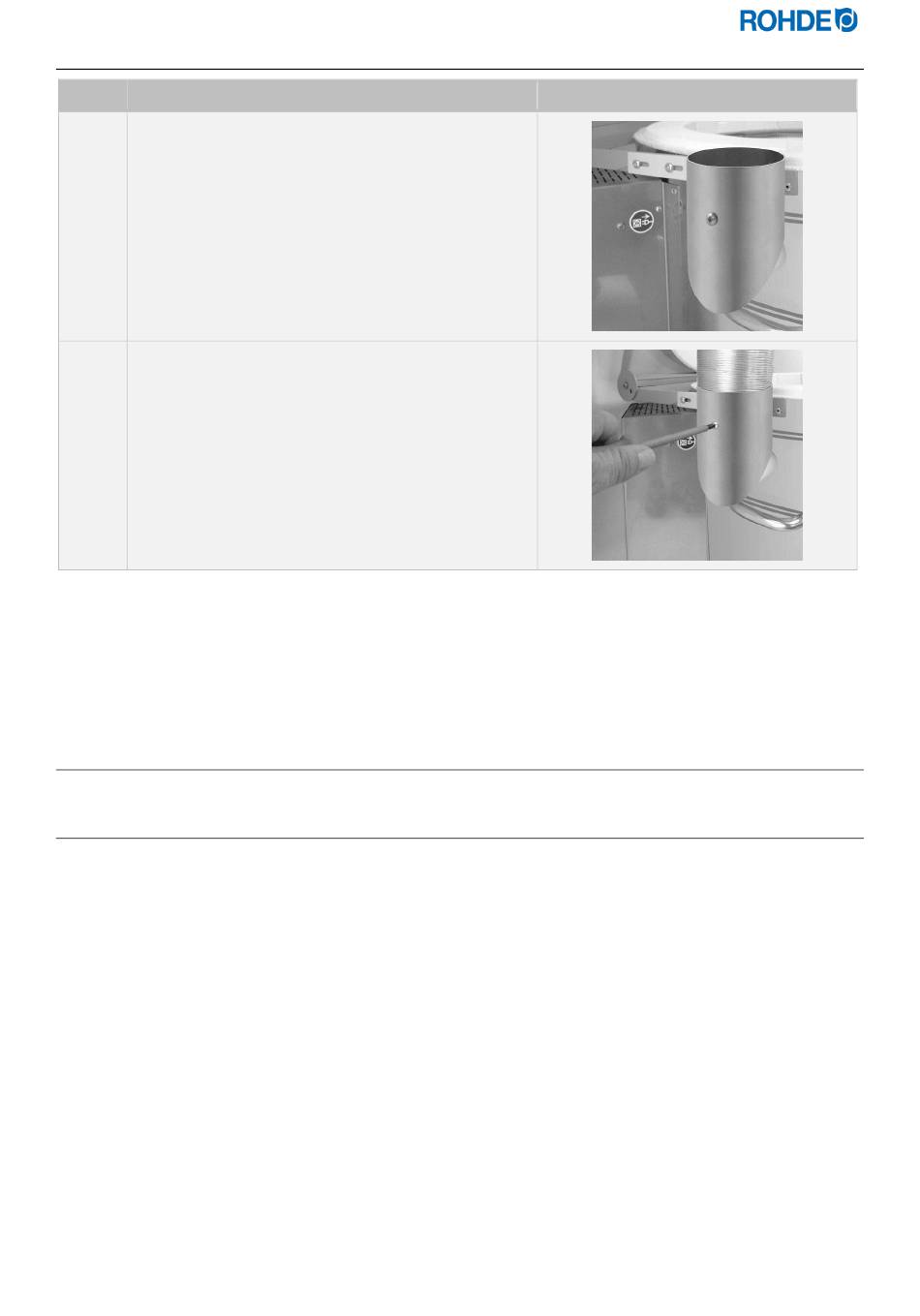

Step Action required
Screw the exhaust air socket into the hole on the left
1
side of the kiln.
The opening has been located in a position that will
allow fumes and gases to be released through an
2 exhaust air socket (optional accessory). Plug the exhaust
air tube into the exhaust air socket and use the fixing
screw to fix it to the socket.
Please note:
The exhaust socket has been designed to prevent heat from radiating against walls, surfaces or other objects.
5.6. Connection of power supply/controller & supplementary ring for extension
5.6.1.

Power supply

The kiln is equipped with a mains supply cable. The power supply data can be seen on the type plate. The power
supply must be suitable for the requirements of the kiln. The plug must be located next to the kiln.
Please note:
Do not use extension cables! The mains supply cable must not come into contact with the hot kiln!
Note:
Regional voltage fluctuations are possible and will lead to fluctuations in the nominal output. In Germany, for
instance, the nominal voltage of 230 / 400 is subject to voltage fluctuations of 10%. If the voltage drops from 230 to
210 under load, the output of the kiln will be reduced by 16%.
33 / 161 - EN -
