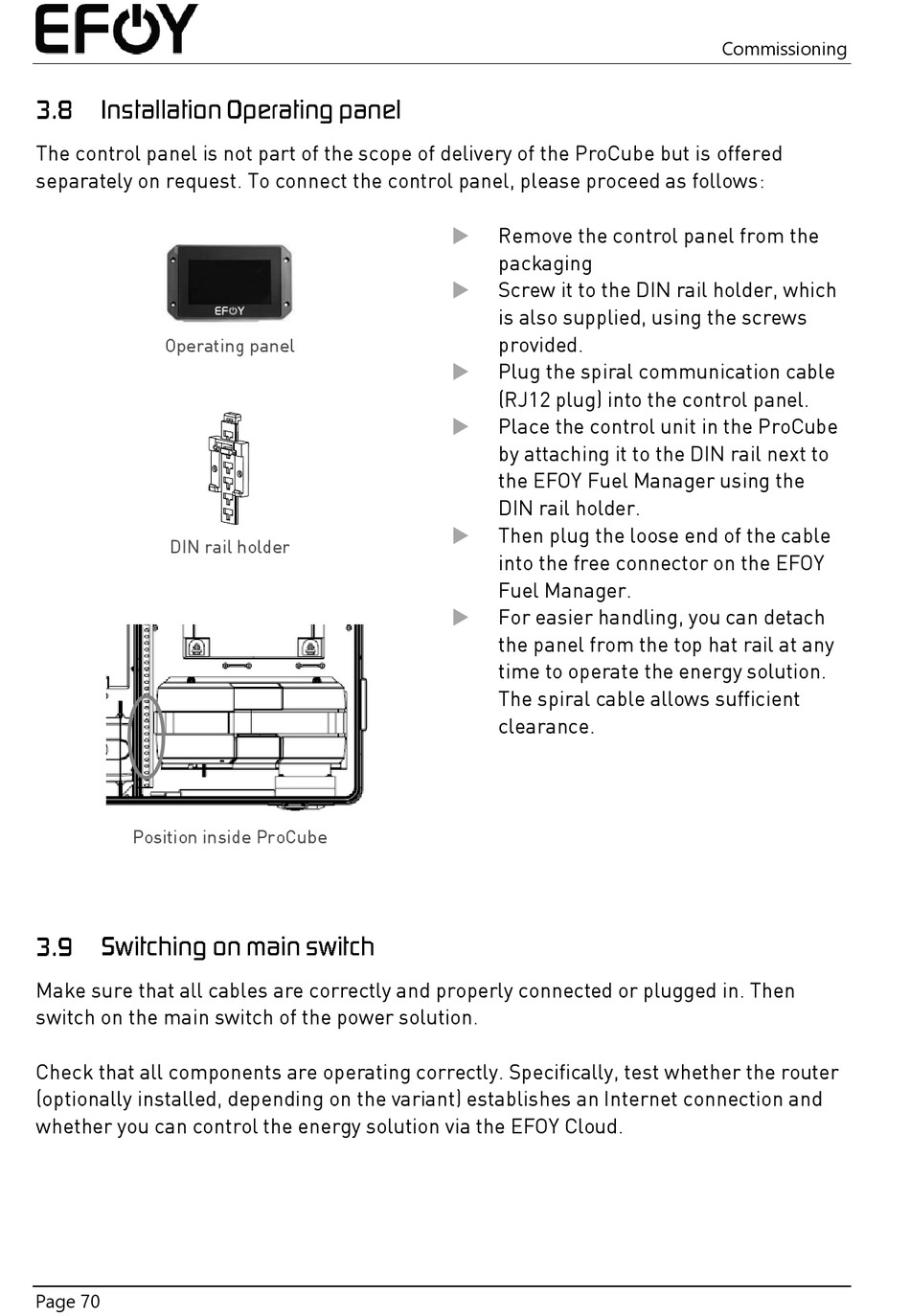

The control panel is not part of the scope of delivery of the ProCube but is offered
separately on request. To connect the control panel, please proceed as follows:
Operating panel
DIN rail holder
Position inside ProCube
Make sure that all cables are correctly and properly connected or plugged in. Then
switch on the main switch of the power solution.
Check that all components are operating correctly. Specifically, test whether the router
(optionally installed, depending on the variant) establishes an Internet connection and
whether you can control the energy solution via the EFOY Cloud.
Page 70
Remove the control panel from the
packaging
Screw it to the DIN rail holder, which
is also supplied, using the screws
provided.
Plug the spiral communication cable
(RJ12 plug) into the control panel.
Place the control unit in the ProCube
by attaching it to the DIN rail next to
the EFOY Fuel Manager using the
DIN rail holder.
Then plug the loose end of the cable
into the free connector on the EFOY
Fuel Manager.
For easier handling, you can detach
the panel from the top hat rail at any
time to operate the energy solution.
The spiral cable allows sufficient
clearance.
