Commissioning
For detailed information on the wiring of the power solution, please refer to
the enclosed wiring diagram.
Check the condition (age, state of charge) of your batteries before use. Also
check this condition regularly; after prolonged use, it may be advisable to
replace them.
When using two batteries (series or series connection), use batteries with the
same ageing status.

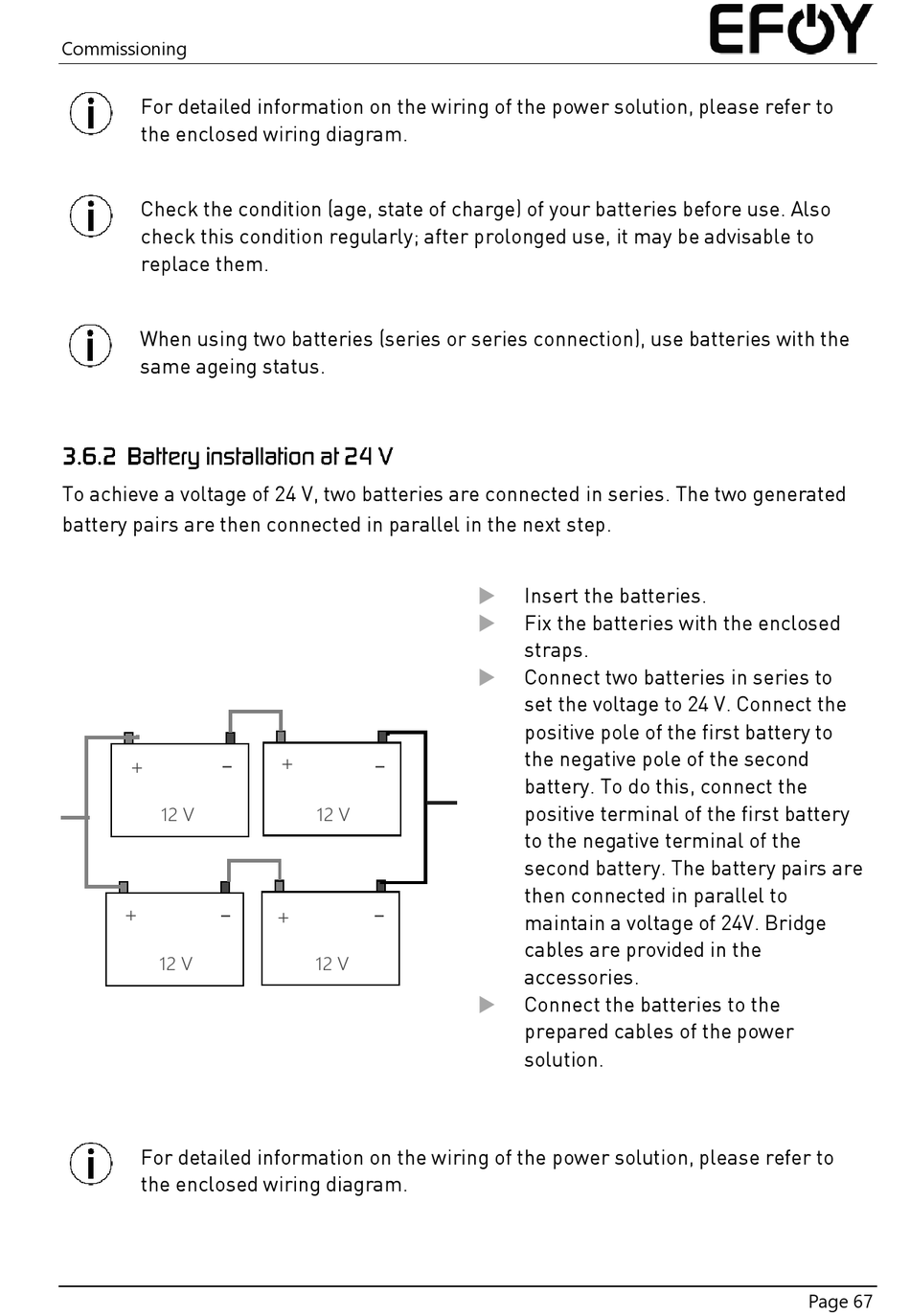

To achieve a voltage of 24 V, two batteries are connected in series. The two generated
battery pairs are then connected in parallel in the next step.
-
+
12 V
-
+
12 V
For detailed information on the wiring of the power solution, please refer to
the enclosed wiring diagram.
-
+
12 V
-
+
12 V
Insert the batteries.
Fix the batteries with the enclosed
straps.
Connect two batteries in series to
set the voltage to 24 V. Connect the
positive pole of the first battery to
the negative pole of the second
battery. To do this, connect the
positive terminal of the first battery
to the negative terminal of the
second battery. The battery pairs are
then connected in parallel to
maintain a voltage of 24V. Bridge
cables are provided in the
accessories.
Connect the batteries to the
prepared cables of the power
solution.
Page 67
