Picture shows the EFOY Fuel Manager and its connections
1)
Button (fuel cartridge exchange / reset)
2)
Power connection to the EFOY fuel cell
3)
Optional: FS2 fuel cartridge sensor connection (RJ10 socket), if available in
the ProCube.
4)
2x SFC bus connection: left socket for the prepared cable, right socket later
for the control unit
5)
Fuel cartridge connection EFOY fuel cell
6)
Tank connection
7)
LED FM status
8)
LED tank status
The following instructions will help you connect the EFOY Fuel Manager to the EFOY fuel
cartridges so that the EFOY fuel cell can be supplied with methanol.
The fuel cartridges are not located in the ProCube with this energy solution. The hoses
of the EFOY Fuel Manager must be passed through the cable gland of the EFOY ProCube
2060A-3 XF to the outside for connection.

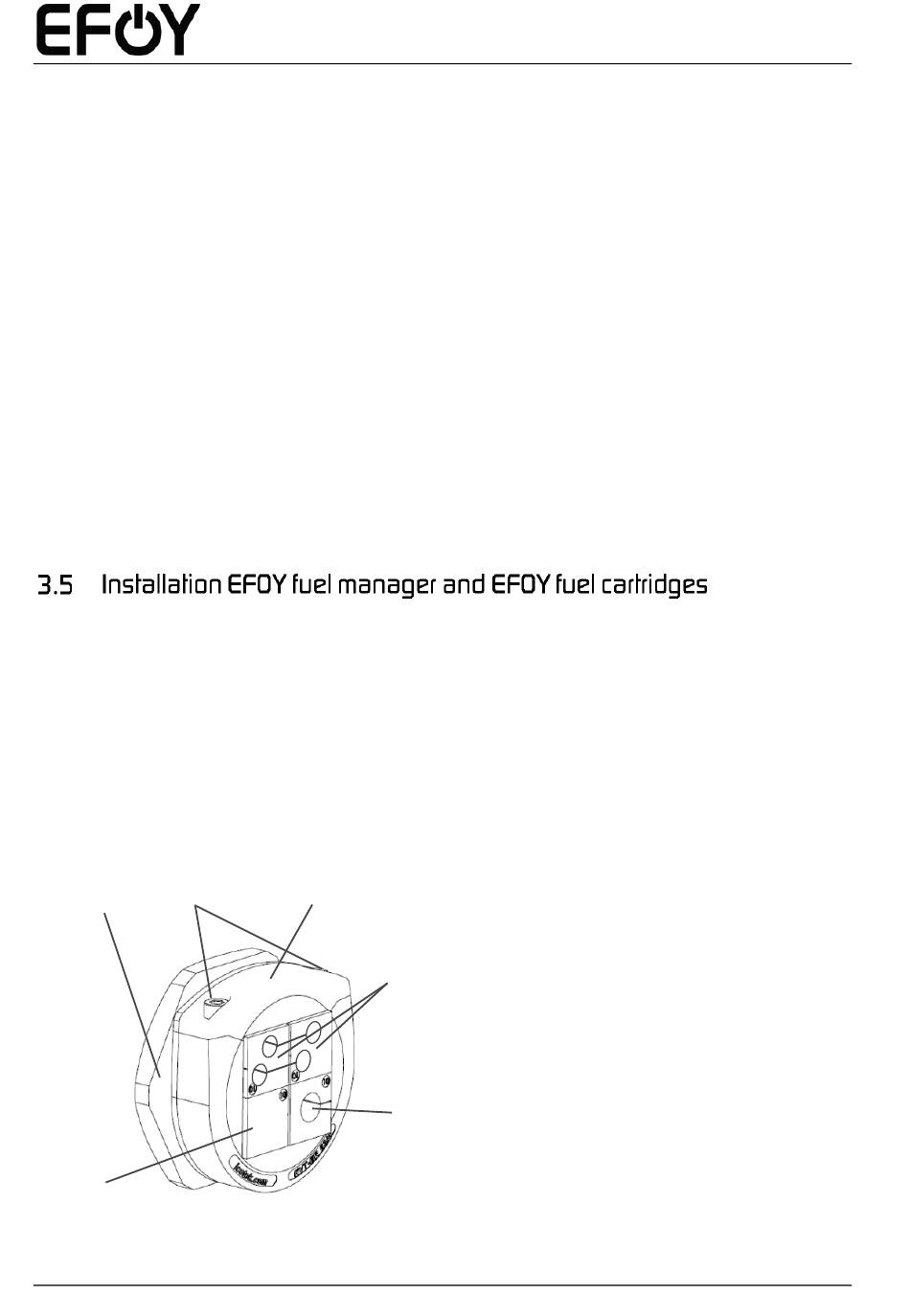

Description of the cable gland on the EFOY ProCube 2060A-3 XF:
1
3
5
Page 62
2
4
6
1.
Screws
2.
Cover
3.
Plastic nut
4.
Double plugs
5.
Blind plugs
6.
Single plug (if Fuel Sensor is
present in equipment)
Commissioning
