Commissioning

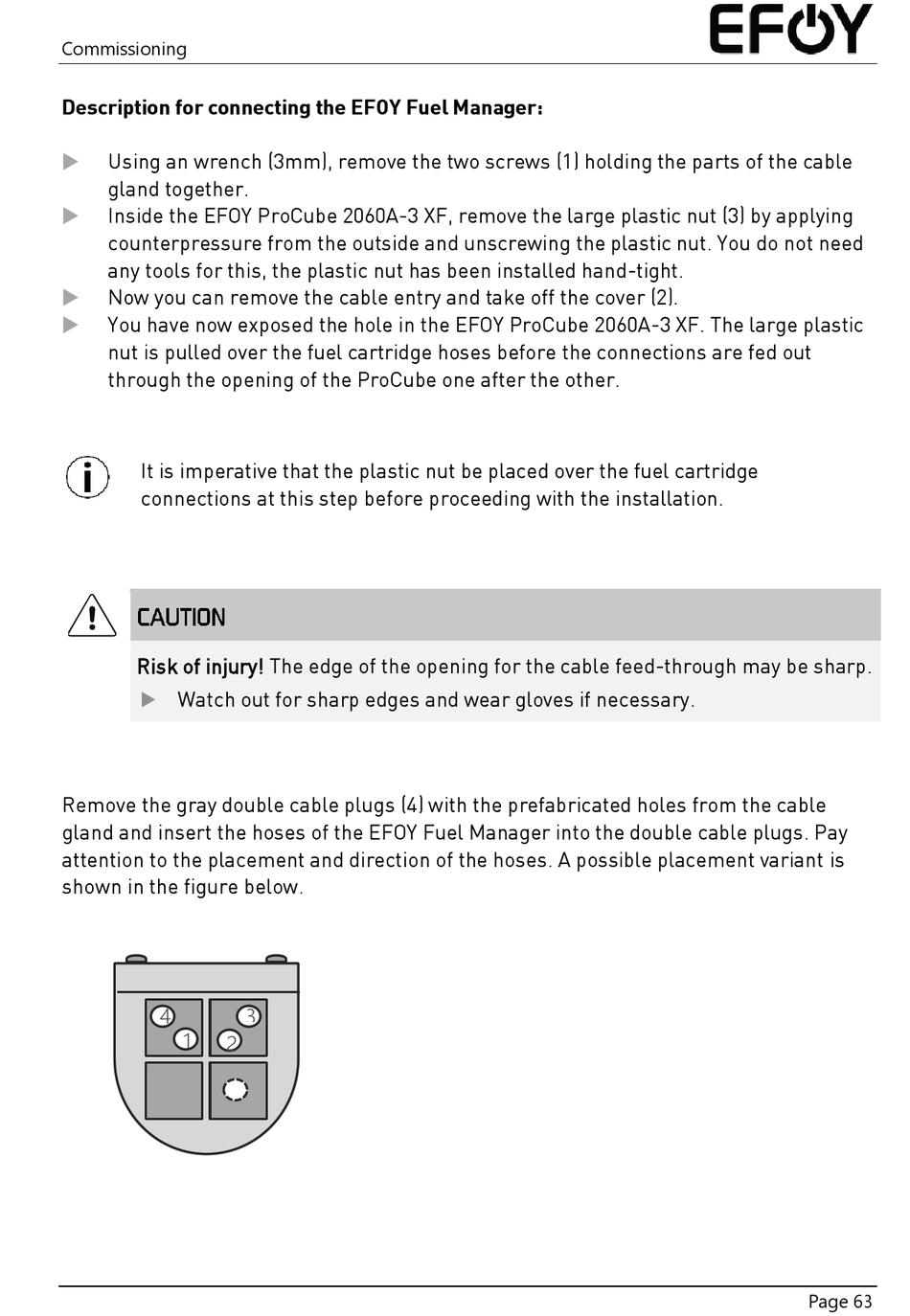

Description for connecting the EFOY Fuel Manager:

Using an wrench (3mm), remove the two screws (1) holding the parts of the cable
gland together.

Inside the EFOY ProCube 2060A-3 XF, remove the large plastic nut (3) by applying
counterpressure from the outside and unscrewing the plastic nut. You do not need
any tools for this, the plastic nut has been installed hand-tight.

Now you can remove the cable entry and take off the cover (2).

You have now exposed the hole in the EFOY ProCube 2060A-3 XF. The large plastic
nut is pulled over the fuel cartridge hoses before the connections are fed out
through the opening of the ProCube one after the other.
It is imperative that the plastic nut be placed over the fuel cartridge
connections at this step before proceeding with the installation.
Risk of injury! The edge of the opening for the cable feed-through may be sharp.

Watch out for sharp edges and wear gloves if necessary.
Remove the gray double cable plugs (4) with the prefabricated holes from the cable
gland and insert the hoses of the EFOY Fuel Manager into the double cable plugs. Pay
attention to the placement and direction of the hoses. A possible placement variant is
shown in the figure below.
4
1
2
3
