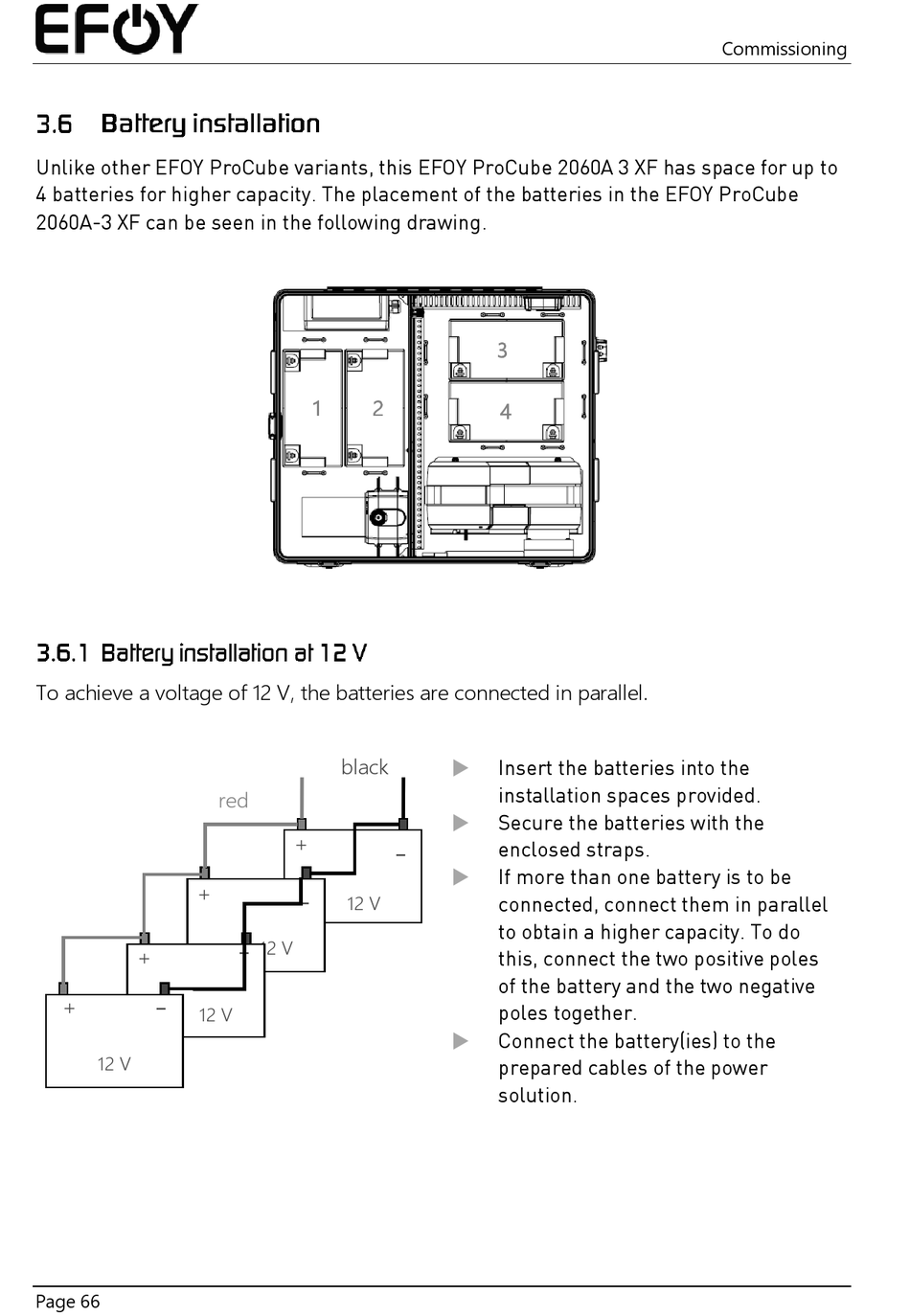

Unlike other EFOY ProCube variants, this EFOY ProCube 2060A 3 XF has space for up to
4 batteries for higher capacity. The placement of the batteries in the EFOY ProCube
2060A-3 XF can be seen in the following drawing.
To achieve a voltage of 12 V, the batteries are connected in parallel.
+
+
-
+
12 V
12 V
Page 66
1 2
black
red
+
-
12 V
-
12 V
3
4

Insert the batteries into the
installation spaces provided.

Secure the batteries with the
- enclosed straps.

If more than one battery is to be
connected, connect them in parallel
to obtain a higher capacity. To do
this, connect the two positive poles
of the battery and the two negative
poles together.

Connect the battery(ies) to the
prepared cables of the power
solution.
Commissioning
