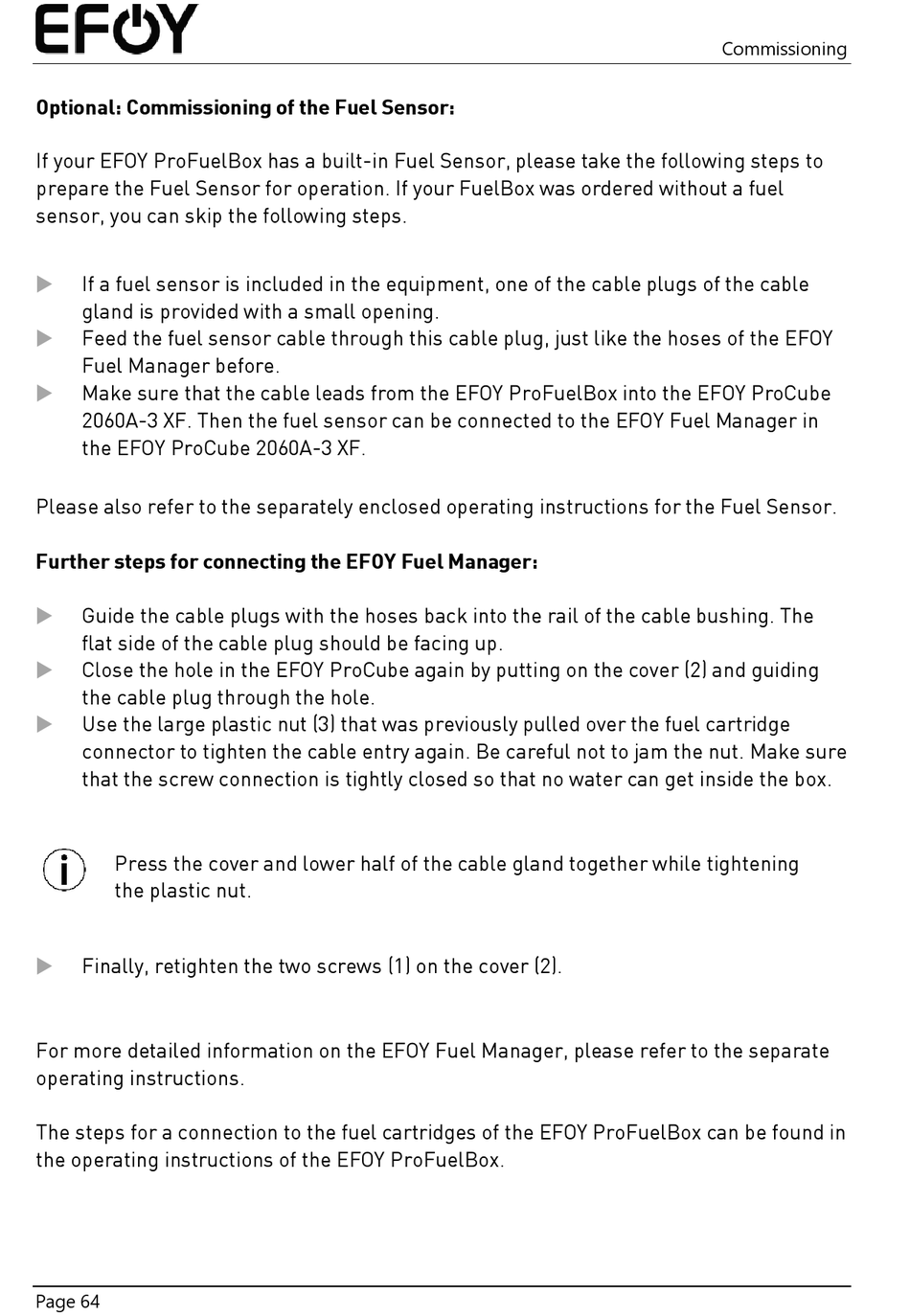

Optional: Commissioning of the Fuel Sensor:
If your EFOY ProFuelBox has a built-in Fuel Sensor, please take the following steps to
prepare the Fuel Sensor for operation. If your FuelBox was ordered without a fuel
sensor, you can skip the following steps.

If a fuel sensor is included in the equipment, one of the cable plugs of the cable
gland is provided with a small opening.

Feed the fuel sensor cable through this cable plug, just like the hoses of the EFOY
Fuel Manager before.

Make sure that the cable leads from the EFOY ProFuelBox into the EFOY ProCube
2060A-3 XF. Then the fuel sensor can be connected to the EFOY Fuel Manager in
the EFOY ProCube 2060A-3 XF.
Please also refer to the separately enclosed operating instructions for the Fuel Sensor.
Further steps for connecting the EFOY Fuel Manager:

Guide the cable plugs with the hoses back into the rail of the cable bushing. The
flat side of the cable plug should be facing up.

Close the hole in the EFOY ProCube again by putting on the cover (2) and guiding
the cable plug through the hole.

Use the large plastic nut (3) that was previously pulled over the fuel cartridge
connector to tighten the cable entry again. Be careful not to jam the nut. Make sure
that the screw connection is tightly closed so that no water can get inside the box.
Press the cover and lower half of the cable gland together while tightening
the plastic nut.

Finally, retighten the two screws (1) on the cover (2).
For more detailed information on the EFOY Fuel Manager, please refer to the separate
operating instructions.
The steps for a connection to the fuel cartridges of the EFOY ProFuelBox can be found in
the operating instructions of the EFOY ProFuelBox.
