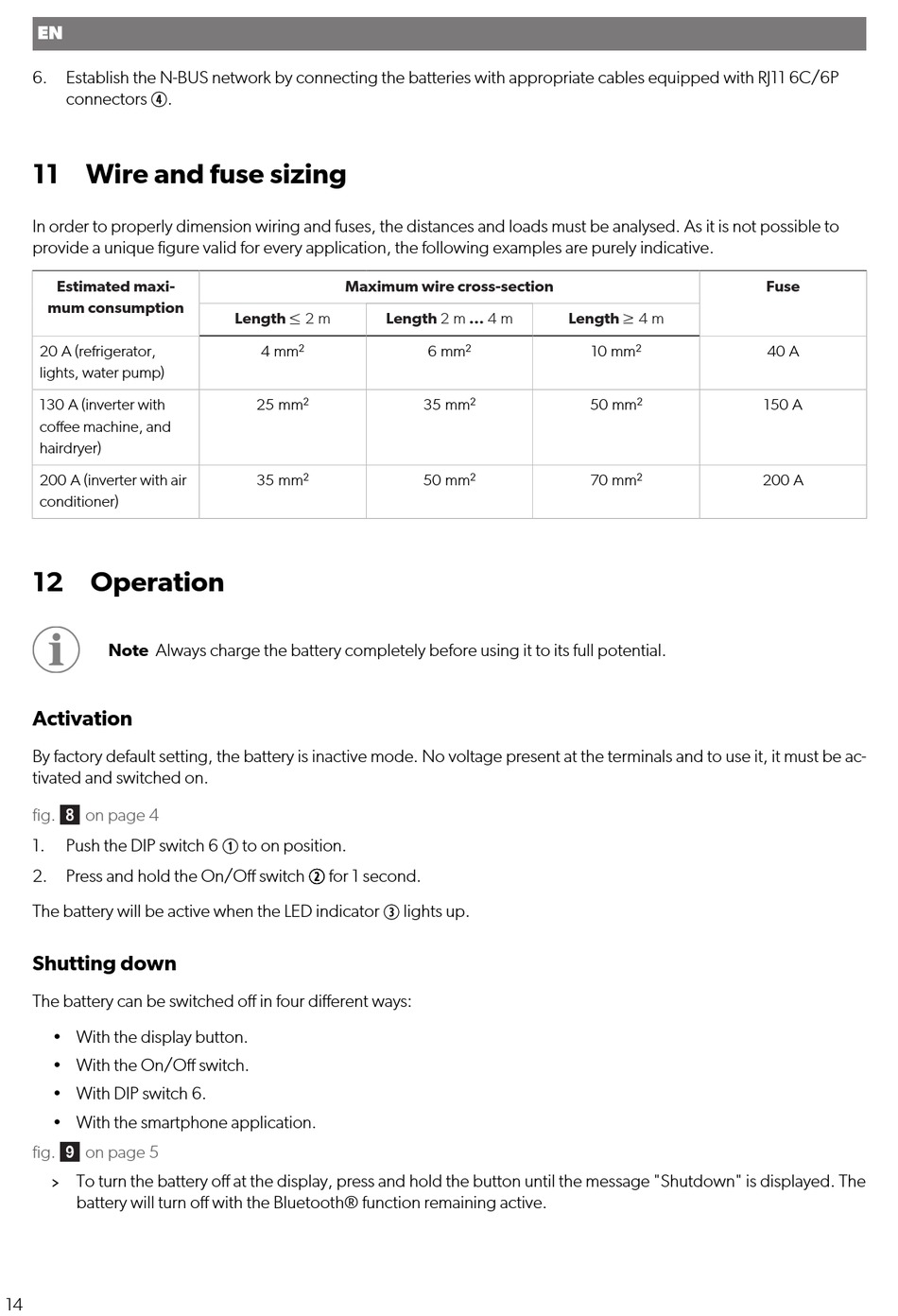

EN
6. Establish the N-BUS network by connecting the batteries with appropriate cables equipped with RJ11 6C/6P
connectors .

11 Wire and fuse sizing

In order to properly dimension wiring and fuses, the distances and loads must be analysed. As it is not possible to
provide a unique figure valid for every application, the following examples are purely indicative.
Estimated maxi-
mum consumption
20 A (refrigerator,
lights, water pump)
130 A (inverter with
coffee machine, and
hairdryer)
200 A (inverter with air
conditioner)

12 Operation

Note Always charge the battery completely before using it to its full potential.
Activation
By factory default setting, the battery is inactive mode. No voltage present at the terminals and to use it, it must be ac-
tivated and switched on.
fig.  on page 4
1. Push the DIP switch 6
2. Press and hold the On/Off switch
The battery will be active when the LED indicator

Shutting down

The battery can be switched off in four different ways:
• With the display button.
• With the On/Off switch.
• With DIP switch 6.
• With the smartphone application.
fig.  on page 5
To turn the battery off at the display, press and hold the button until the message "Shutdown" is displayed. The
battery will turn off with the Bluetooth® function remaining active.
14
Length ≤ 2 m
Maximum wire cross-section
Length 2 m ... 4 m
4 mm²
25 mm²
35 mm²
to on position.
for 1 second.
lights up.
Length ≥ 4 m
6 mm² 10 mm²
35 mm² 50 mm²
50 mm² 70 mm²
Fuse
40 A
150 A
200 A
