Installation

Network interfaces

NOTE:
You need to connect the central module to one or two local networks to
configure the central module via Config Panel web application and use the
enhanced network functionalities (for example authentication against directory
services, time sync via NTP server, netfilter or syslog).
IMPORTANT:
If you change the configuration of the Dynamic Ports in the web appli-
cation, or if you enable the signalling of the Dynamic Ports modes, end the connec-
tion to the web application and remove the twisted-pair cable from the network port
at the central module.

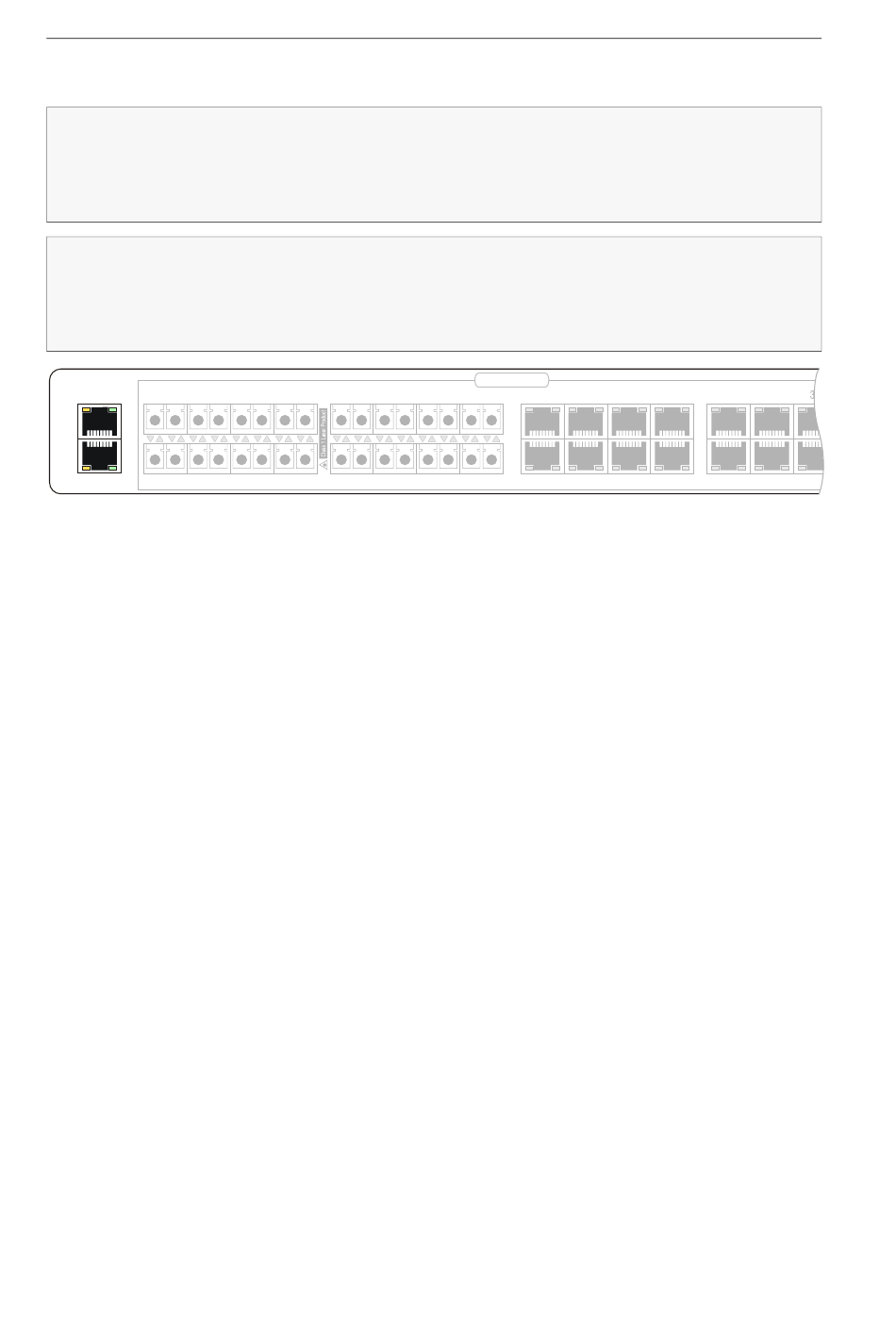

Network B
2 4
Tx Rx Tx Rx
Network A Rx 1 Tx Rx 3 Tx
Network A: If required, plug in a category 5e (or better) twisted-pair cable, which is
available as accessory.
Connect the other end of the cable to a network interface of the local network.
Network B: If required, plug in a category 5e (or better) twisted-pair cable, which is
available as accessory.
Connect the other end of the cable to a network interface of the local network.
11 · G&D ControlCenter-Compact
6 8 10 12
Tx Rx Tx Rx Tx Rx Tx Rx
Rx 5 Tx Rx 7 Tx Rx 9 Tx Rx 11 Tx
Dynamic Ports
14 16 18 20
Tx Rx Tx Rx
Rx 13 Tx Rx 15 Tx 17 19
22 24 26 28
21 23 25 27 29
