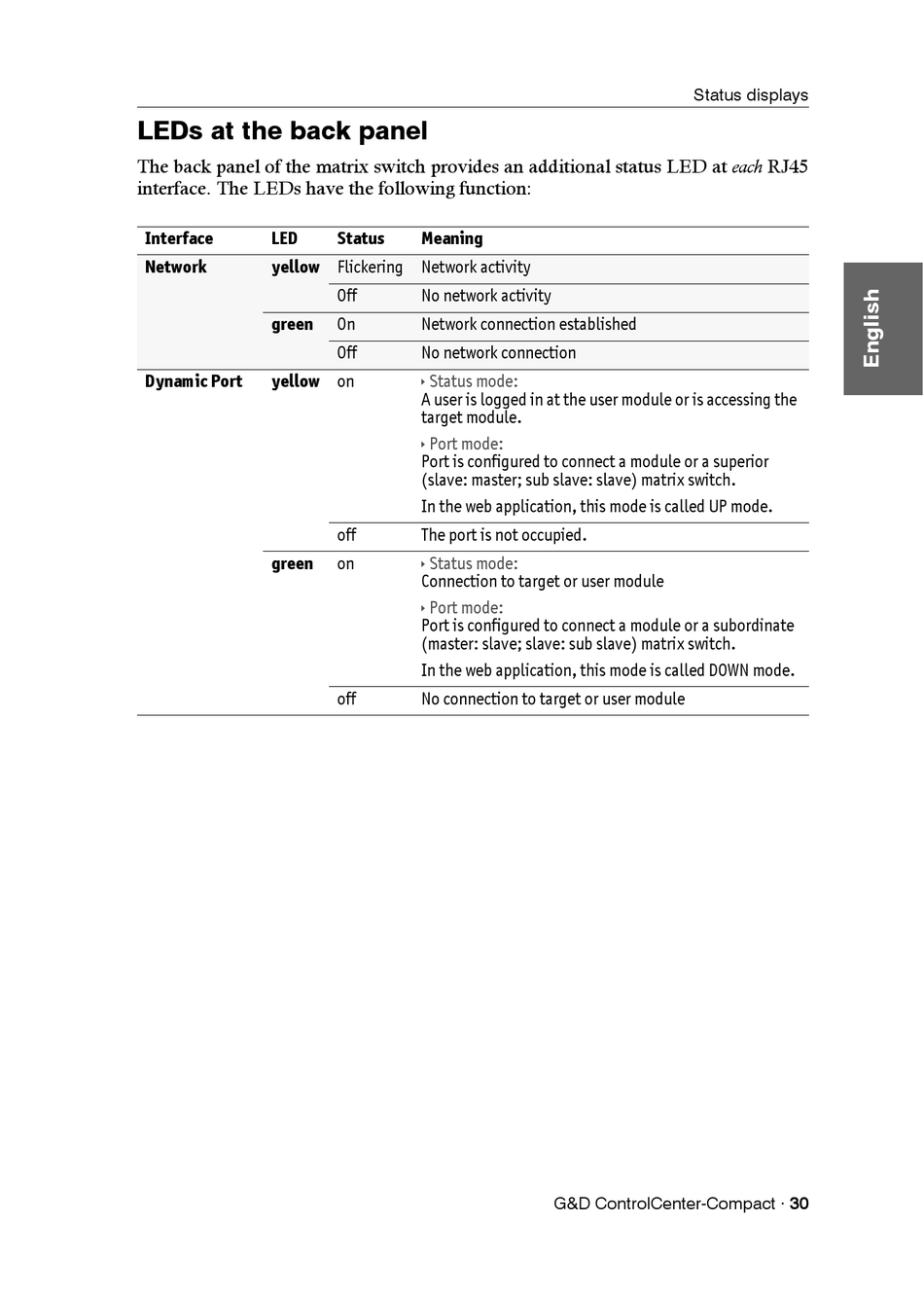

LEDs at the back panel
The back panel of the matrix switch provides an additional status LED at each RJ45
interface. The LEDs have the following function:
Interface LED
Network yellow Flickering Network activity
green
Dynamic Port yellow on
green
Status Meaning
Off No network activity
On Network connection established
Off No network connection
 Status mode:
A user is logged in at the user module or is accessing the
target module.
 Port mode:
Port is configured to connect a module or a superior
(slave: master; sub slave: slave) matrix switch.
In the web application, this mode is called UP mode.
off The port is not occupied.
on  Status mode:
Connection to target or user module
 Port mode:
Port is configured to connect a module or a subordinate
(master: slave; slave: sub slave) matrix switch.
In the web application, this mode is called DOWN mode.
off No connection to target or user module
