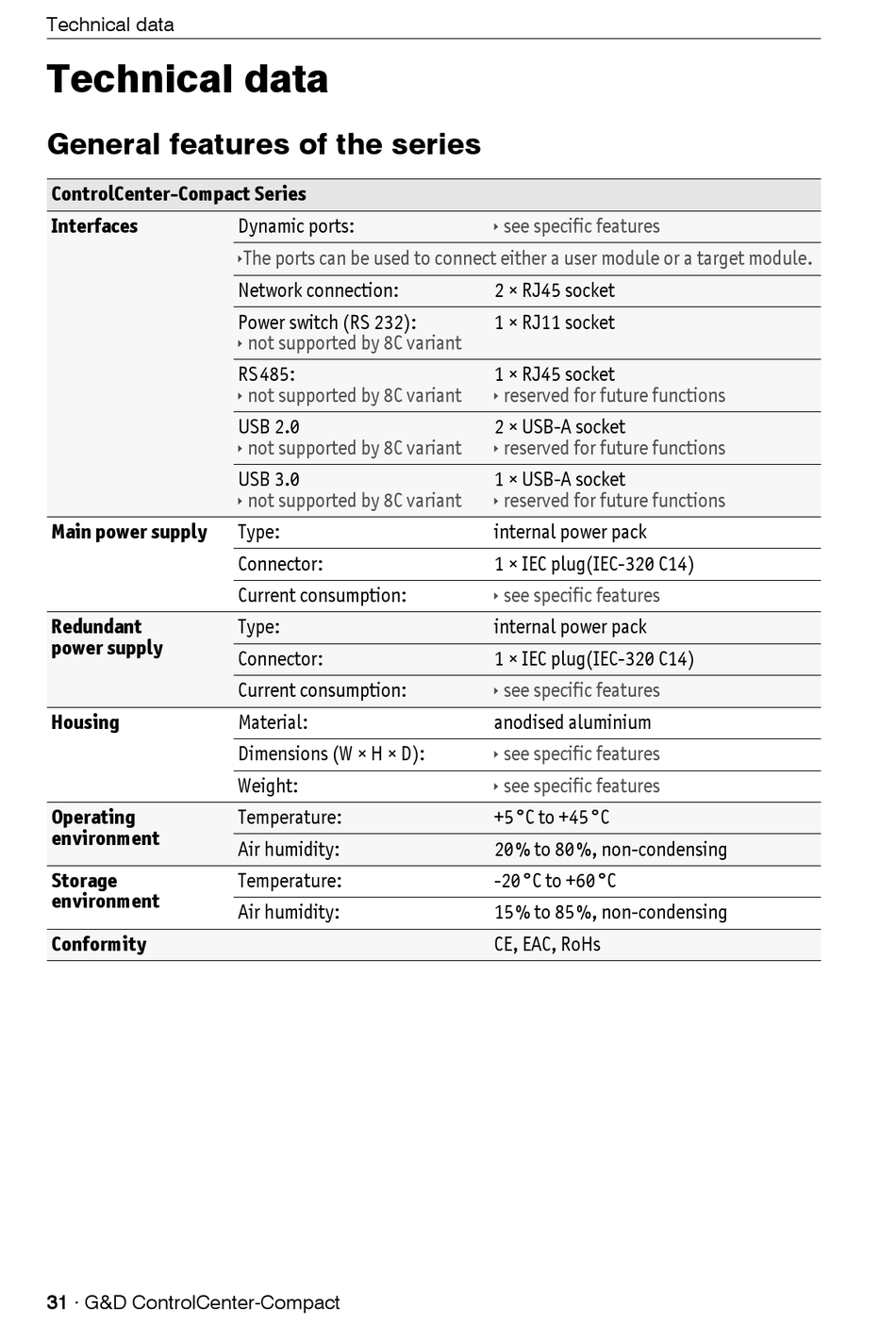

Technical data

Technical data

General features of the series

ControlCenter-Compact Series
Interfaces
Main power supply
Redundant
power supply
Housing
Operating
environment
Storage
environment
Conformity
31 · G&D ControlCenter-Compact
Dynamic ports:
The ports can be used to connect either a user module or a target module.
Network connection:
Power switch (RS 232):
 not supported by 8C variant
RS 485:
 not supported by 8C variant
USB 2.0
 not supported by 8C variant
USB 3.0
 not supported by 8C variant
Type:
Connector:
Current consumption:
Type:
Connector:
Current consumption:
Material:
Dimensions (W × H × D):
Weight:
Temperature:
Air humidity:
Temperature:
Air humidity:
 see specific features
2 × RJ45 socket
1 × RJ11 socket
1 × RJ45 socket
 reserved for future functions
2 × USB-A socket
 reserved for future functions
1 × USB-A socket
 reserved for future functions
internal power pack
1 × IEC plug(IEC-320 C14)
 see specific features
internal power pack
1 × IEC plug(IEC-320 C14)
 see specific features
anodised aluminium
 see specific features
 see specific features
+5 °C to +45 °C
20 % to 80 %, non-condensing
-20 °C to +60 °C
15 % to 85 %, non-condensing
CE, EAC, RoHs
