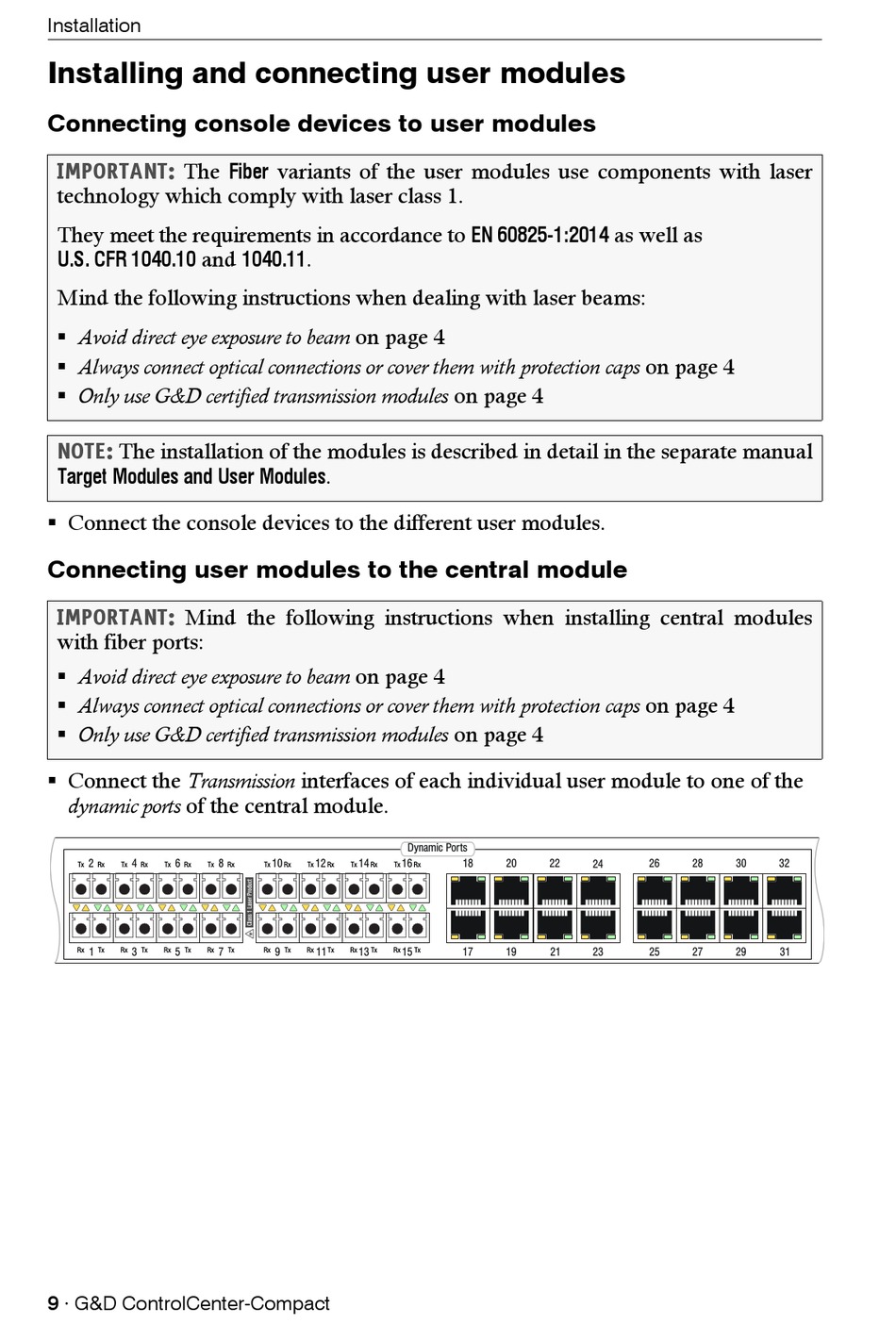

Installation

Installing and connecting user modules

Connecting console devices to user modules

IMPORTANT:
The
technology which comply with laser class 1.
They meet the requirements in accordance to
and
U.S. CFR 1040.10
Mind the following instructions when dealing with laser beams:
 Avoid direct eye exposure to beam on page 4
 Always connect optical connections or cover them with protection caps on page 4
 Only use G&D certified transmission modules on page 4
NOTE: The installation of the modules is described in detail in the separate manual
Target Modules and User Modules
 Connect the console devices to the different user modules.

Connecting user modules to the central module

IMPORTANT:
Mind the following instructions when installing central modules
with fiber ports:
 Avoid direct eye exposure to beam on page 4
 Always connect optical connections or cover them with protection caps on page 4
 Only use G&D certified transmission modules on page 4
 Connect the Transmission interfaces of each individual user module to one of the
dynamic ports of the central module.
4 6
2
Tx Rx Tx Rx Tx Rx Tx
Rx 1 Tx Rx 3 Tx Rx 5 Tx Rx
9 · G&D ControlCenter-Compact
Fiber variants of the user modules use components with laser
.
1040.11
.
8 10 12 14
Rx Tx Rx Tx Rx Tx Rx
7 Tx Rx 9 Tx Rx 11 Tx Rx 13 Tx
EN 60825-1:2014
Dynamic Ports
16 18 20
22
Tx Rx
Rx 15 Tx 17 19 21
as well as
26 28 30
24
23 25 27 29
32
31
