Removing the Mounting Unit

Removing the Lower Ram

Changing the Mounting Unit

LaboPress-1
Instruction Manual

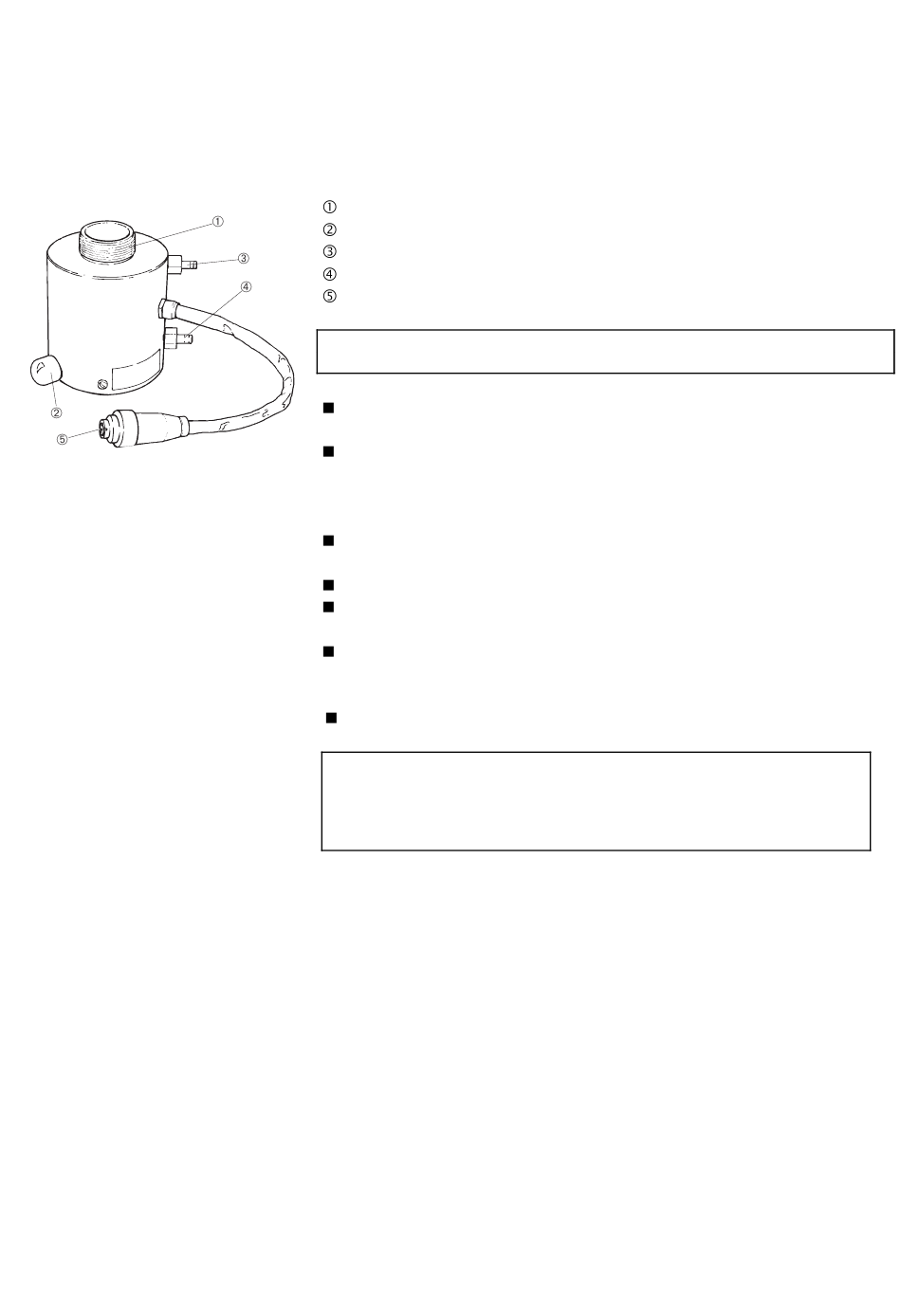

Mounting cylinder
Fixation screw
Upper quick coupling for cooling water
Lower quick coupling for cooling water
Plug
Do not operate the machine whilst removing the mounting unit
Disconnect the plug (pos. 5) from the socket. Loosen the
coupling nut and pull.
Disconnect the tube with elbow quick coupling on the upper
quick coupling on the mounting unit (pos. 3). Pull the ring.
Wait 5 seconds to allow the water to flow out of the cooling
coil.
Disconnect the tube with straight quick coupling on the lower
quick coupling on the mounting unit (pos. 4). Pull the ring.
Unscrew the fixation screw about 10 mm.
Turn the mounting unit in an anti-clockwise direction until it
stops.
Lift the mounting unit.
Push the piston pin out of the lower ram and lift it off.
The axle journal is part of the machine's safety mechanism to protect
against damage to the machine. Please see: Maintenance. If it breaks,
it must only be replaced with a Struers replacement part or the safety
mechanism may not function.
Follow the instructions for Removing the Mounting Unit and
Installing the Mounting Unit.
IMPORTANT
IMPORTANT
7
