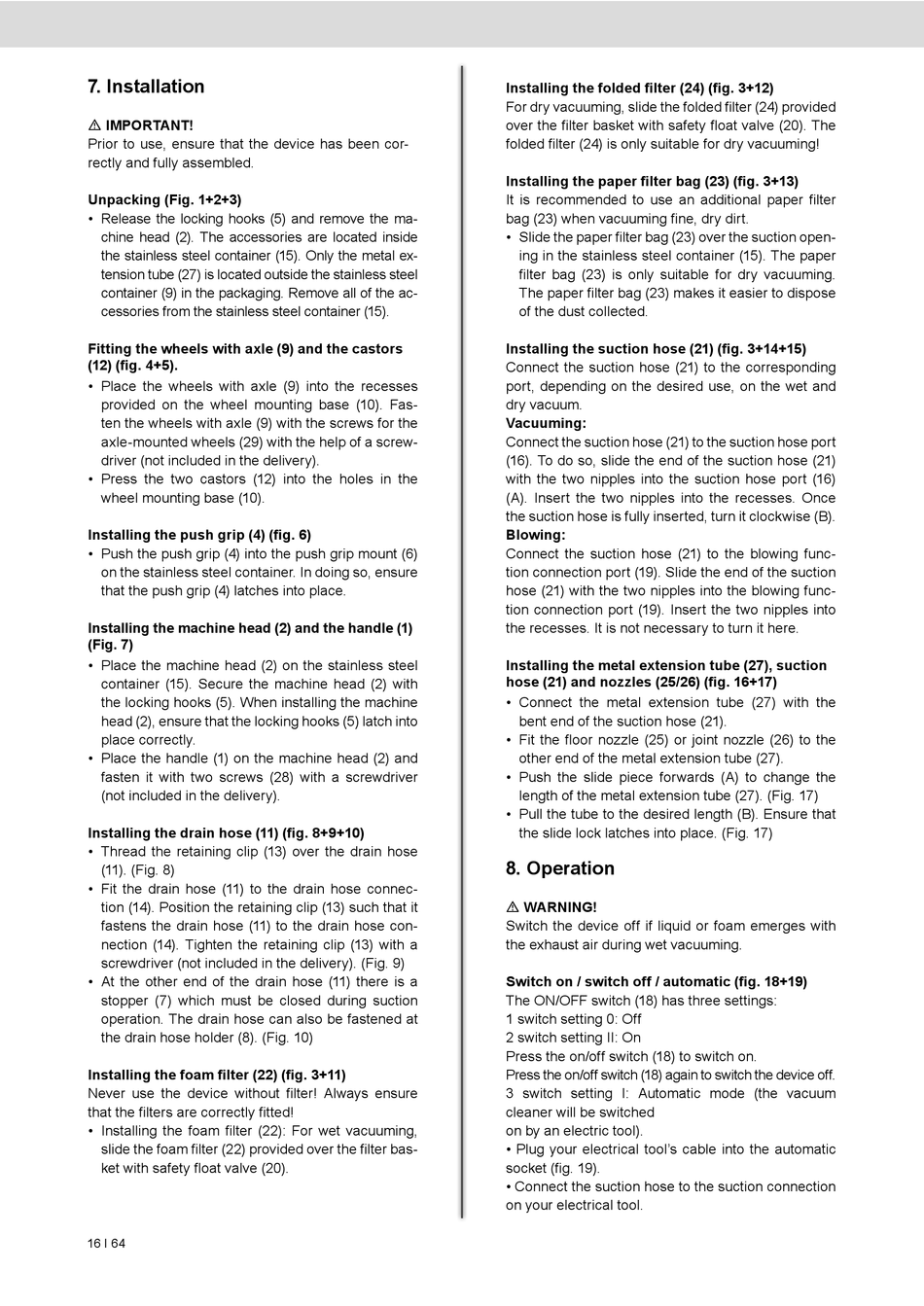

7. Installation
m IMPORTANT!
Prior to use, ensure that the device has been cor-
rectly and fully assembled.
Unpacking (Fig. 1+2+3)
• Release the locking hooks (5) and remove the ma-
chine head (2). The accessories are located inside
the stainless steel container (15). Only the metal ex-
tension tube (27) is located outside the stainless steel
container (9) in the packaging. Remove all of the ac-
cessories from the stainless steel container (15).
Fitting the wheels with axle (9) and the castors
(12) (fig. 4+5).
• Place the wheels with axle (9) into the recesses
provided on the wheel mounting base (10). Fas-
ten the wheels with axle (9) with the screws for the
axle-mounted wheels (29) with the help of a screw-
driver (not included in the delivery).
• Press the two castors (12) into the holes in the
wheel mounting base (10).
Installing the push grip (4) (fig. 6)
• Push the push grip (4) into the push grip mount (6)
on the stainless steel container. In doing so, ensure
that the push grip (4) latches into place.
Installing the machine head (2) and the handle (1)
(Fig. 7)
• Place the machine head (2) on the stainless steel
container (15). Secure the machine head (2) with
the locking hooks (5). When installing the machine
head (2), ensure that the locking hooks (5) latch into
place correctly.
• Place the handle (1) on the machine head (2) and
fasten it with two screws (28) with a screwdriver
(not included in the delivery).
Installing the drain hose (11) (fig. 8+9+10)
• Thread the retaining clip (13) over the drain hose
(11). (Fig. 8)
• Fit the drain hose (11) to the drain hose connec-
tion (14). Position the retaining clip (13) such that it
fastens the drain hose (11) to the drain hose con-
nection (14). Tighten the retaining clip (13) with a
screwdriver (not included in the delivery). (Fig. 9)
• At the other end of the drain hose (11) there is a
stopper (7) which must be closed during suction
operation. The drain hose can also be fastened at
the drain hose holder (8). (Fig. 10)
Installing the foam filter (22) (fig. 3+11)
Never use the device without filter! Always ensure
that the filters are correctly fitted!
• Installing the foam filter (22): For wet vacuuming,
slide the foam filter (22) provided over the filter bas-
ket with safety float valve (20).
16 І 64
Installing the folded filter (24) (fig. 3+12)
For dry vacuuming, slide the folded filter (24) provided
over the filter basket with safety float valve (20). The
folded filter (24) is only suitable for dry vacuuming!
Installing the paper filter bag (23) (fig. 3+13)
It is recommended to use an additional paper filter
bag (23) when vacuuming fine, dry dirt.
• Slide the paper filter bag (23) over the suction open-
ing in the stainless steel container (15). The paper
filter bag (23) is only suitable for dry vacuuming.
The paper filter bag (23) makes it easier to dispose
of the dust collected.
Installing the suction hose (21) (fig. 3+14+15)
Connect the suction hose (21) to the corresponding
port, depending on the desired use, on the wet and
dry vacuum.
Vacuuming:
Connect the suction hose (21) to the suction hose port
(16). To do so, slide the end of the suction hose (21)
with the two nipples into the suction hose port (16)
(A). Insert the two nipples into the recesses. Once
the suction hose is fully inserted, turn it clockwise (B).
Blowing:
Connect the suction hose (21) to the blowing func-
tion connection port (19). Slide the end of the suction
hose (21) with the two nipples into the blowing func-
tion connection port (19). Insert the two nipples into
the recesses. It is not necessary to turn it here.
Installing the metal extension tube (27), suction
hose (21) and nozzles (25/26) (fig. 16+17)
• Connect the metal extension tube (27) with the
bent end of the suction hose (21).
• Fit the floor nozzle (25) or joint nozzle (26) to the
other end of the metal extension tube (27).
• Push the slide piece forwards (A) to change the
length of the metal extension tube (27). (Fig. 17)
• Pull the tube to the desired length (B). Ensure that
the slide lock latches into place. (Fig. 17)
8. Operation
m WARNING!
Switch the device off if liquid or foam emerges with
the exhaust air during wet vacuuming.
Switch on / switch off / automatic (fig. 18+19)
The ON/OFF switch (18) has three settings:
1 switch setting 0: Off
2 switch setting II: On
Press the on/off switch (18) to switch on.
Press the on/off switch (18) again to switch the device off.
3 switch setting I: Automatic mode (the vacuum
cleaner will be switched
on by an electric tool).
• Plug your electrical tool's cable into the automatic
socket (fig. 19).
• Connect the suction hose to the suction connection
on your electrical tool.
