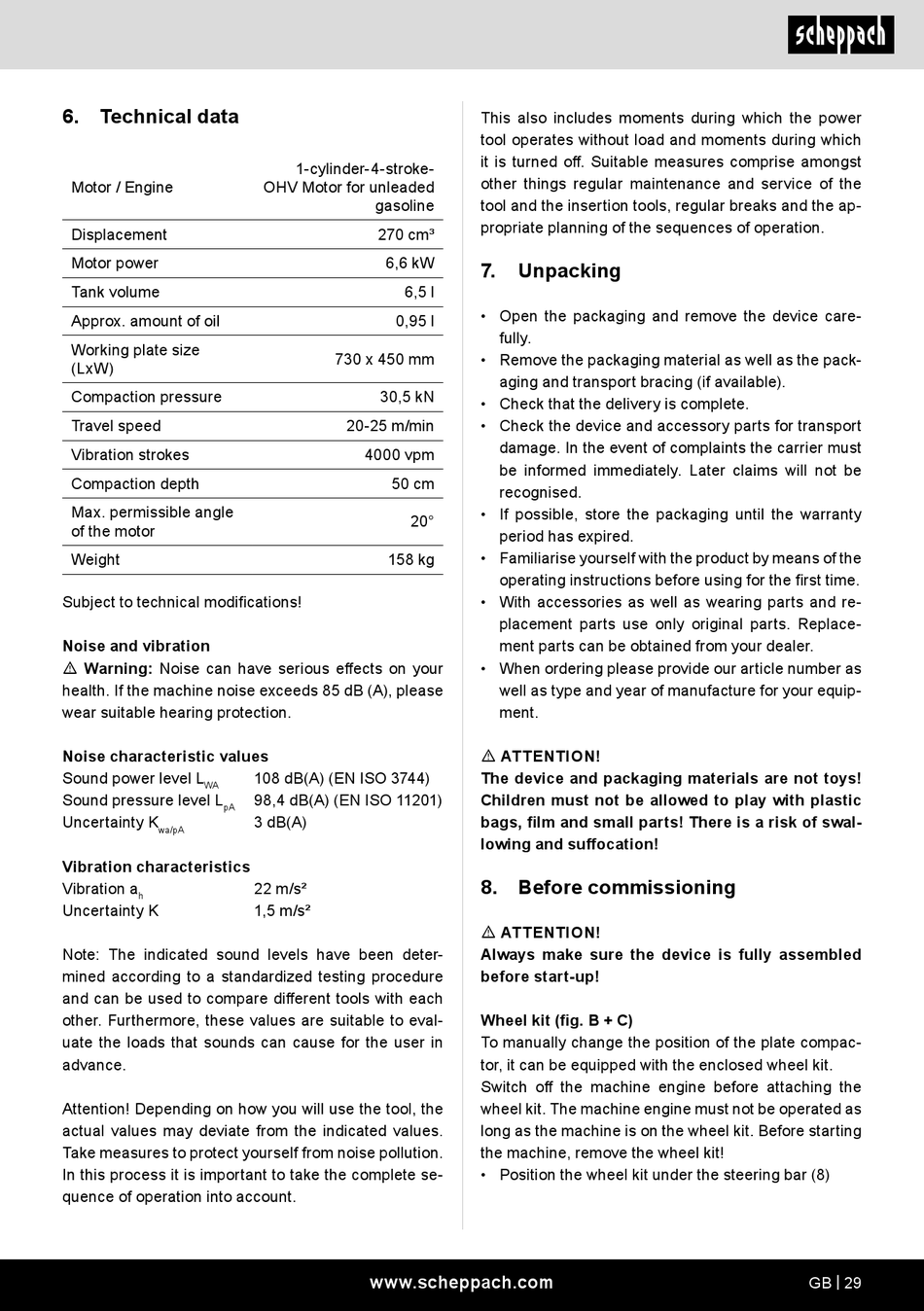

6. Technical data

Motor / Engine
Displacement
Motor power
Tank volume
Approx. amount of oil
Working plate size
(LxW)
Compaction pressure
Travel speed
Vibration strokes
Compaction depth
Max. permissible angle
of the motor
Weight
Subject to technical modifications!
Noise and vibration
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB (A), please
wear suitable hearing protection.
Noise characteristic values
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
wa/pA
Vibration characteristics
Vibration a
h
Uncertainty K
Note: The indicated sound levels have been deter-
mined according to a standardized testing procedure
and can be used to compare different tools with each
other. Furthermore, these values are suitable to eval-
uate the loads that sounds can cause for the user in
advance.
Attention! Depending on how you will use the tool, the
actual values may deviate from the indicated values.
Take measures to protect yourself from noise pollution.
In this process it is important to take the complete se-
quence of operation into account.
1-cylinder-4-stroke-
OHV Motor for unleaded
gasoline
270 cm³
6,6 kW
6,5 l
0,95 l
730 x 450 mm
30,5 kN
20-25 m/min
4000 vpm
50 cm
20°
158 kg
108 dB(A) (EN ISO 3744)
98,4 dB(A) (EN ISO 11201)
3 dB(A)
22 m/s²
1,5 m/s²
www.scheppach.com
This also includes moments during which the power
tool operates without load and moments during which
it is turned off. Suitable measures comprise amongst
other things regular maintenance and service of the
tool and the insertion tools, regular breaks and the ap-
propriate planning of the sequences of operation.
7.

Unpacking

• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the pack-
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, store the packaging until the warranty
period has expired.
• Familiarise yourself with the product by means of the
operating instructions before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your equip-
ment.
m ATTENTION!
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!

8. Before commissioning

m ATTENTION!
Always make sure the device is fully assembled
before start-up!
Wheel kit (fig. B + C)
To manually change the position of the plate compac-
tor, it can be equipped with the enclosed wheel kit.
Switch off the machine engine before attaching the
wheel kit. The machine engine must not be operated as
long as the machine is on the wheel kit. Before starting
the machine, remove the wheel kit!
• Position the wheel kit under the steering bar (8)
