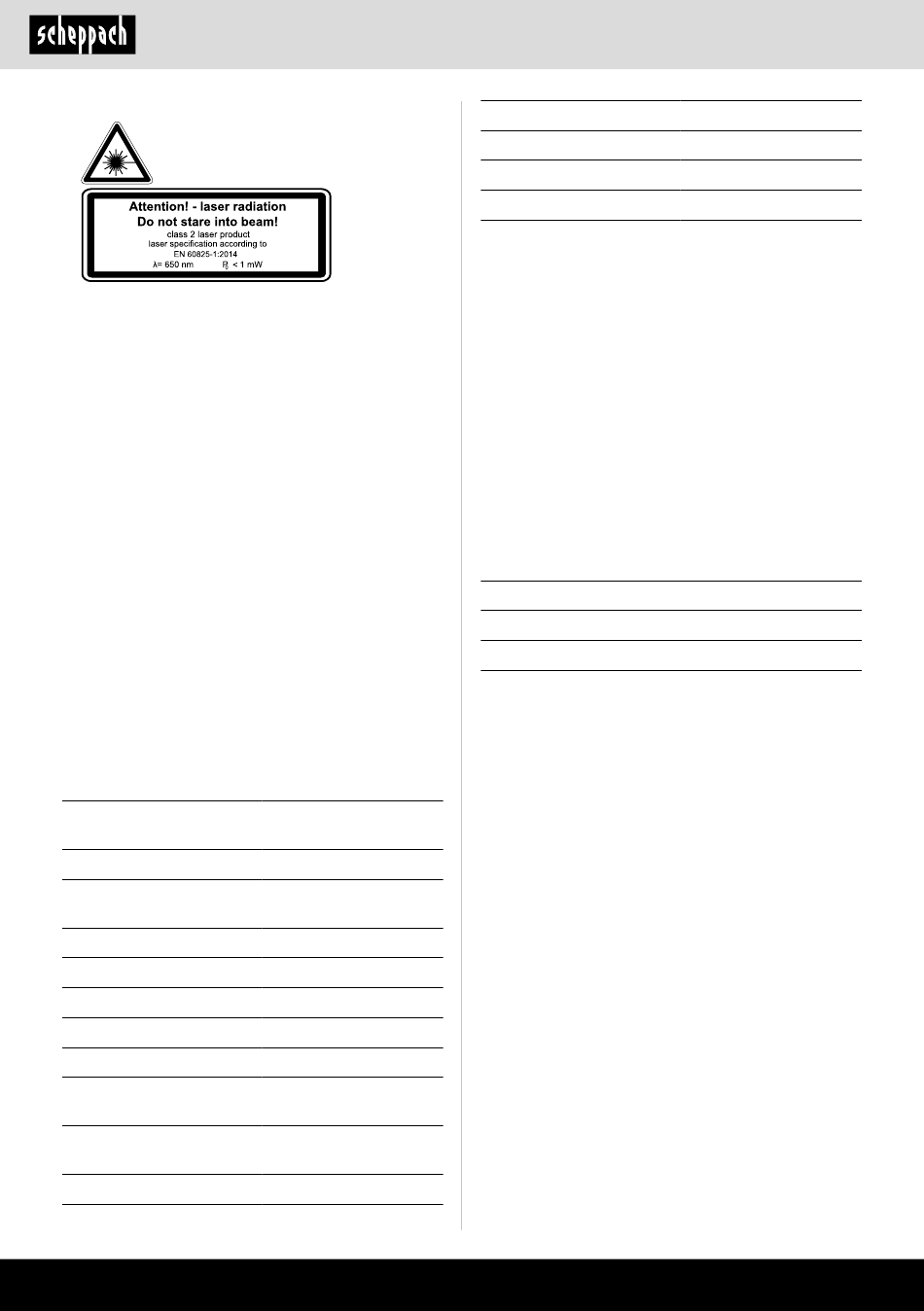

Attention: Laser radiation
Do not stare into the beam
Class 2 laser
Protect yourself and you environment from acci-
dents using suitable precautionary measures!
• Do not look directly into the laser beam with un-
protected eyes.
• Never look into the path of the beam.
• Never point the laser beam towards reflecting sur-
faces and persons or animals. Even a laser beam
with a low output can cause damage to the eyes.
• Caution - methods other than those specified here
can result in dangerous radiation exposure.
• Never open the laser module. Unexpected exposure
to the beam can occur.
• If the mitre saw is not used for an extended period
of time, the batteries should be removed.
• The laser may not be replaced with a different type
of laser.
• Repairs of the laser may only be carried out by the
laser manufacturer or an authorised representative.

6. Technical data

AC motor
Power
Idle speed n
0
Carbide saw blade
Number of teeth
Swivel range
Mitre cut
Saw width at 90°
Saw width at 45°
Saw width at 2 x 45° right
(double mitre cut)
Saw width at 2 x 45° left
(double mitre cut)
Protection class
30 | GB
220 - 240 V~ 50Hz
2000 Watt / S6 40%*
1800 Watt / S1
3800 min
-1
ø 305 x ø 30 x 3/2,8
mm
24/48
-45° / 0°/ +45°
0° bis 45° to the left
330 x 105 mm
230 x 60 mm
230 x 35 mm
230 x 60 mm
II
www.scheppach.com
Weight
Laser class
Wavelength of laser
Laser output
* S6, continuous operation periodic duty.
Identical duty cycles with a period at load fol-
lowed by a period at no load. Running time 5
minutes; duty cycle is 40% of the running time.
The work piece must have a minimum height of
3 mm and a minimum width of 10 mm. Make sure
that the workpiece is always secured with the
clamping device.
Noise and vibration
Total vibration values determined in accordance with
EN 62841.
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L
WA
Uncertainty K
WA
Wear hearing protection.
The effects of noise can cause a loss of hearing. Total
vibration values (vector sum - three directions) deter-
mined in accordance with EN 62841.
Residual risks
The machine has been built according to the state
of the art and the recognised technical safety re-
quirements. However, individual residual risks can
arise during operation.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Furthermore, despite all precautions having been met,
some non-obvious residual risks may still remain.
• Residual risks can be minimised if the „safety in-
structions" and the „Proper use" are observed along
with the whole of the operating instructions.
• Do not load the machine unnecessarily: excessive
pressure when sawing will quickly damage the saw
blade, which results in reduced output of the ma-
chine in the processing and in cut precision.
• When cutting plastic material, please always use
clamps: the parts which should be cut must always
be fixed between the clamps.
20,8 kg
2
650 nm
≤ 1 mW
95 dB(A)
3 dB
108 dB(A)
3 dB
