5.

Installation

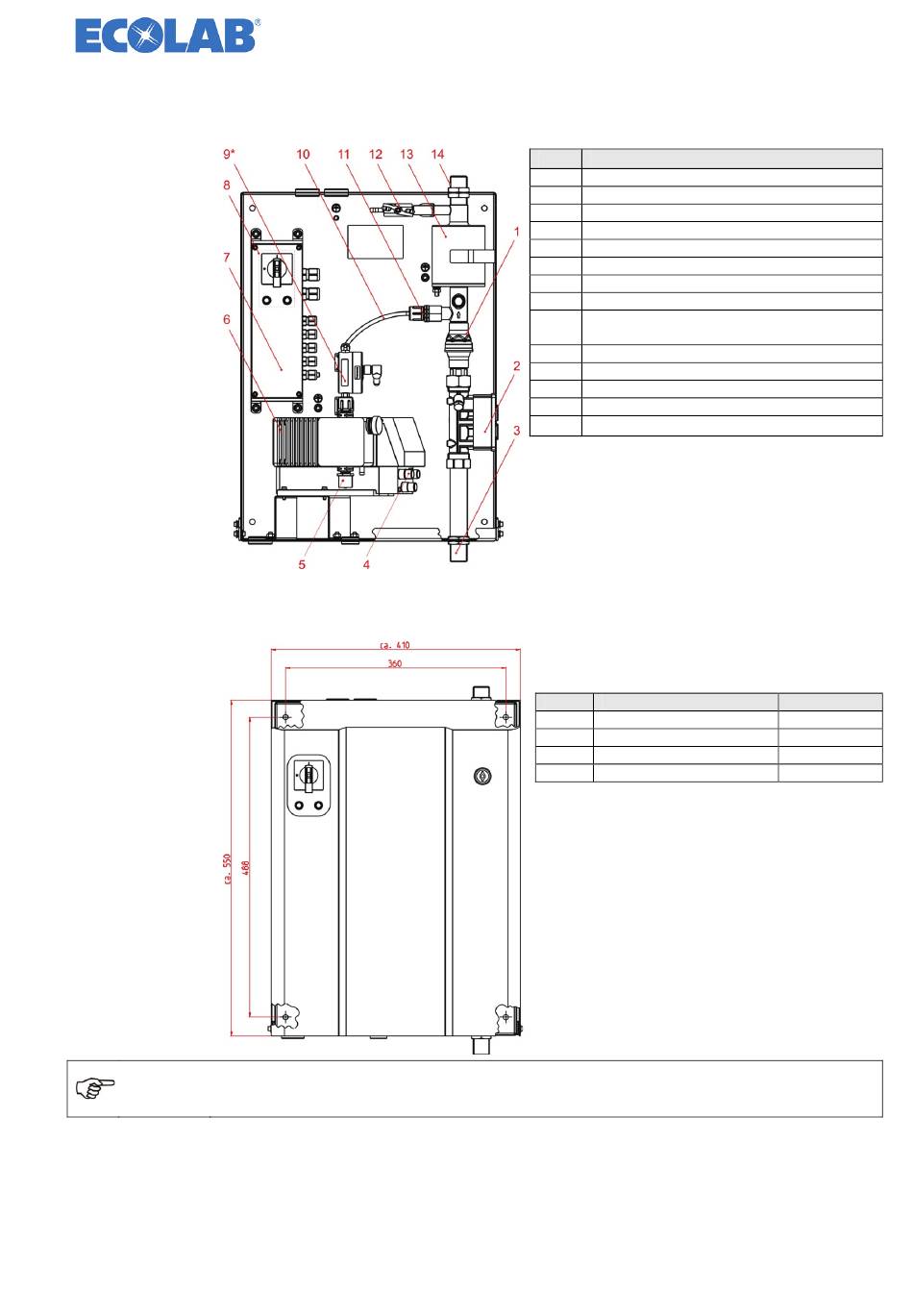

5.1 Overview of connection arrangement:
Fig. 5.1
5.2 Wall mounting:
Fig. 5.2
Take care to ensure ease of access for purposes of servicing!
NOTE
Install the metering station in the immediate vicinity of the storage facility
(canister, barrel, container or tank), to keep the suction line as short as possible.
417101637_Lub-O-Mat
Lub-O-Mat
Lub-O-Mat
Pos Description
1 Non-return valve
2 Flow sensor ̶ water
3 Fresh water connection
4 Connection for suction lance plug (3-pin)
5 Suction pipe or suction lance connection
6 EMP II E60 metering pump
7 Terminal box with fuse
8 Main switch and display elements
Flow meter (OGM Plus oval gear meter ) ̶
9*
belt lubricant concentrate
10 Metering line
11 Metering valve
12 Sampling
13 Mixing chamber
Consumer connection
14
* optional
The following parts are supplied for wall
mounting:
Qty Description
4 Wood screws, 8 x 60 mm
4 Dowel pinx
4 Distance roll
4 Washer
These parts are available in full in a kit
bearing article number 283575.
- 34 -
Artcle no.
413110926
417200005
386313-02
413500363
Rev. 03-07.12
