The axis operation page and the group operation page are basically identical. The only significant difference
is that:
On the axis operation page, only two wheel grippers/wheels are displayed.
On the group operation page, all wheel grippers/wheels of the system are displayed. Also, the number of
columns displayed corresponds to the number of columns that can be operated.
Example of axle operating mode:
ü If the mode selector switch is set to 1, the current wheel gripper can be operated alone
ü If the mode selector switch is set to 2, the current wheel gripper and the opposite wheel gripper can be
operated
ü If the mode selector switch is set to ALL, only the current and the opposite wheel gripper can still be
operated
Example of group operation page:
ü If the mode selector switch is set to 1, the current wheel gripper can be operated alone
ü If the mode selector switch is set to 2, the current wheel gripper and the opposite wheel gripper can be
operated.
ü If the mode selector is set to ALL, ALL wheel grippers can be operated.

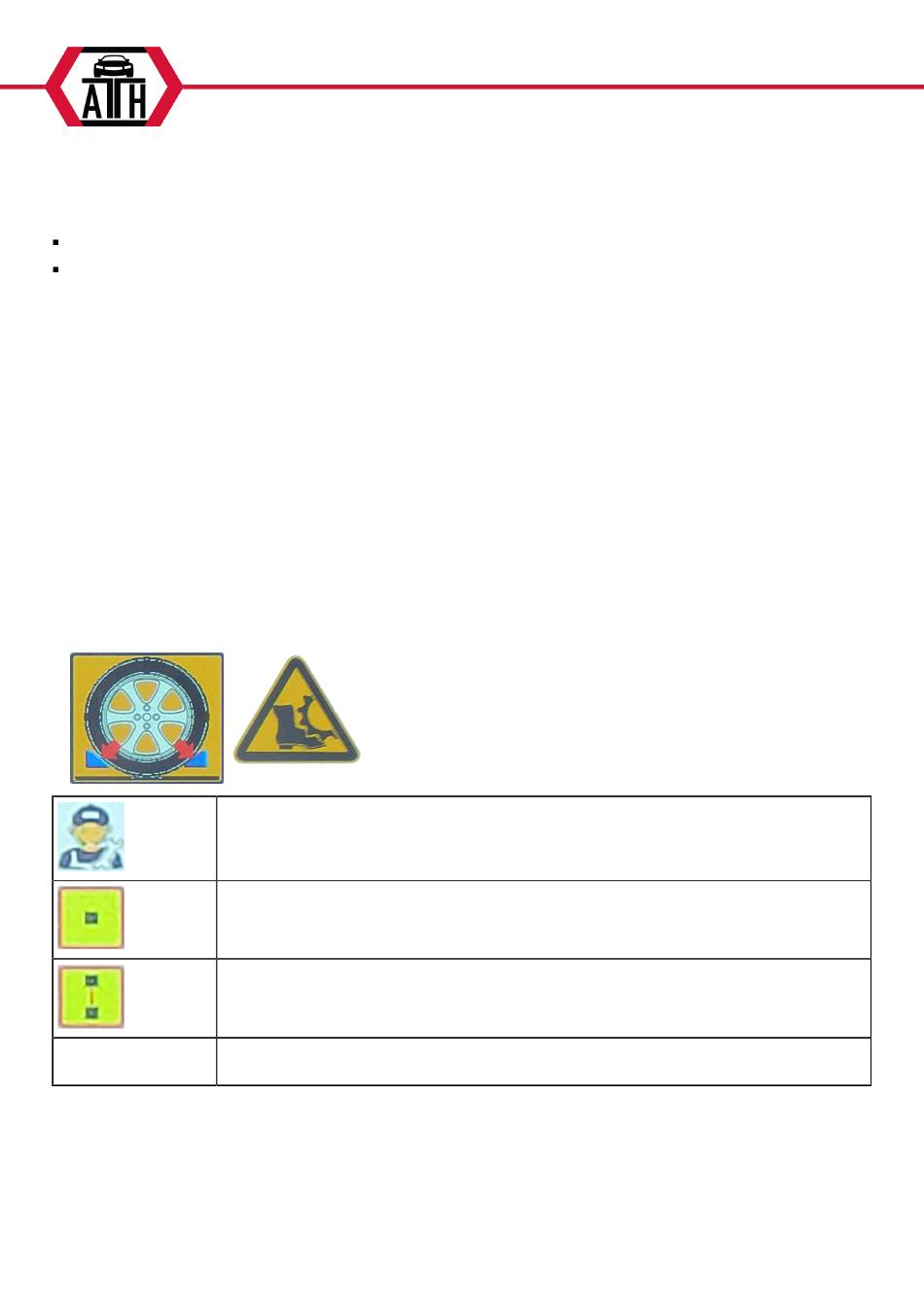

If the lift fork is raised or lowered to slightly more than 100mm, a warning will appear asking you to
check that the wheel is raised correctly before operating.
This wheel gripper is now operated directly
The mode selector switch of this wheel gripper is set to 1
The mode selector switch of this wheel gripper is set to 2.
If no symbol is displayed, the mode selector switch of the wheel gripper is set to
ALL.
