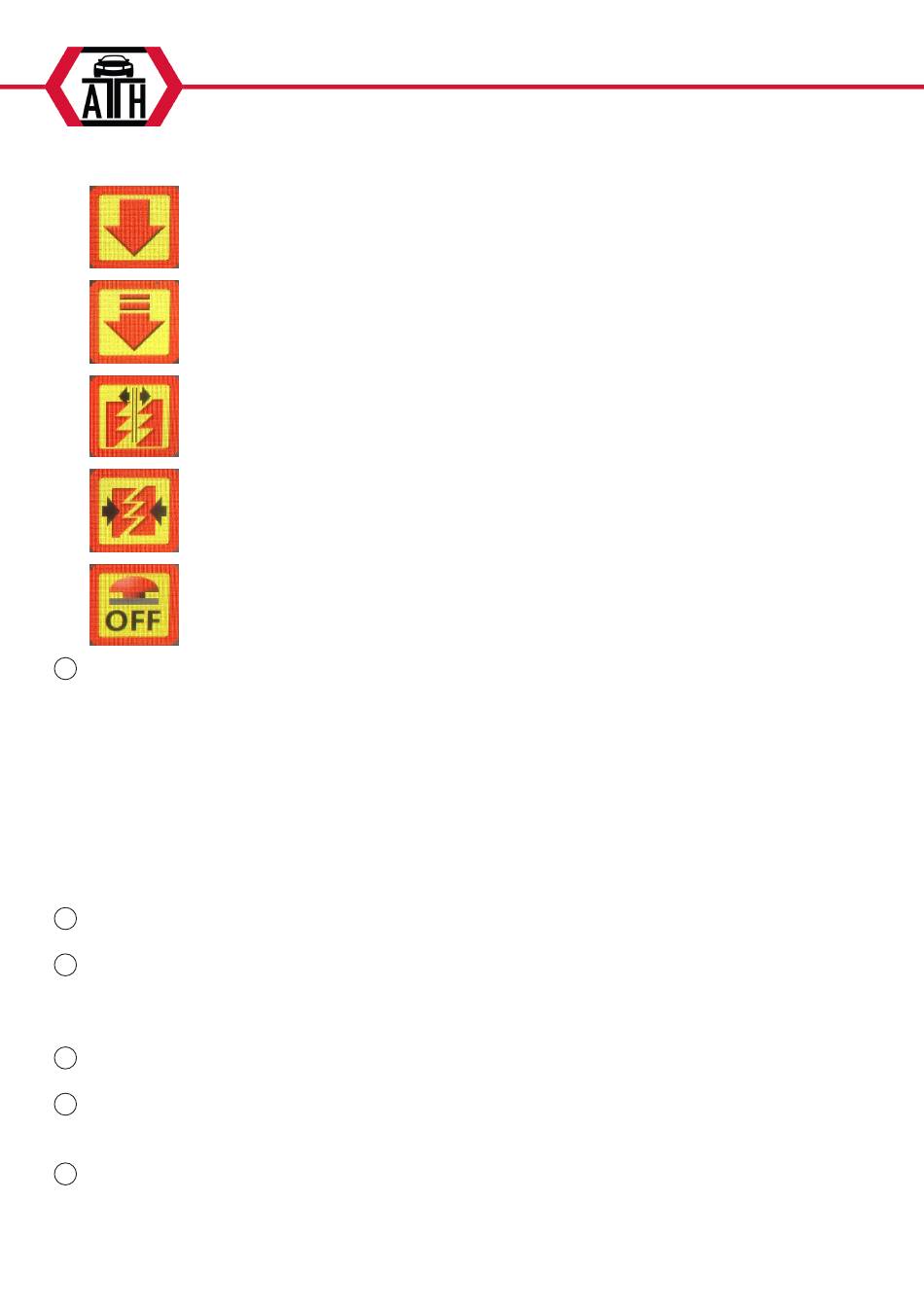

Lowering
Slow lowering
Lowering to next detent
Detent position
Emergency stop activated
Identification
5
The identification must be set correctly on all wheel grippers before any movement of the wheel grippers is performed.
Check that the setting of all columns is correct before starting up the system.
FL - Front Left: This is the left wheel gripper in the 1st row of the whole system.
FR - Front Right: this is the right wheel gripper in the 1st row of the whole system
R1L - Rear 1 Left: This is the left wheel gripper in the 2nd row of the whole system
R1L - Rear 1 Right: This is the right wheel gripper in the 2nd row of the whole system
R2L - Rear 2 Left: This is the left wheel gripper in the 3rd row of the whole system
...
R7L - Rear 7 Left: this is the left wheel gripper in the 8th row of the whole system
R7R - Rear 7 Right: This is the right wheel gripper in the 8th row of the whole system...
Mode selector switch - display
6
It shows the currently selected mode of the wheel gripper
Settings
7
Press this button to enter the settings page.
This key is only displayed on the home page.
Pressing the function key at the bottom has the same function as touching this key on the display
Selecting the working mode
8
If the operating page is called up with this key, the selection page appears and it is possible to work in mode 2 or group
Installation
9
Press this key to enter the setting page .
This key is only displayed on the home page
Single column mode
10
Displayed only on the home page
If the operation page is called up via this key, the wheel gripper can only operate in single mode
