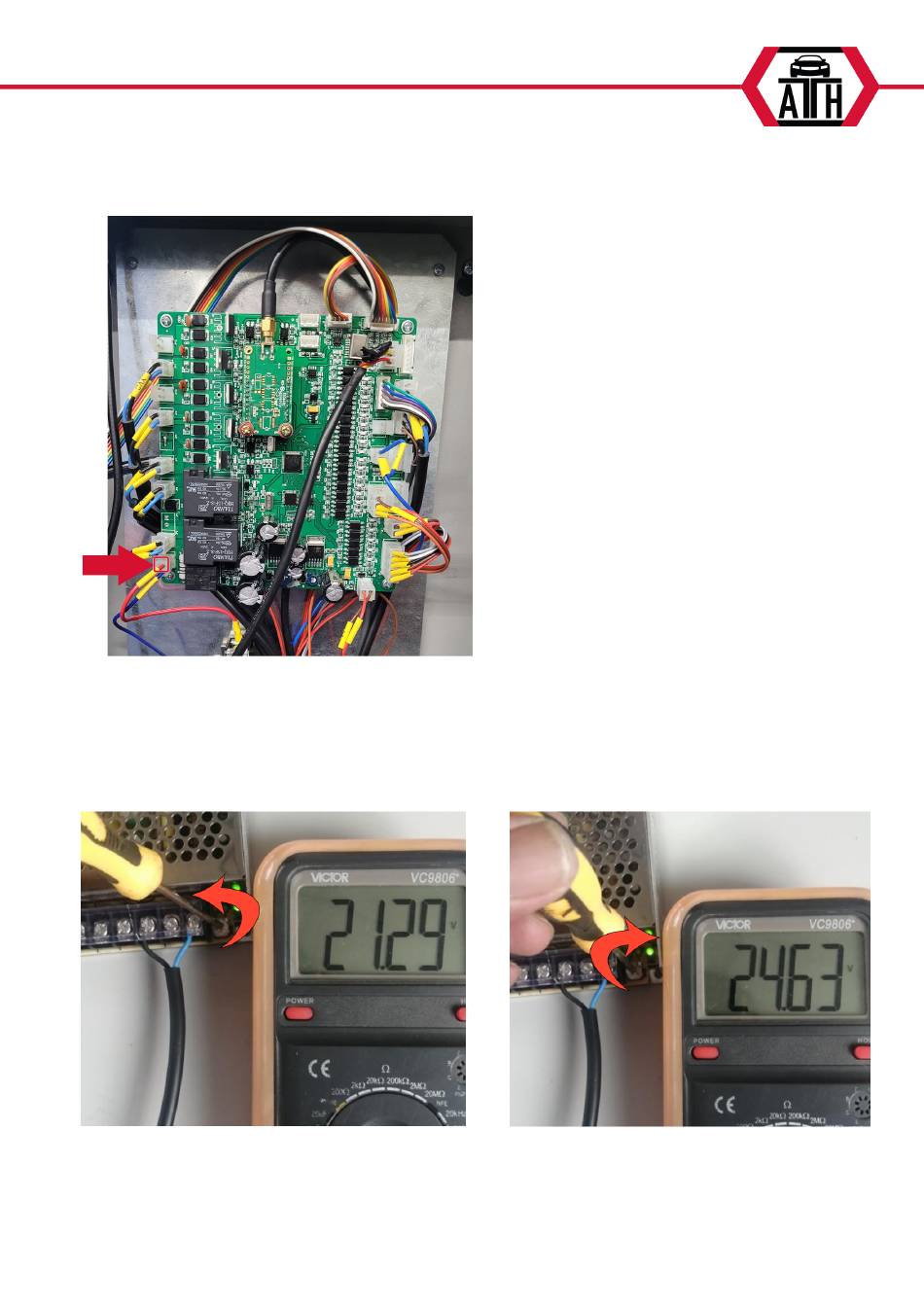

2. Disconnect the plug of the power supply unit
3. Connect the plug (marked blue) of the device sent to you in the same place.
4. Connect the cable (marked red) to a power source.
5. Now go to the battery calibration page on the wheel gripper display.
6. Adjust the screw on the device to set the output voltage of the device. A voltage meter is also required
in the next steps.
7. Set the voltage to about 21 V and wait 10 seconds until the output is stable, then press the Min button
on the display
8. Wait 10 seconds for the system to successfully save the setting.
